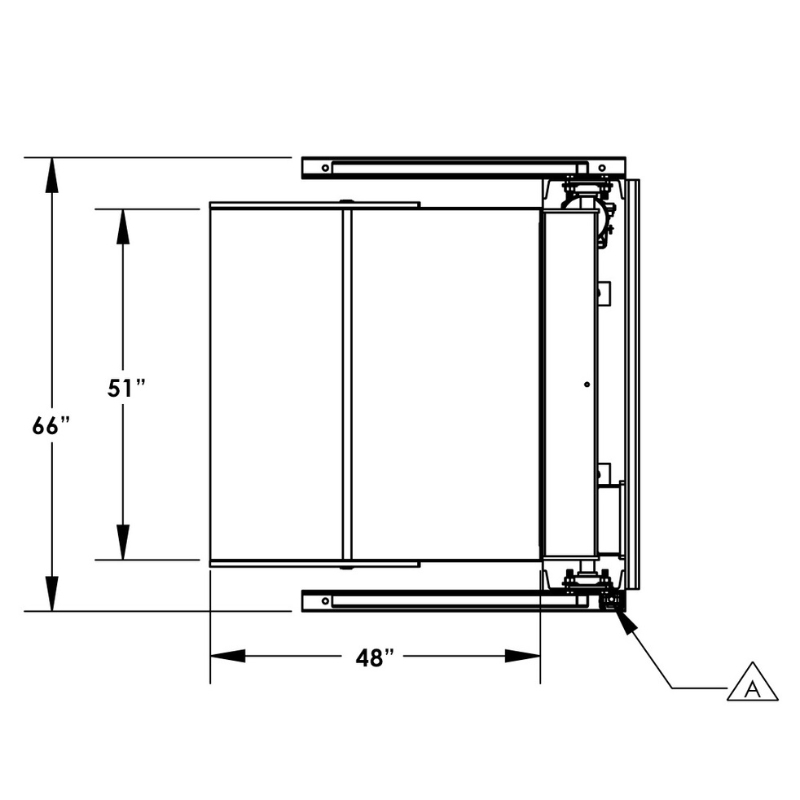

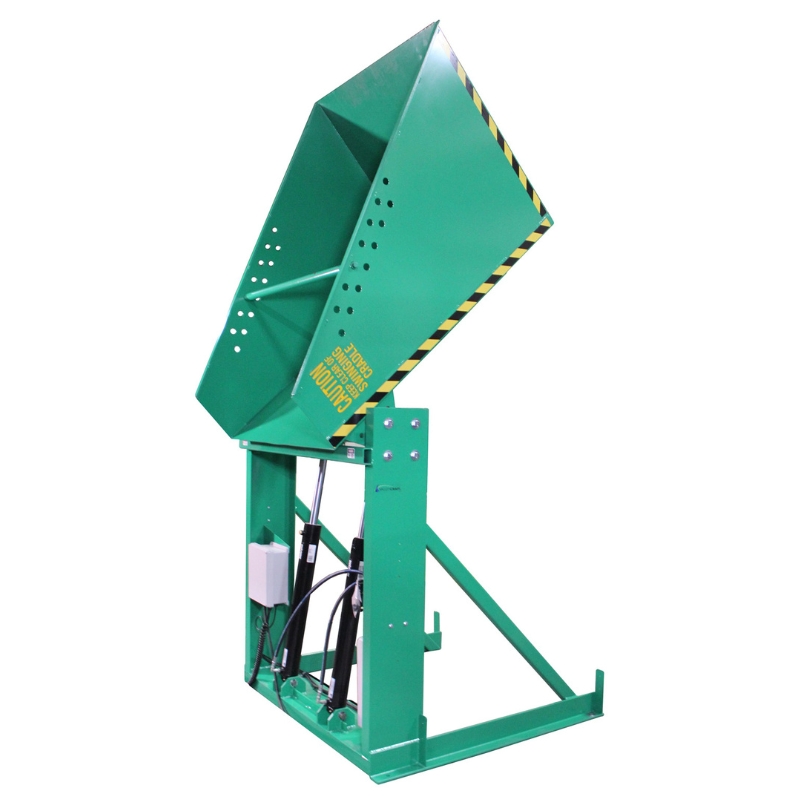

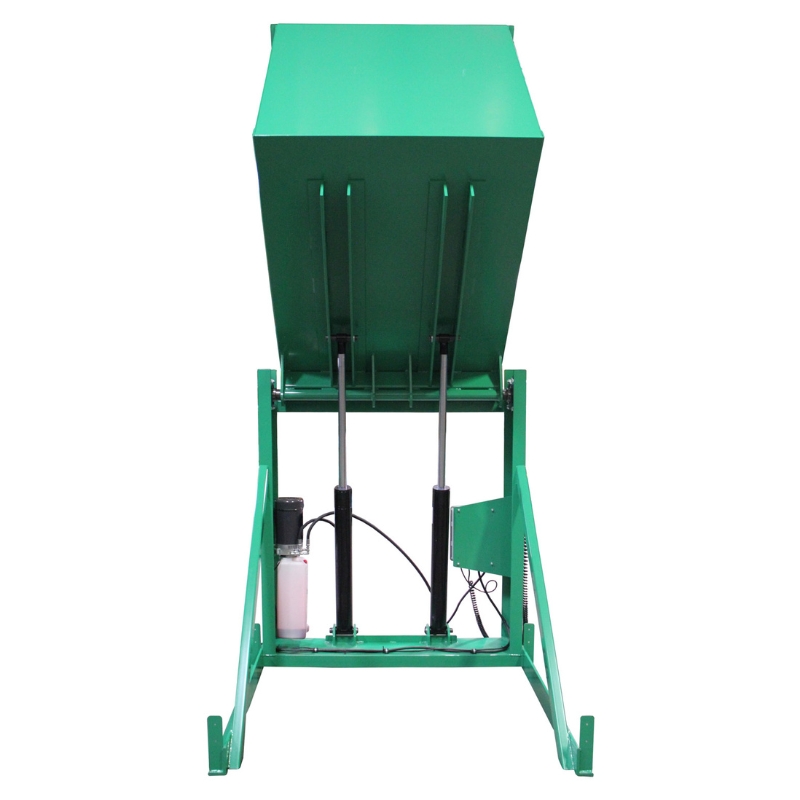

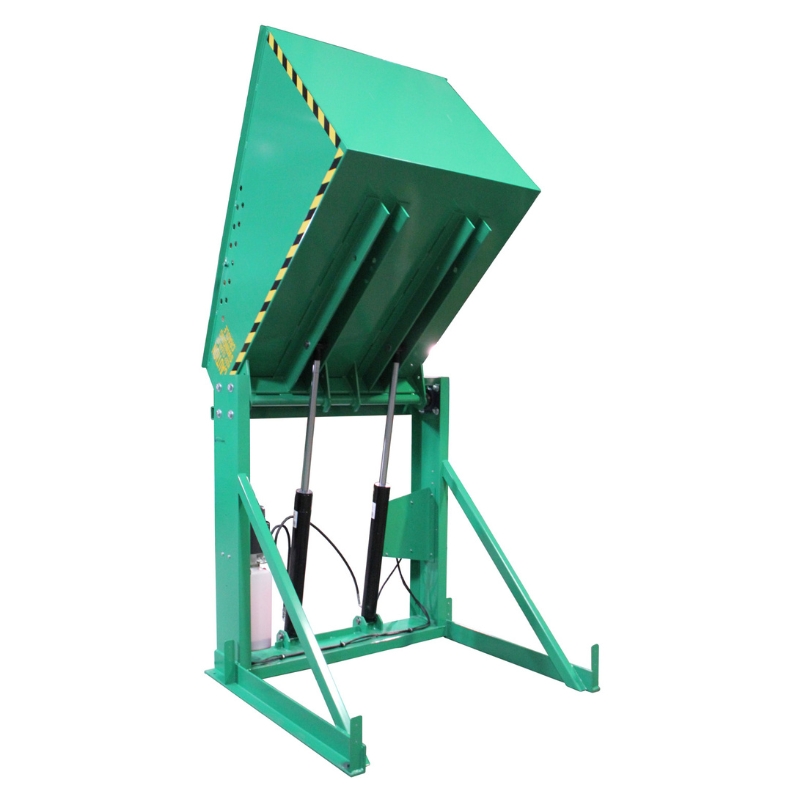

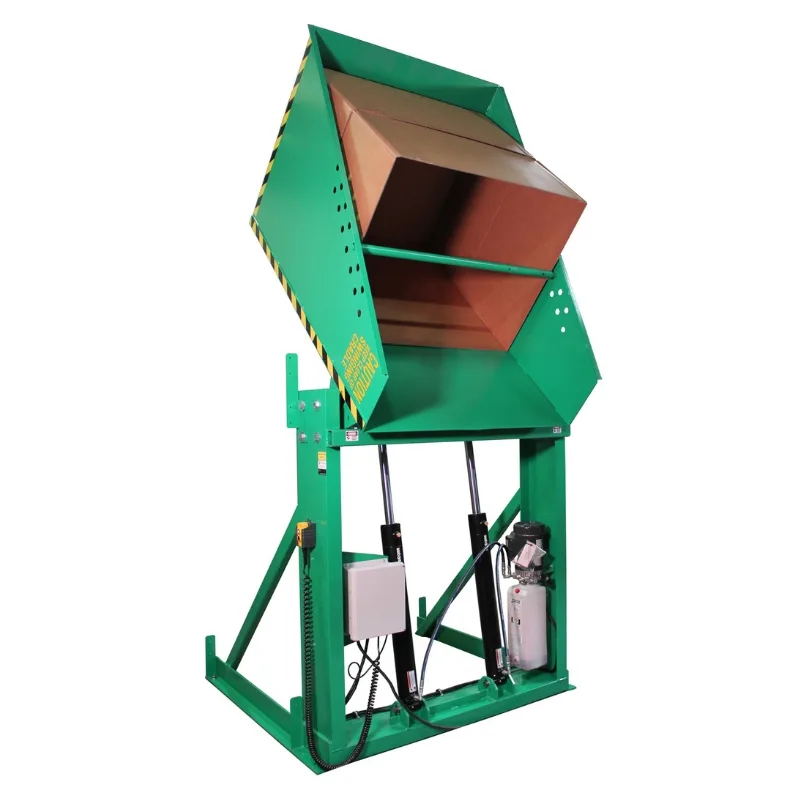

Valley Craft’s (F89019) Box Dumper handles up to 6,000 lbs. with a 48″ dump height and 51″ x 48″ chute for use with tubs, cartons, and crates. It’s easy to load by pallet jack or hand, and operates smoothly with a 230V motor and handheld pendant. Built from heavy-duty steel and fully assembled for immediate use.

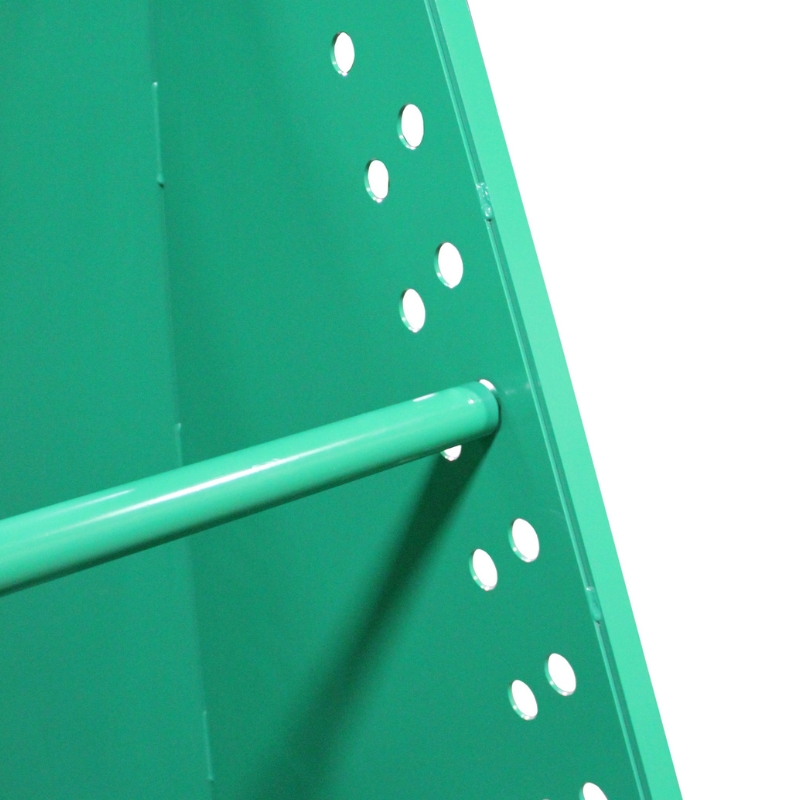

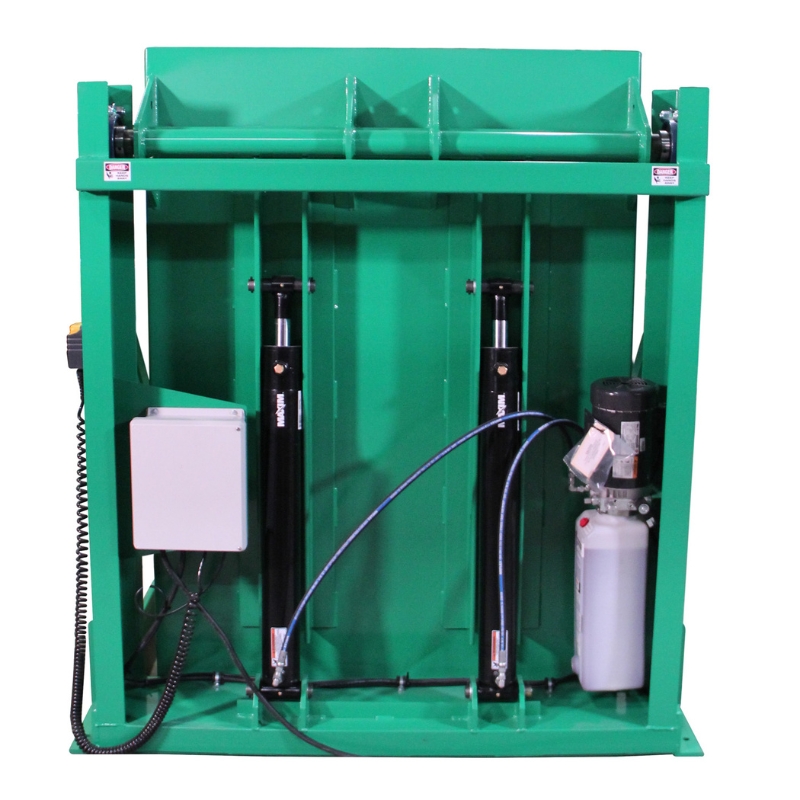

The Valley Craft (F89019) Box Dumper (230V) is a reliable way to safely unload heavy materials while improving workflow and reducing strain. It’s built with a 6,000 lb. capacity, 48″ dump height, and a roomy 51″ x 48″ chute that works with crates, gaylords, tubs, and more. The spring-loaded hold down bar adjusts in 2″ increments to fit container heights from 30″ to 56″, keeping everything secure during operation. A 2HP motor powers the dump cycle in under 60 seconds, and the handheld pendant gives operators easy start/stop control with gravity return. Made from 7-gauge steel with a green powder coat finish, it’s built for long-term durability. Pre-drilled holes allow for floor mounting, and each unit ships fully assembled and ready to go.
