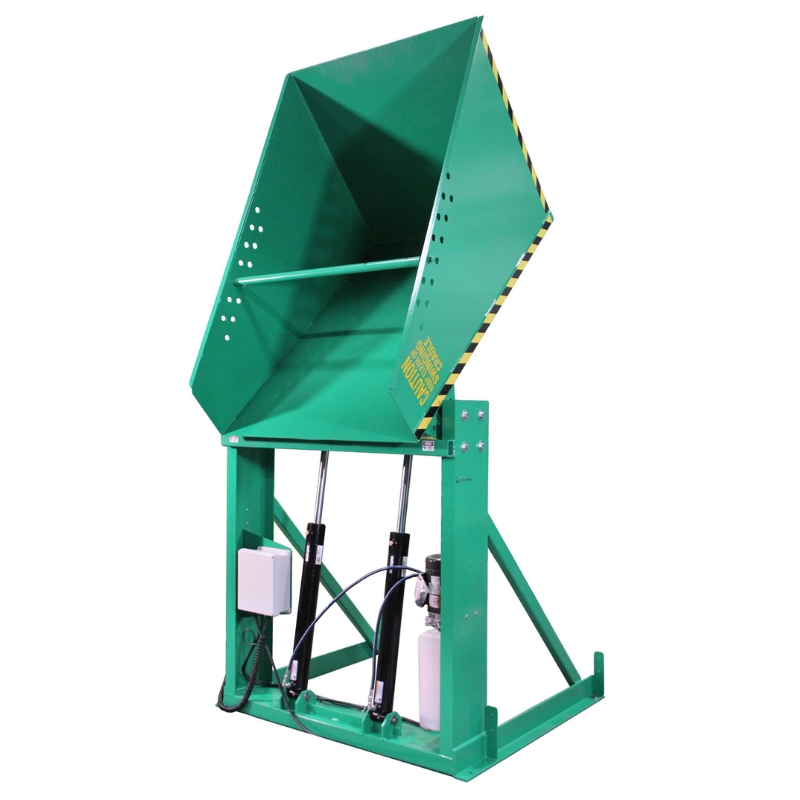

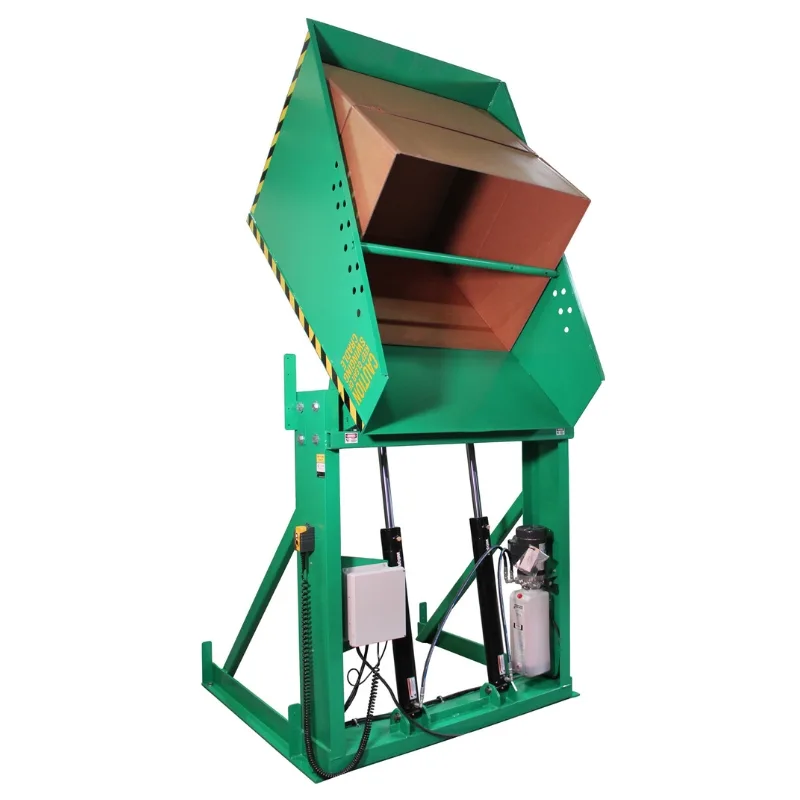

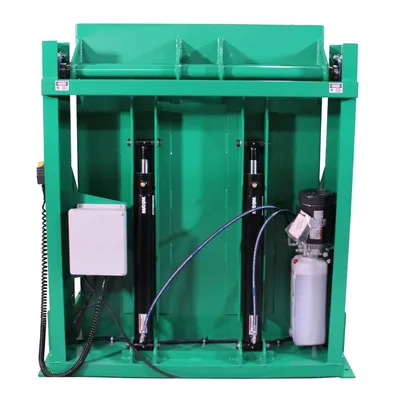

Valley Craft’s F89016 Box Dumper (230V) is designed to improve productivity and safety when handling heavy loads in industrial settings. Built with a 6,000 lb. capacity and a 60″ dump height, it features a wide 51″ x 48″ chute suitable for containers like gaylords, crates, and tubs. A spring-loaded hold-down bar secures containers between 30″ and 56″ tall, adjusting in 2″ increments. The 12″ elevated chute allows for easy hand loading or use with a pallet jack, eliminating the need for a forklift. The powered dump cycle, operated via a 20′ pigtailed corded pendant with magnetic backing, completes in less than 60 seconds and returns by gravity. A dual-flow hydraulic valve ensures smooth, balanced motion and extended component life. The F89016 is built from 7-gauge steel, finished in a durable green powder coat, and includes predrilled floor-mount holes. Compatible with side guards (sold separately), this unit ships fully assembled and ready to use.
Box Dumper F89016, 6,000 lb. Capacity
Valley Craft’s F89016 Box Dumper delivers 6,000 lb. capacity and 60″ dump height to safely and efficiently handle containers with minimal manual effort. Featuring a 51″ x 48″ chute and 230V operation, it’s controlled by a handheld pendant and completes cycles in under 60 seconds. Built tough for long-term use and ideal for improving workflow in material handling operations.
$12,395.00
Product Specifications
| Weight | 2000 lbs |
|---|---|
| Shipping Dimensions | 66 × 51 × 87 in |
| Dimensions (in.) | 66″W x 63″D x 72″H |
| Weight (lbs.) | 1975 lbs. |
| Load Capacity (lbs.) | 6000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 51″W x 48″D |
| Frame Height (in.) | 68″ |
| Chute Height (in.) | 72″ |
| Chute Reach (in.) | 5″ |
| Dump Height (in.) | 60″ |
| Overhead Clearance (in.) | 146″ |
| Horizontal Clearance (in.) | 91″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 230 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Brand | Valley Craft |
