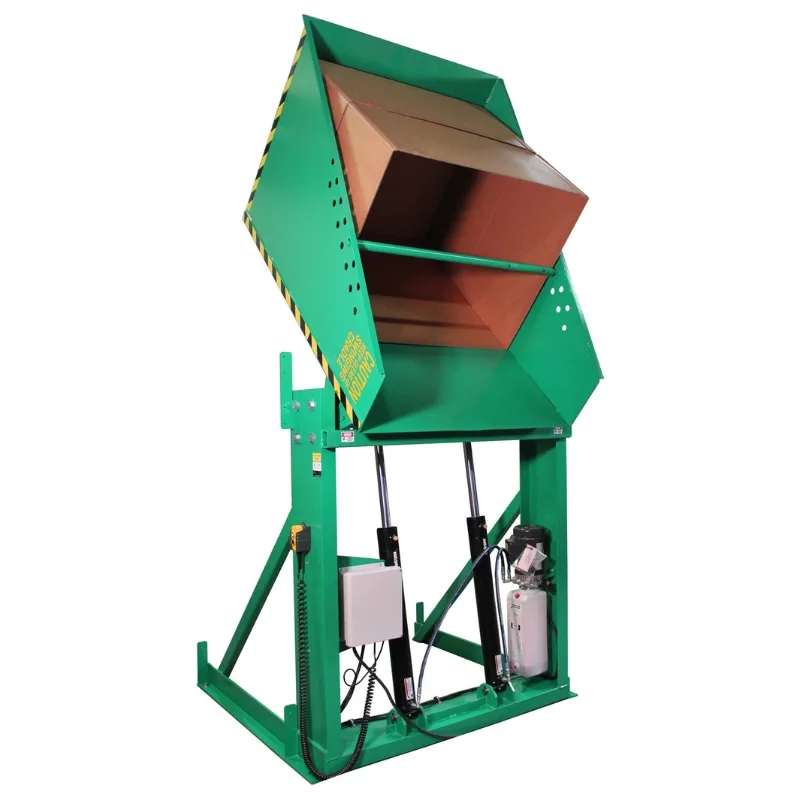

The Valley Craft Box Dumper (F80181A1) features a 51 x 48 inch chute, 48 inch dump height, and 2,000 lb. capacity for unloading containers efficiently. It includes a spring-loaded hold down bar, pendant control, and single flow hydraulic valve for safe, consistent operation. Built from 7 gauge steel with a green powder coat finish. Made in the USA and ships fully assembled.
$8,595.00
| Weight | 1226 lbs |
|---|---|
| Shipping Dimensions | 67 × 66 × 75 in |
| Dimensions (in.) | 66″W x 63″D x 72″H |
| Weight (lbs.) | 1590 lbs. |
| Load Capacity (lbs.) | 2000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 51″W x 48″D |
| Frame Height (in.) | 59″ |
| Chute Height (in.) | 72″ |
| Chute Reach (in.) | 10″ |
| Dump Height (in.) | 48″ |
| Overhead Clearance (in.) | 134″ |
| Horizontal Clearance (in.) | 86″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 460 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Lead Time | 20 Days |
| Brand | Valley Craft |
Valley Craft’s Box Dumper (F80181A1) is built for efficient material handling and dependable performance in industrial settings. With a 51 x 48 inch chute and a 48 inch dump height, it handles a variety of containers including gaylords, crates, tubs, and cartons. The spring-loaded hold down bar adjusts in 2-inch increments and secures containers from 30 to 56 inches tall. A single flow hydraulic system powered by a 460V, 3-phase, 2HP motor ensures smooth, controlled dumping with minimal strain on the equipment. This unit is made in the USA, shipped fully assembled, and constructed from heavy-duty 7 gauge steel with a durable green powder coat finish.
