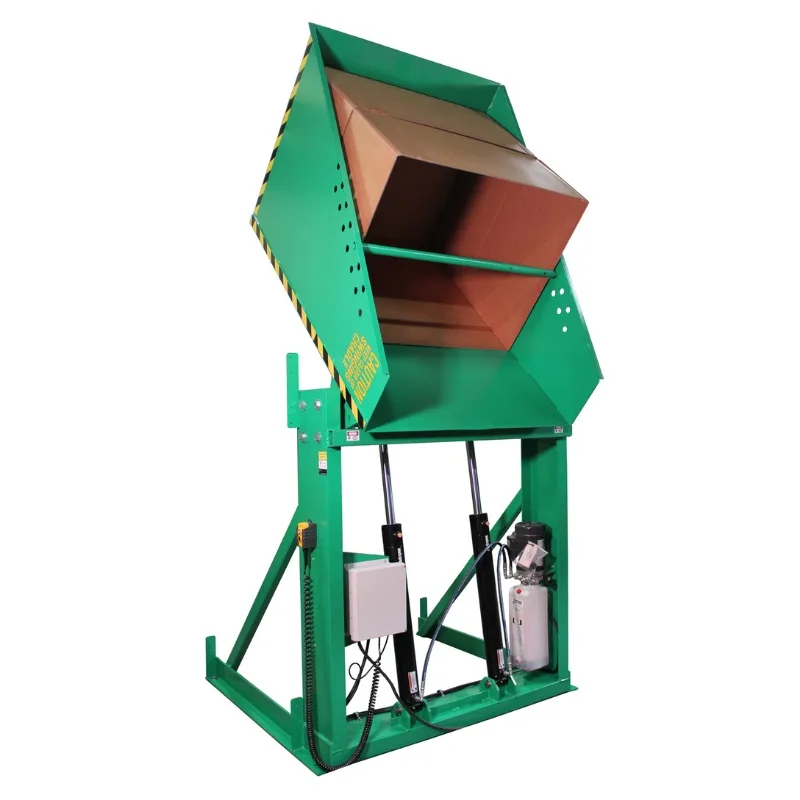

The Valley Craft Box Dumper (F89036) includes a 36 x 36 inch chute, 36 inch dump height, and a 2,000 lb. capacity for efficient container unloading. It features a spring-loaded hold down bar and pendant-operated hydraulic system. Built from 7 gauge steel with a green powder coat finish. Made in the USA and ships fully assembled.
$8,890.00
| Weight | 1226 lbs |
|---|---|
| Shipping Dimensions | 54 × 51 × 69 in |
| Dimensions (in.) | 51″W x 50″D x 66″H |
| Weight (lbs.) | 1210 lbs. |
| Load Capacity (lbs.) | 2000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 36″W x 36″D |
| Frame Height (in.) | 50″ |
| Chute Height (in.) | 66″ |
| Chute Reach (in.) | 12-1/2″ |
| Dump Height (in.) | 36 |
| Overhead Clearance (in.) | 110″ |
| Horizontal Clearance (in.) | 71″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 230 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Lead Time | 20 Days |
| Brand | Valley Craft |
Valley Craft’s Box Dumper (F89036) is built for reliable performance in demanding material handling environments. It features a 36 x 36 inch chute, 36 inch dump height, and a 2,000 lb. load capacity, making it ideal for use with crates, tubs, cartons, and gaylords. The unit includes a spring-loaded hold down bar adjustable in 2-inch increments and supports container heights from 30 to 56 inches. Its single flow hydraulic control system delivers consistent, smooth operation powered by a 3-phase, 230V, 2HP motor. Made in the USA and shipped fully assembled with a heavy-duty steel frame and powder coat finish.
