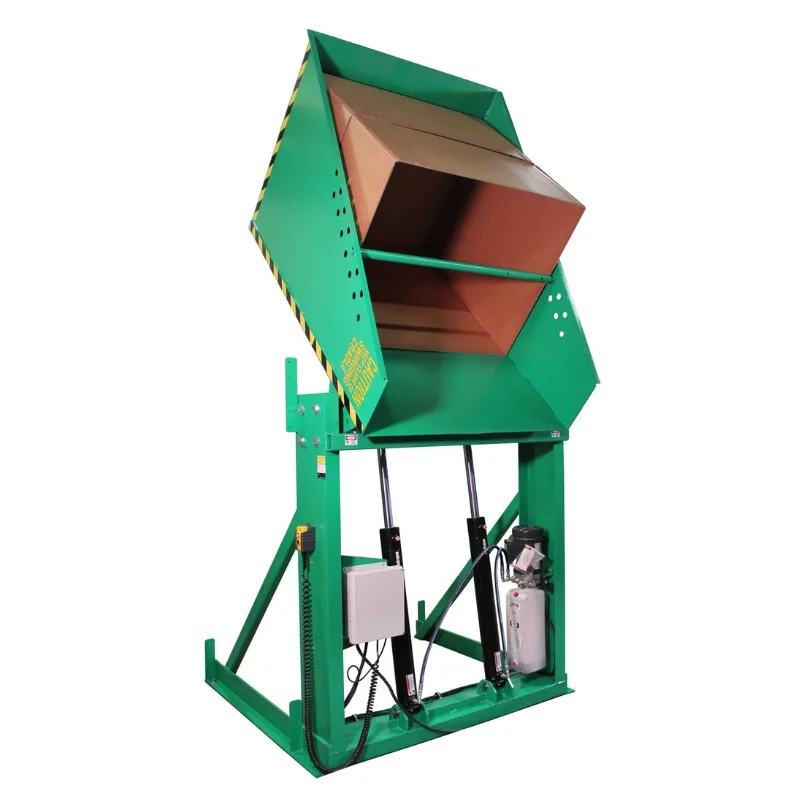

Valley Craft Box Dumper (F89018) features a 230V motor, 60″ dump height, and 2,000 lb. capacity. The 51 x 48″ chute and hold down bar handle various container sizes with ease. Built from durable steel and ships fully assembled, made in the U.S.A.
Drum Handling Equipment
Valley Craft Box Dumper (F89018) features a 230V motor, 60″ dump height, and 2,000 lb. capacity. The 51 x 48″ chute and hold down bar handle various container sizes with ease. Built from durable steel and ships fully assembled, made in the U.S.A.
$9,640.00

| Weight | 1668 lbs |
|---|---|
| Shipping Dimensions | 67 × 66 × 75 in |
| Dimensions (in.) | 66″W x 63″D x 72″H |
| Weight (lbs.) | 1665 lbs. |
| Load Capacity (lbs.) | 2000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 51″W x 48″D |
| Frame Height (in.) | 66″ |
| Chute Height (in.) | 72″ |
| Chute Reach (in.) | 5″ |
| Dump Height (in.) | 60″ |
| Overhead Clearance (in.) | 146″ |
| Horizontal Clearance (in.) | 91″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 230 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Lead Time | 20 Days |
| Brand | Valley Craft |
Valley Craft’s Box Dumper (F89018) is built to safely and efficiently dump heavy loads with minimal effort. It features a 230V motor, 2,000 lb. capacity, and a 60″ dump height to handle a wide range of containers. The 51 x 48″ chute accommodates large tubs and gaylords, while the adjustable hold down bar keeps everything secure. A handheld pendant controls the smooth hydraulic lift, and the unit can be bolted to the floor for added safety. Made from 7 gauge steel and powder coated green, it ships fully assembled and made in the U.S.A.
