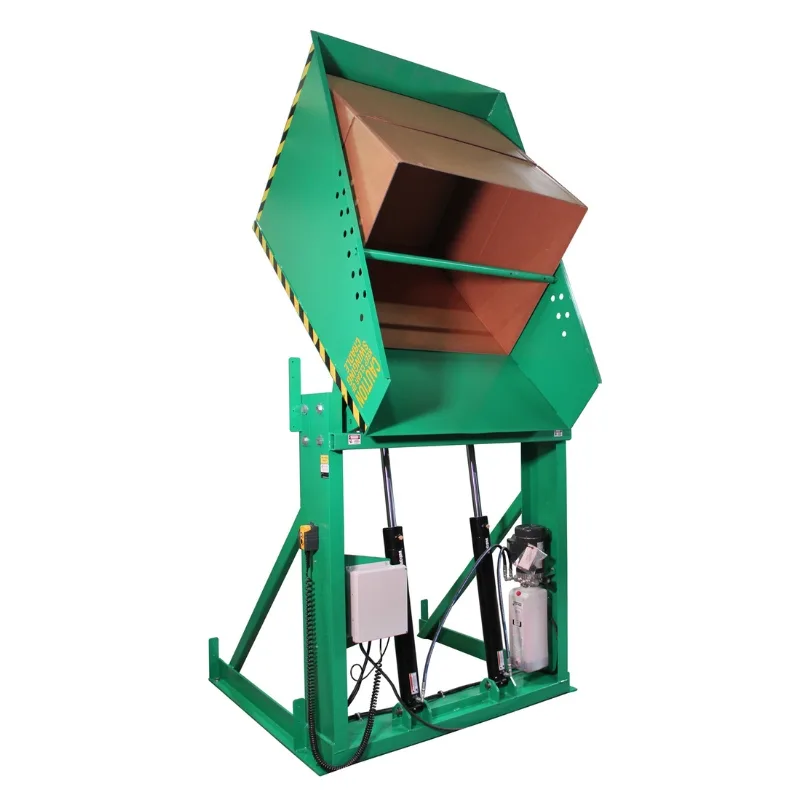

This Valley Craft Box Dumper (F80193A3) features a 36 x 36” chute, 36” dump height, and 2,000 lb. capacity for efficient container dumping. It includes a spring-loaded hold-down bar, gravity return, and a 30-second powered dump cycle. The unit is built from 7-gauge steel and can be bolted to the floor for added safety. Operates on 460V 3-phase power and is shipped fully assembled and made in the U.S.A.

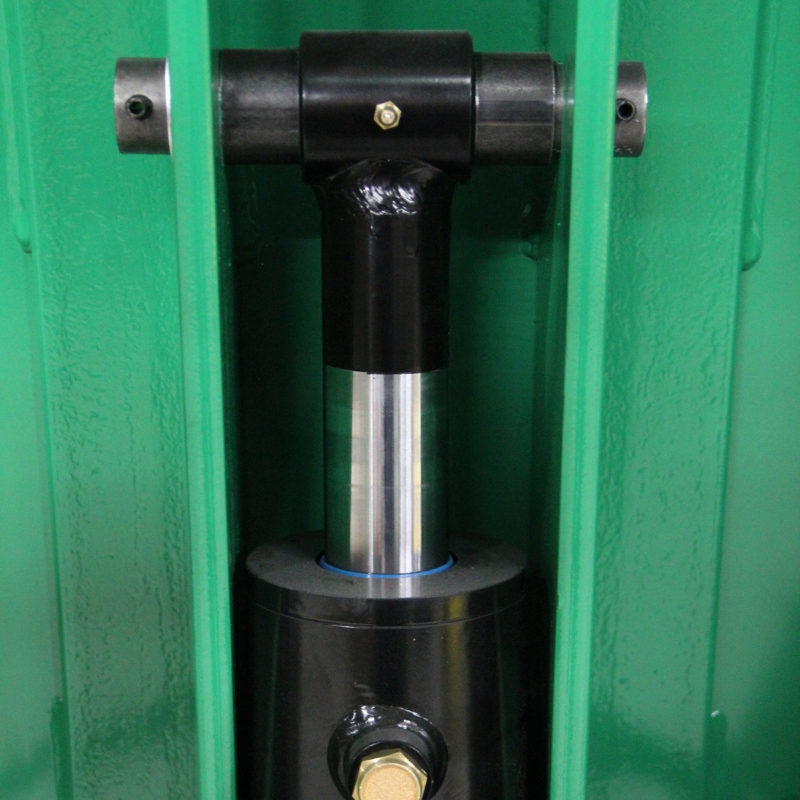

Valley Craft’s Box Dumper (460V, 36 x 36” chute, 2,000 lb. capacity, 36” dump height) is designed to safely and efficiently dump a wide range of container types including gaylords, tubs, totes, and crates. Its compact chute accommodates containers up to 36”W x 36”D, and the spring-loaded hold-down bar adjusts to fit heights from 30” to 56”. The heavy-duty 7-gauge steel construction is built for rugged use, with a smooth hydraulic dump cycle powered by a 460V, 2HP motor. Operators can load containers manually or by pallet jack and run the cycle using a corded pendant with magnetic backing. Units ship fully assembled, come finished in green powder coat, and are proudly made in the U.S.A.
