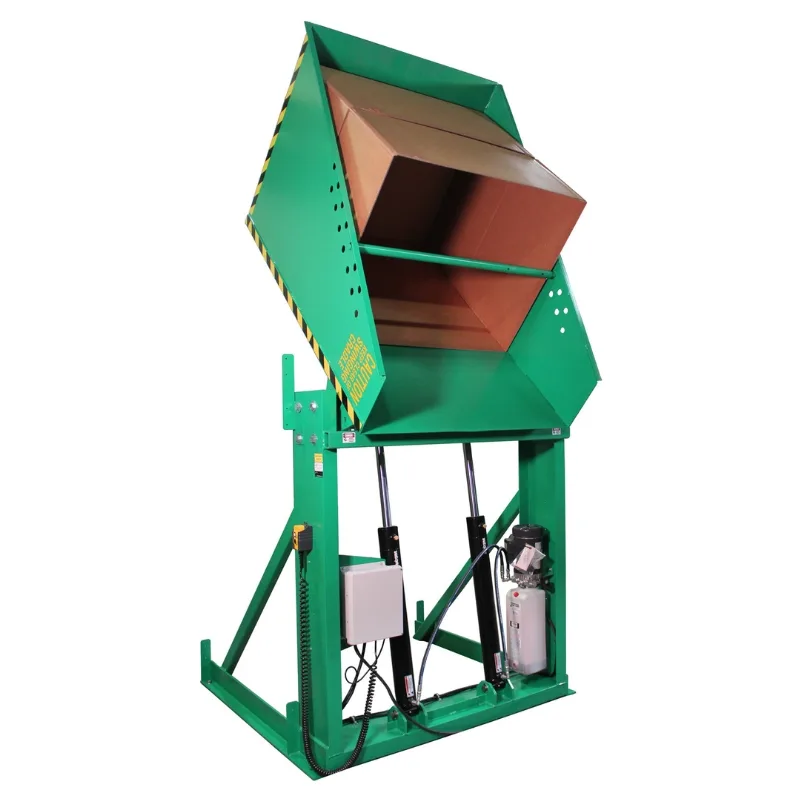

Valley Craft’s Box Dumper (F80192A2) is built for efficient, high-capacity dumping with a 36″ x 36″ chute, 36″ dump height, and 4,000 lb. capacity, powered by a 460V motor and operated via a magnetic handheld pendant; it includes a spring-loaded hold down bar, heavy-duty 7-gauge steel frame, and predrilled mounting holes for added safety and stability.
$9,745.00
| Weight | 1500 lbs |
|---|---|
| Shipping Dimensions | 66 × 51 × 69 in |
| Dimensions (in.) | 51″W x 62″D x 66″H |
| Weight (lbs.) | 1515 lbs. |
| Load Capacity (lbs.) | 4000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 36″W x 36″D |
| Frame Height (in.) | 52″ |
| Chute Height (in.) | 66″ |
| Chute Reach (in.) | 12-1/2″ |
| Dump Height (in.) | 36 |
| Overhead Clearance (in.) | 110″ |
| Horizontal Clearance (in.) | 71″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 460 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Lead Time | 20 Days |
| Brand | Valley Craft |
Valley Craft’s Box Dumper (F80192A2) makes it easy to unload heavy containers while cutting down on strain and improving productivity. Designed for containers up to 36” x 36” and loads up to 4,000 lbs., this rugged unit features a 36” dump height and adjustable hold-down bar to secure container heights from 30″ to 56″. The 460V, 2HP motor drives a 60-second powered dump cycle, controlled by a magnetic-backed handheld pendant. Built from 7-gauge steel with dual flow hydraulics, it ensures smooth operation and long-lasting performance. Floor-mounting holes and safety decals are included for added protection. Ships fully assembled and powder coated in green.
