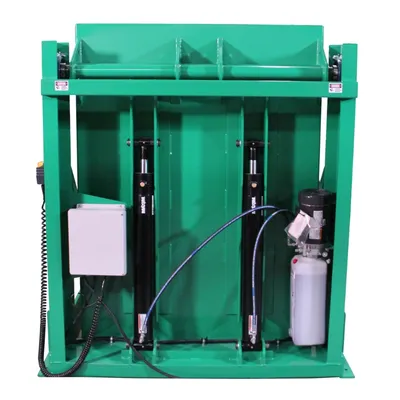

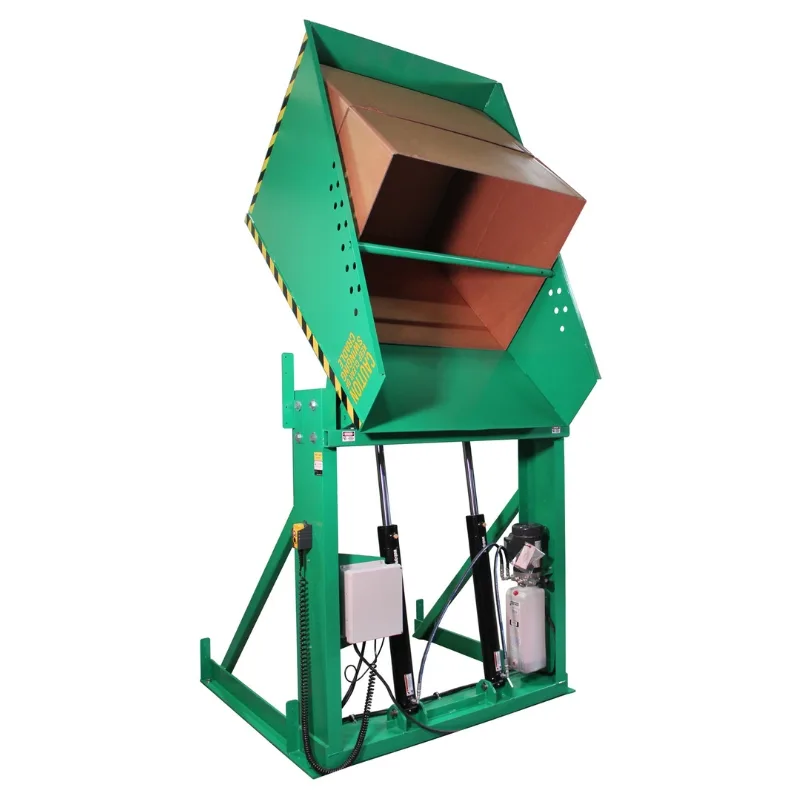

The Valley Craft F89013 Box Dumper runs on 230V and offers an easy, efficient way to handle heavy container dumping. With a 6,000 lb. capacity and a 72-inch dump height, it works with a variety of containers like gaylords, crates, tubs, and cartons. The 51″ x 48″ chute fits most standard container sizes and features a spring-loaded hold-down bar that adjusts to keep everything secure. A 20-foot corded pendant gives the operator full control over the powered dump cycle, which completes in under a minute and includes a gravity return. Made from rugged 7-gauge steel and built with a dual-flow hydraulic control system, the F89013 ensures smooth, reliable performance every time. Floor mounting holes provide added stability, and the tough green powder coat finish helps it stand up to years of use. Shipped fully assembled and built in the USA.
Box Dumper F89013, 6,000 lb. Capacity
The Valley Craft F89013 box dumper makes it easy to unload heavy containers with less strain and more control. Designed with a 72-inch dump height and a 51″ x 48″ chute, it supports up to 6,000 lbs. and works well with gaylords, crates, tubs, and more. The adjustable hold-down bar keeps loads secure during operation, while the dual-flow hydraulic system provides smooth, balanced dumping. This 230V unit arrives fully assembled and ready to use, built for long-term performance in demanding environments.
$12,890.00

Product Specifications
| Weight | 2275 lbs |
|---|---|
| Shipping Dimensions | 66 × 66 × 87 in |
| Dimensions (in.) | 66″L x 62″W x 84″H |
| Weight (lbs.) | 2100 lbs. |
| Load Capacity (lbs.) | 6000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 51″W x 48″D |
| Chute Height (in.) | 84″ |
| Frame Height (in.) | 80″ |
| Chute Reach (in.) | 5″ |
| Dump Height (in.) | 72″ |
| Overhead Clearance (in.) | 158″ |
| Horizontal Clearance (in.) | 91″ |
| Voltage | 230 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Dump Angle (degrees) | 45�� |
| Brand | Valley Craft |
