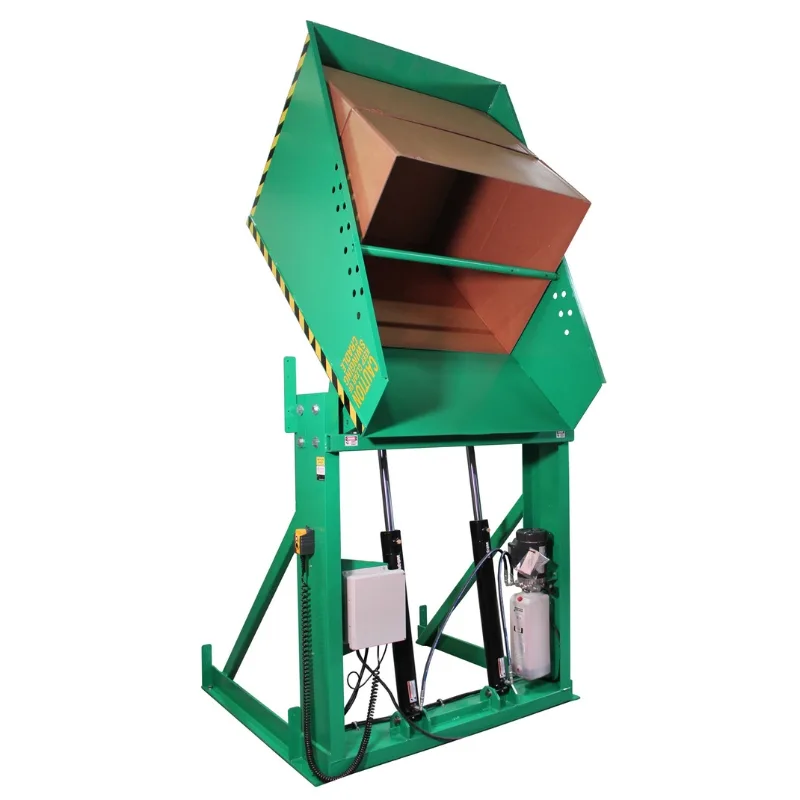

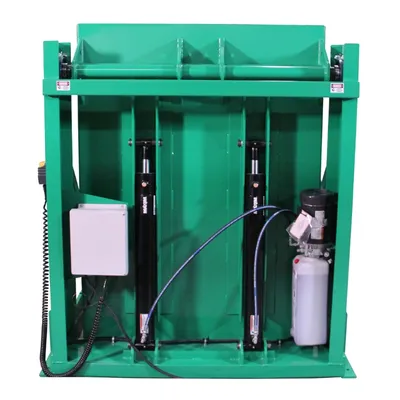

Box Dumper F89025, 6,000 lb. Capacity

The Valley Craft F89025 Box Dumper offers a powerful and user-friendly way to handle heavy dumping tasks. With a 36” x 36” chute, 6,000 lb. capacity, and 72” dump height, it takes the strain out of moving large containers like tubs and totes. Built tough from American-made steel and delivered fully assembled, it’s a dependable solution that improves safety and productivity from day one.

SKU: F89025 Category:

$12,790.00

Material Handling Small Logo
SlimCD Payment Icon Image

Product Specifications

Weight 2000 lbs
Shipping Dimensions 66 × 51 × 87 in
Dimensions

51"W x 62"D x 84"H

Weight

1,730 lbs.

Load capacity

6,000 lbs.

Color

Green

Finish

Powder Coat Paint

Chute Size (in.)

36"W x 36"D

Frame Height (in.)

80"

Chute Height (in.)

84"

Chute Reach (in.)

5"

Dump Height (in.)

72"

Overhead Clearance (in.)

149"

Horizontal Clearance (in.)

84"

Dump Angle Degree

45°

Voltage

230

Horsepower

2

Power source

3 Phase

Brand

Valley Craft

The Valley Craft F89025 Box Dumper is a high-capacity, heavy-duty solution built to enhance safety, efficiency, and ergonomics in demanding work environments. It features a 6,000 lb. capacity, a 72” dump height, and a 36” x 36” chute that works with a variety of containers such as totes, gaylords, tubs, and cartons. The adjustable hold-down bar secures containers from 30” to 56” tall, and the raised 12” chute design makes loading with a forklift simple. A 20-foot corded pendant with a magnetic back allows easy control of the dump cycle, which completes in under 60 seconds and resets with a smooth gravity return. Built from rugged 7-gauge steel and finished in Valley Craft’s signature green powder coat, the F89025 is powered by a 230V, 2HP motor and equipped with a dual-flow hydraulic valve to ensure smooth and balanced operation. Floor mounting holes add extra stability, and each unit ships fully assembled and ready to use. Designed for lasting durability and reduced operator fatigue, it’s a smart addition to any facility.
