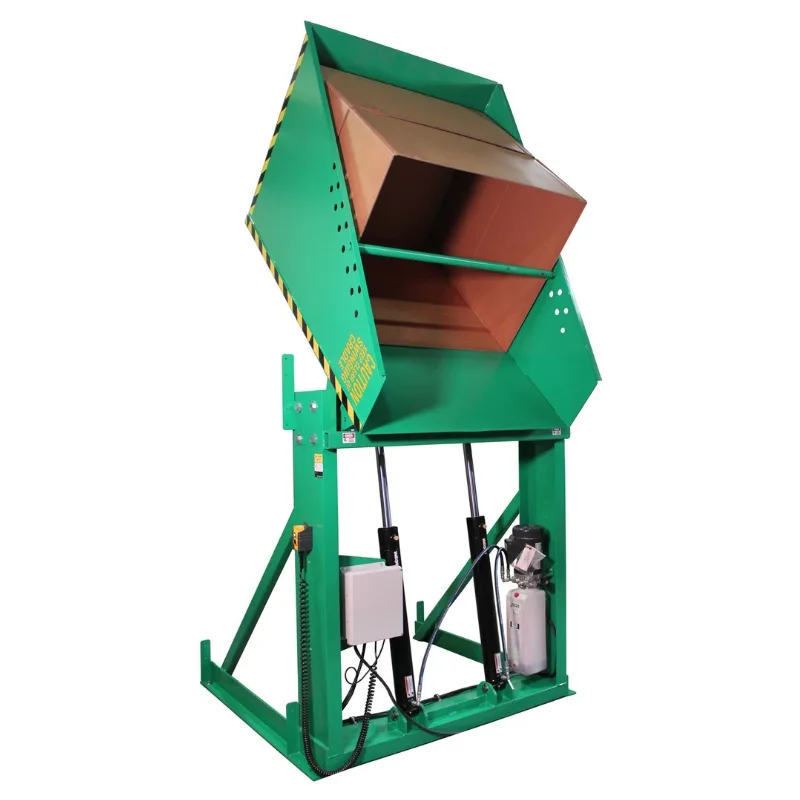

Valley Craft’s (F89028) Box Dumper is built to safely and efficiently handle heavy dumping tasks in industrial settings. With a 6,000 lb. capacity and 60″ dump height, it’s perfect for gaylords, crates, totes, and cartons. The compact 36″ x 36″ chute and 12″ raised height make it easy to load by hand or with a pallet jack. An adjustable spring-loaded hold-down bar secures containers from 30″ to 56″ high during the cycle. The 230V, 3-phase, 2HP motor powers a smooth dump controlled by a 20′ corded pendant with a magnetic back. Built from 7-gauge steel and finished in green powder coat, the Valley Craft unit ships fully assembled and ready to use.
Box Dumper F89028, 6,000 lb. Capacity
The Valley Craft (F89028) Box Dumper makes dumping heavy materials fast, safe, and easy. It features a 6,000 lb. capacity, 60″ dump height, and a compact 36″ x 36″ chute for handling crates, totes, and cartons. Powered by a 230V motor with a corded pendant, it delivers smooth operation and ships fully assembled for immediate use.
$12,240.00
Product Specifications
| Weight | 1750 lbs |
|---|---|
| Shipping Dimensions | 66 × 51 × 75 in |
| Dimensions (in.) | 51″W x 62″D x 72″H |
| Weight (lbs.) | 1620 lbs. |
| Load Capacity (lbs.) | 6000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 36″W x 36″D |
| Frame Height (in.) | 68″ |
| Chute Height (in.) | 72″ |
| Chute Reach (in.) | 5″ |
| Dump Height (in.) | 60″ |
| Overhead Clearance (in.) | 138″ |
| Horizontal Clearance (in.) | 84″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 230 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Brand | Valley Craft |
