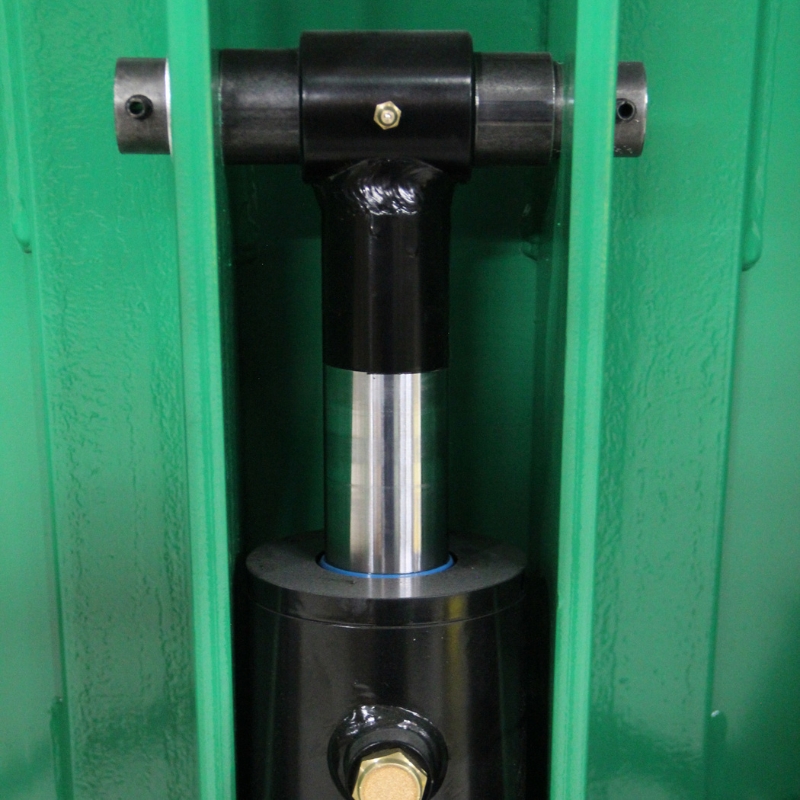

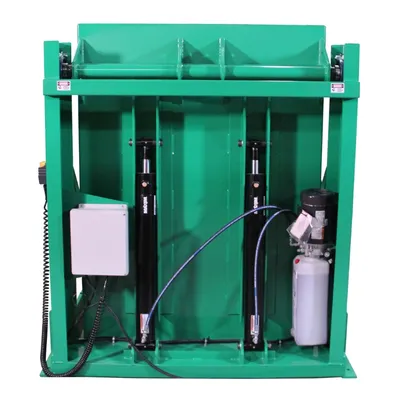

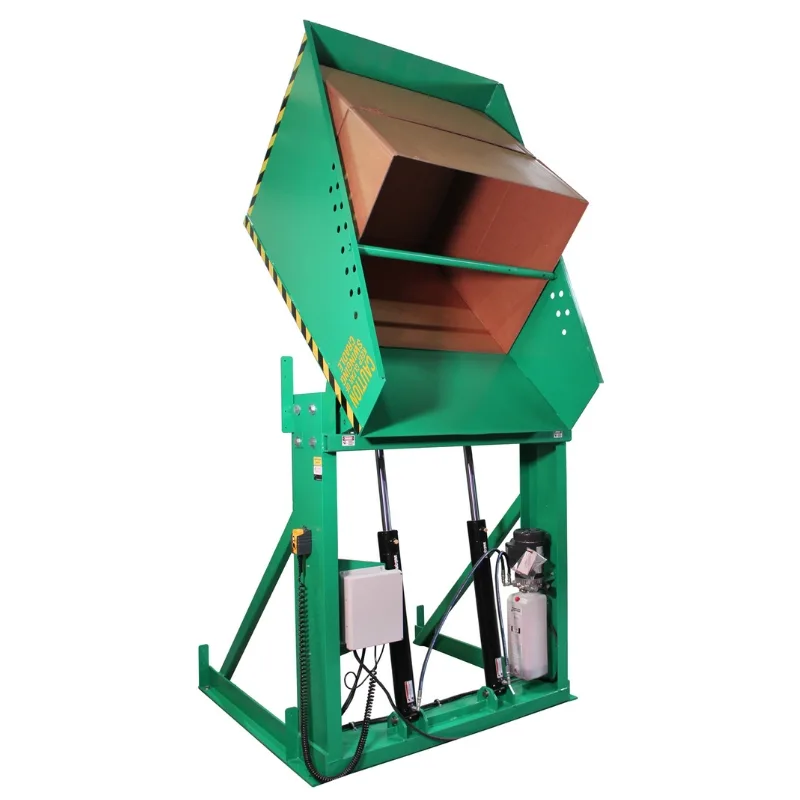

Valley Craft box dumper (F80177A7) features a 460V motor, 51 x 48″ chute, and 60″ dump height with a 4,000 lb. capacity for efficient and ergonomic material handling. Built from heavy-duty 7-gauge steel, it includes a magnetic handheld pendant, spring-loaded hold down bar, dual-flow hydraulics, and arrives fully assembled. Made in the U.S.A.
$10,495.00
| Weight | 2000 lbs |
|---|---|
| Shipping Dimensions | 67 × 66 × 75 in |
| Dimensions (in.) | 66″W x 63″D x 72″H |
| Weight (lbs.) | 1975 lbs. |
| Load Capacity (lbs.) | 4000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 51″W x 48″D |
| Frame Height (in.) | 68″ |
| Chute Height (in.) | 72″ |
| Chute Reach (in.) | 5″ |
| Dump Height (in.) | 60″ |
| Overhead Clearance (in.) | 146″ |
| Horizontal Clearance (in.) | 91″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 460 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Lead Time | 20 Days |
| Brand | Valley Craft |
Valley Craft’s box dumper (460V, 51 x 48” chute, 60” dump height, 4,000 lb. capacity) offers a powerful, efficient solution for dumping heavy containers while helping reduce workplace strain and injury. Designed for use with a wide range of container types, it features a spring-loaded hold down bar, heavy-duty 7-gauge steel construction, and a smooth-operating dual-flow hydraulic system. The powered dump cycle runs in under 60 seconds and is controlled by a magnetic handheld pendant for simple, safe operation in any setting.
