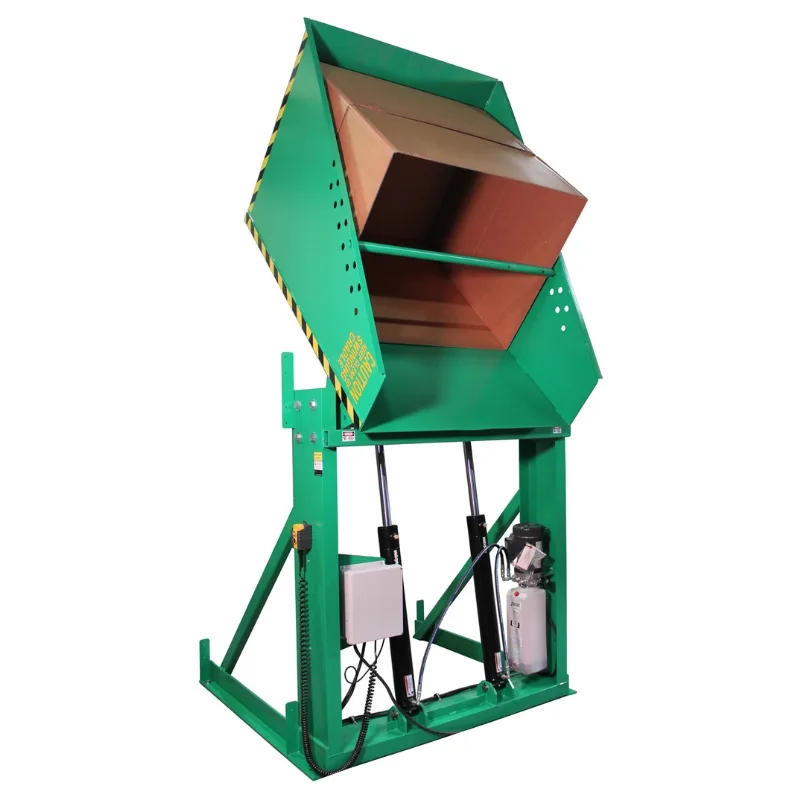

Valley Craft box dumper (F89023) features a 230V motor, 36″ dump height, and a large 51 x 48″ chute designed to handle containers weighing up to 4,000 lbs. It is built from heavy duty 7-gauge steel and operates with a smooth, dual-flow hydraulic system for reliability and long-term performance. Finished with a premium green powder coat, it arrives fully assembled and is made in the U.S.A.
$10,440.00
| Weight | 1800 lbs |
|---|---|
| Shipping Dimensions | 67 × 66 × 69 in |
| Dimensions (in.) | 66″W x 63″D x 66″H |
| Weight (lbs.) | 1860 lbs. |
| Load Capacity (lbs.) | 4000 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Chute Size (in.) | 51″W x 48″D |
| Frame Height (in.) | 52″ |
| Chute Height (in.) | 66″ |
| Chute Reach (in.) | 12-1/2″ |
| Dump Height (in.) | 36″ |
| Overhead Clearance (in.) | 118″ |
| Horizontal Clearance (in.) | 80″ |
| Dump Angle (degrees) | 45�� |
| Voltage | 230 |
| Horsepower | 2 |
| Power Source | 3 Phase |
| Lead Time | 20 Days |
| Brand | Valley Craft |

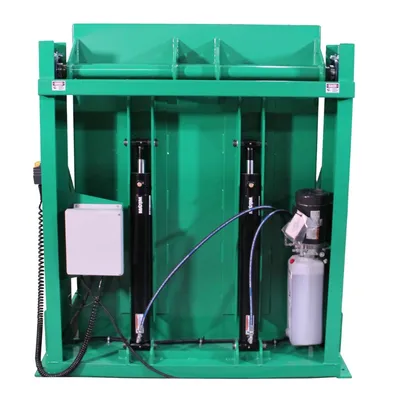

Valley Craft box dumper (F89023) offers a safe and efficient way to unload heavy containers with less physical strain and more control. This model runs on 230V power and features a 51 x 48″ chute, 36″ dump height, and a 4,000 lb. capacity, making it ideal for a wide range of material handling applications. The dual-flow hydraulic system ensures smooth operation, while the spring-loaded hold down bar keeps containers secure during dumping. Easily operated by a magnetic handheld pendant and compatible with pallet jack loading, it helps streamline your workflow. Built from rugged 7-gauge steel and finished with a durable green powder coat, this dumper is fully assembled and made in the U.S.A.
