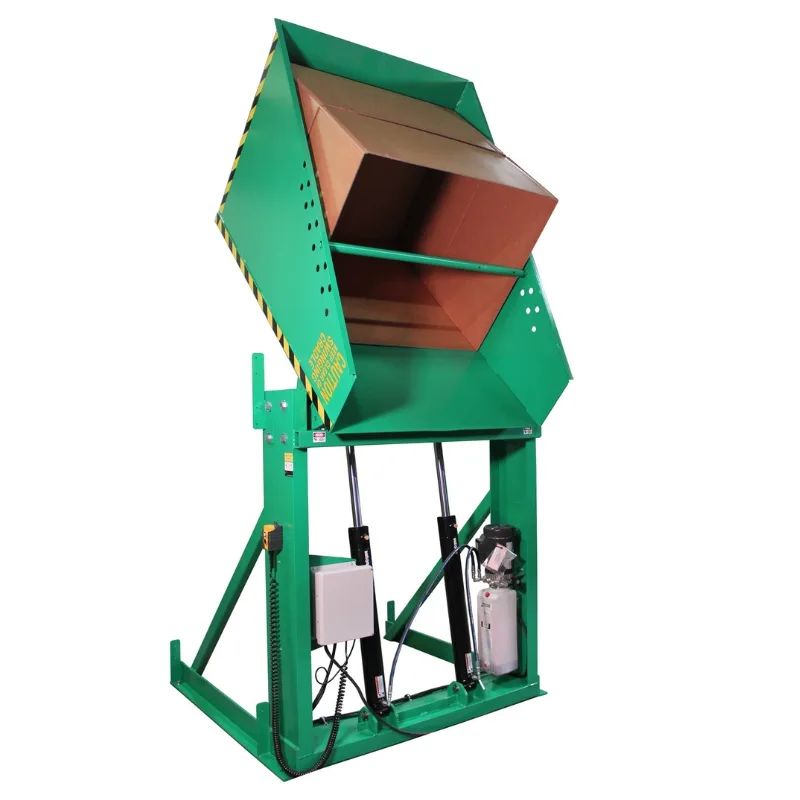

The Valley Craft F80170A0 Box Dumper offers reliable performance for demanding industrial applications. With a 6,000 lb. load capacity, a 72″ dump height, and a 51″ x 48″ chute, it easily handles heavy containers like gaylords and totes. Powered by a 460V motor and operated with a handheld pendant, it delivers smooth, controlled dumping with minimal manual effort. Made in the U.S.A. and ships fully assembled for quick setup and use.

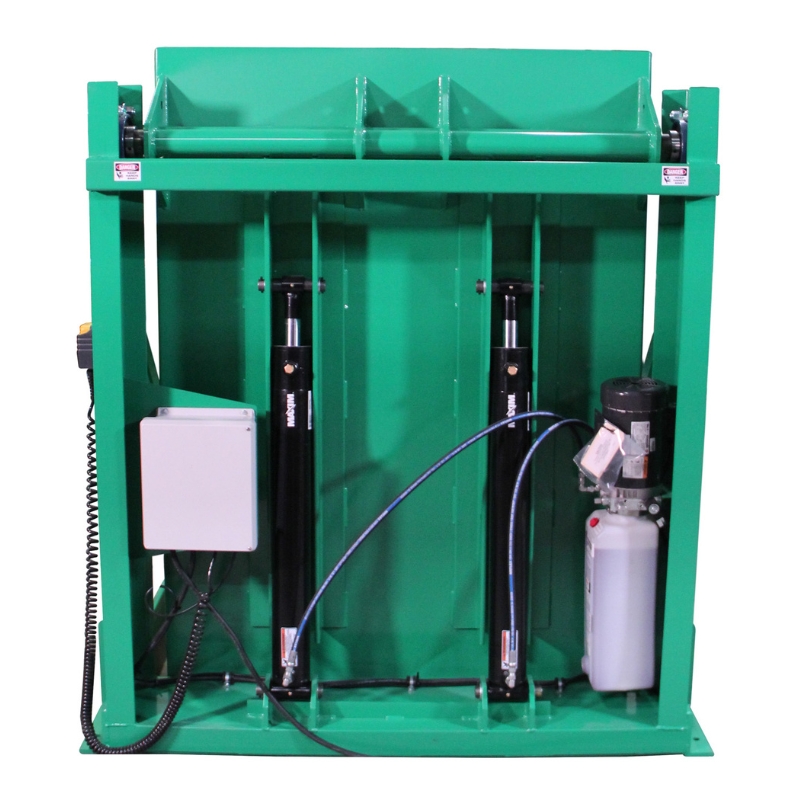

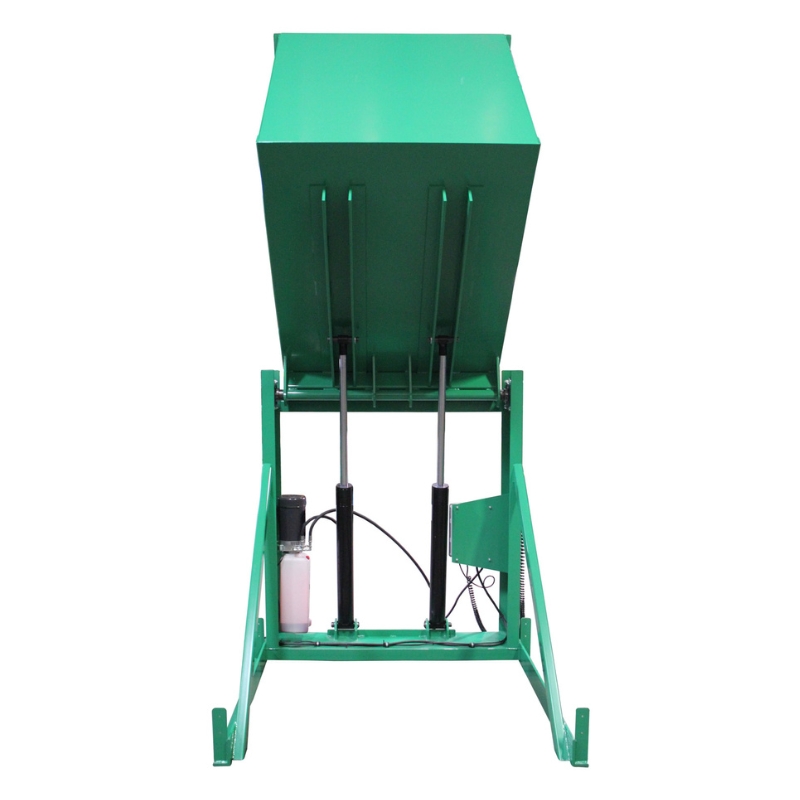

Valley Craft’s F80170A0 Box Dumper is built to improve workplace efficiency and safety with its powerful, ergonomic design. It features a spacious 51″ x 48″ chute, supports up to 6,000 lbs., and offers a 72″ dump height to handle a variety of containers including gaylords, totes, tubs, and cartons. The spring-loaded hold-down bar adjusts in 2″ increments to secure containers between 30″ and 56″ tall, while the 12″ elevated chute allows for easy forklift access. Operated by a 460V, 3-phase, 2HP motor, the powered dump cycle is controlled using a 20′ corded pendant and completes in less than 60 seconds. For added control, operators can stop or resume the cycle at any time. A dual-flow hydraulic control system ensures smooth, balanced performance. Constructed from heavy-duty 7-gauge steel with a green powder coat finish, the F80170A0 is designed for long-term durability. Floor-mounting holes and safety decals are included, and the unit ships fully assembled and ready to use.
