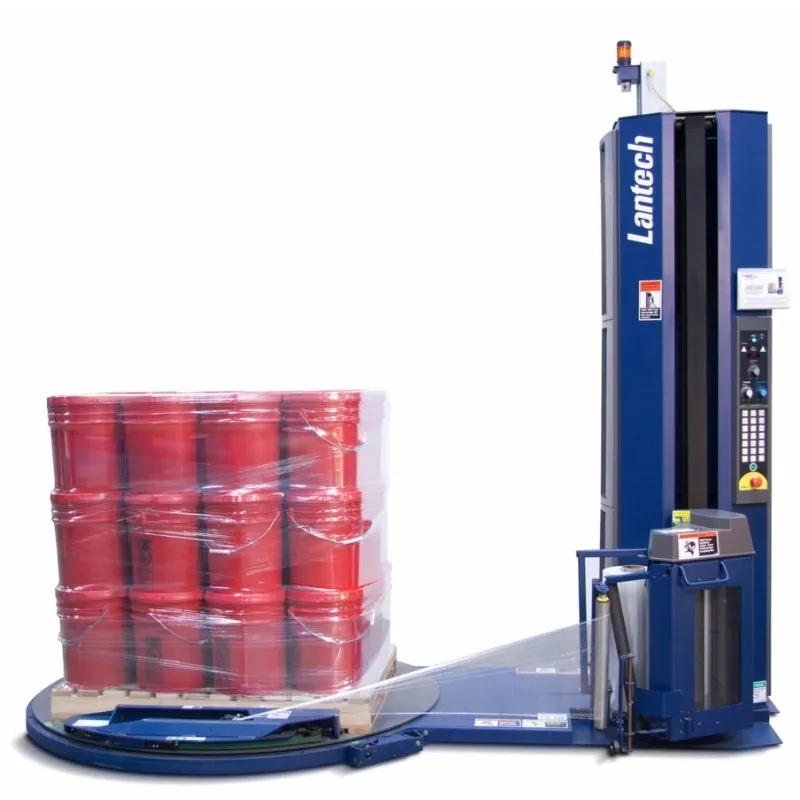

Lantech Q300XT

The Lantech Q300XT is not just another stretch wrapper; it’s an investment in efficiency, safety, and versatility. Here’s how it can revolutionize your workflow:

SKU: Q300XT Category:

Material Handling Small Logo
SlimCD Payment Icon Image

Product Specifications

Peak production speed

Up to 30-40 Loads/Hr

Load size diagonal recom

1750 mm (69")

Maximum load wrap height

2032 mm (80")

Maximum load weight

4,000 lbs.

Xt cut and clamp 5 0

Standard

Auto film cut off

Not Applicable

Pallet grip

Optional

Load guardian

Not Available

Photo eye

Intelli-Sensor

Standard film width

500 mm (20")

Ez thread film delivery

Standard

Standard pre stretch

200%

Wrap force

Variable (Electric)

Film capacity

250 mm (10") Roll Diameter

Film delivery system

Power Roller-Stretch Plus

Ez weigh integrated scale

Optional

Nema type 1 enclosure

Optional

Turntable speed variable

12 RPM

Turntable size

1651 mm (65") Diameter

Turntable drive

3/4 HP TEFC

Approx shipping weight

1,650 lbs.

Size (In.)

(120" L X 68" W X 98" H)

Pneumatic

Not Applicable

Electric service req us

120V-20 Amp-50/60hz

Electric service req eu

1L-220V-16AMP-50Hz

Warranty duration

5 Years, Unlimited Cycles, All Components Covered

Brand

Lantech

Lantech is a global leader in packaging and automation solutions, specializing in stretch wrapping machines, case erectors, and pallet wrapping systems. Their innovative technology helps businesses improve load containment, reduce waste, and streamline packaging operations.

The Lantech Q300XT is not just another stretch wrapper; it’s an investment in efficiency, safety, and versatility. Here’s how it can revolutionize your workflow:

Unmatched Versatility

Whether you’re dealing with doors, windows, or any other complex load, the Q300XT wraps it all. Its robust design can handle up to 30-40 loads per hour, ensuring that your production line keeps moving at an optimal pace. No load is too big or too small with a maximum load height of 80 inches and a weight capacity of 4000 lbs.

Automated Efficiency

Say goodbye to manual wrapping and hello to automation with the XT Cut and Clamp® feature. This innovation keeps your drivers on the forklift, reducing downtime and increasing productivity. The EZ Thread Film Delivery system makes loading film a breeze, while the variable electric wrap force ensures your loads are secured tightly and safely every time.

Safety First

Your team’s safety is our priority. The Lantech Q300XT comes equipped with the Intelli-Sensor photo-eye, providing precise detection and consistent wrapping without the risk of accidents. Plus, with no scheduled preventative maintenance required, you can trust that the Q300XT will stay reliable and safe without constant upkeep.

Customizable Options

Every business is unique, and the Q300XT offers hundreds of customizable options to meet your specific needs. From the optional Pallet Grip® to the integrated EZ Weigh Scale, each feature is designed to streamline your operations further and provide the utmost convenience.

Long-Term Reliability

With a 5-year unlimited cycles warranty covering all components, you can invest in the Lantech Q300XT with confidence. This durable machine is built to withstand the demands of high-volume operations, ensuring your investment pays off for years to come.

Specifications at a Glance

  • Speed: Up to 30-40 Loads/Hr
  • Load Size: Up to 69″ diagonal
  • Max Load Height: 80″
  • Max Load Weight: 4000 lbs
  • Turntable Speed: Variable 12 RPM
  • Standard Pre-Stretch: 200%
  • Film Width: 20″
  • Warranty: 5 Years, Unlimited Cycles

Transform Your Packaging Process

The Lantech Q300XT is more than just a machine; it’s a game-changer for your packaging line. Enhance efficiency, ensure safety, and customize your operations like never before. Don’t just keep up with the competition—lead the way with the Lantech Q300XT.
