Manual Pallet Stacker

Materialhandling.com provides top-of-the-line pallet stackers that are made to last and highly effective in streamlining the process of material handling. Manual pallet stackers are an economical solution for warehouses and distribution centers that need to move heavy materials and products on a regular basis. The ergonomic design of these manually operated stackers allows for one person to easily push, pull or lift loads up to 2200 lbs with minimum effort. These stackers provide superior maneuverability, allowing you to access tight spaces and difficult-to-reach areas where larger trucks cannot go. They come equipped with safety features like steel guards that protect the operator from moving parts, as well as swivel casters for easy steering.

The robust construction of manual pallet stacker ensures dependable performance even in harsh conditions such as high humidity or dusty environments. These stackers have adjustable forks so you can customize them according to your load sizes, while their wide base prevents tipping over when going up ramps or inclines. A unique feature is the low maintenance design – no hoses, cables or chains which means less frequent replacements and repairs compared to other similar models on the market.

With pallet stackers, you can expect increased productivity thanks to their tremendous lifting power – they can easily pick up and transport large payloads quickly and safely without fatigue or injury risks. And its low profile design lets operators access hard-to-reach areas without having to strain their necks or backs when reaching overhead heights. This makes these manual pallet stackers an ideal choice for businesses looking to optimize their material handling operations while keeping costs low. Take a look at our competively priced pallet stackers

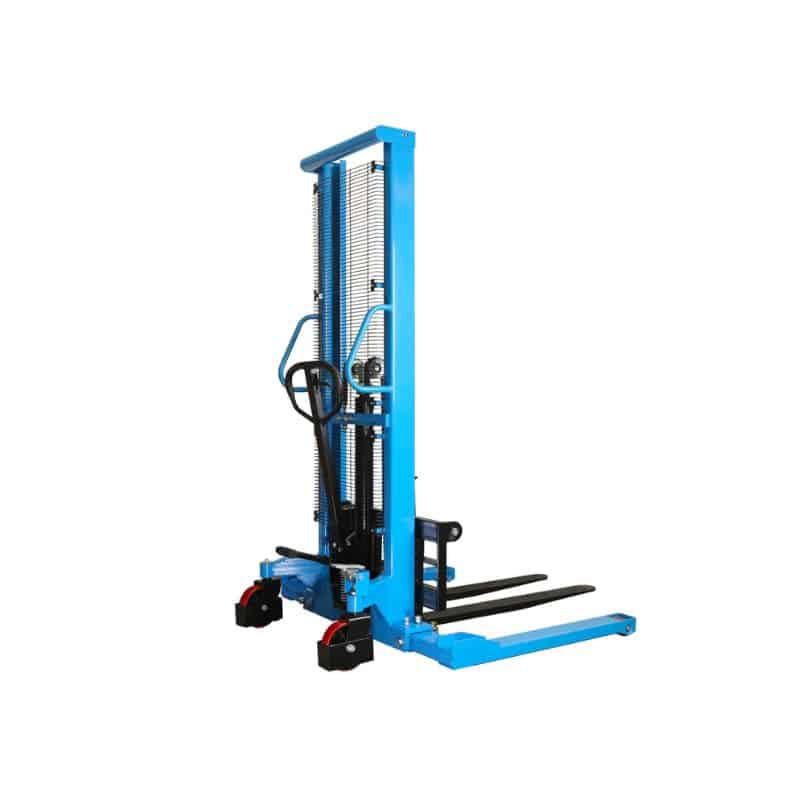

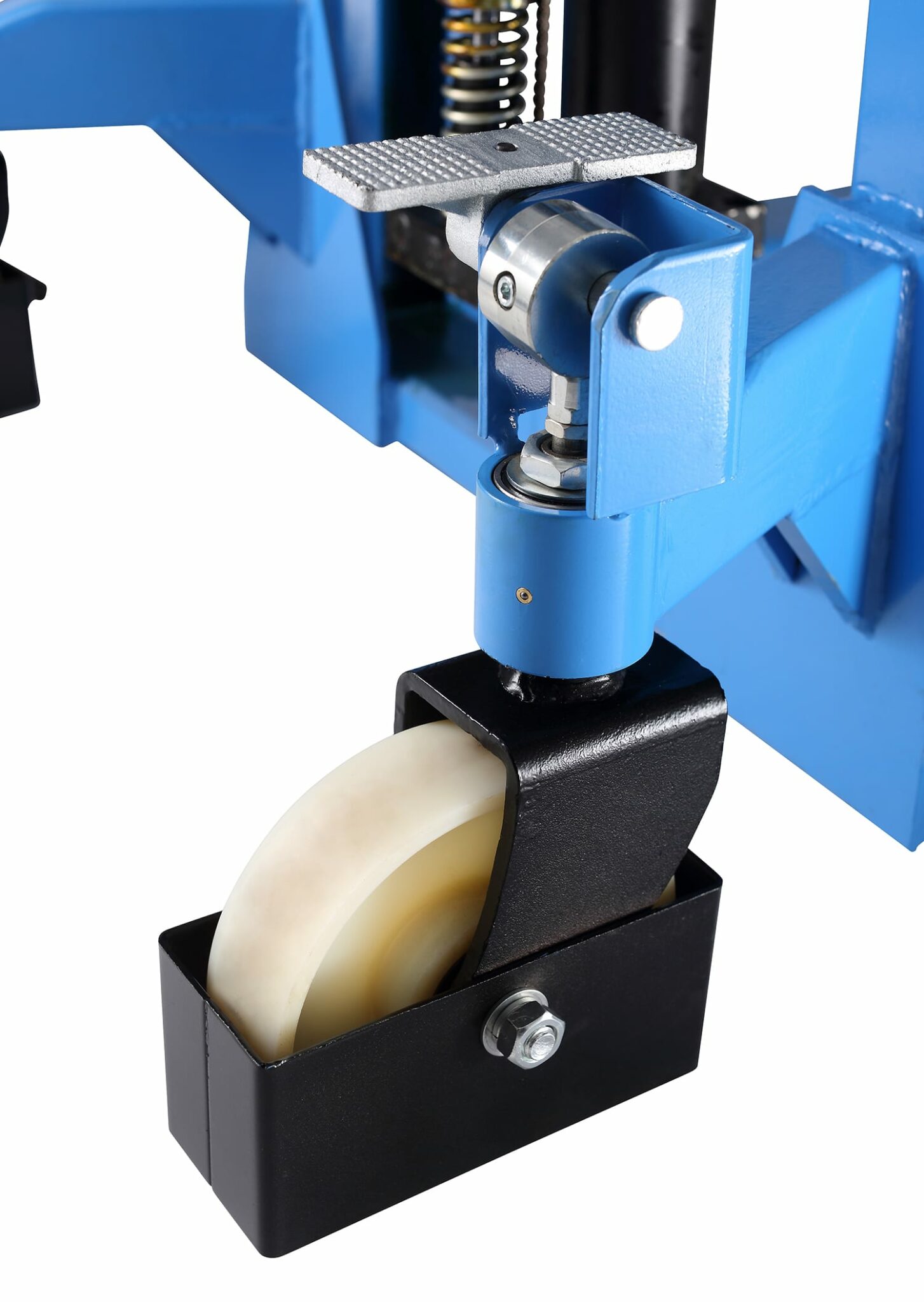

Eoslift H10J Adjustable Base Leg Straddle Pallet Truck Stacker

In stock

$2,499.99
Weight 759 lbs
Dimensions 66 × 41.3 × 81 in
Wheel Material

Heavy Duty polyurethane coating on die cast Iron Rim

Load Capacity

2200 lbs.

Finish

Automated Electrostatic Paint

Handle Type

Padded Handles

Minimum Lifting Height

1.4 in

Maximum Lifting Height

63 in.

Fork Length (in.)

43 in

Fork Width (in.)

8.3-32.7 in.

Handle Length (in.)

30 in

Lowered Forks Height (in.)

1.4 in

Raised Forks Height (in.)

63"

Turning Radius (in.)

51

Brand

Eoslift

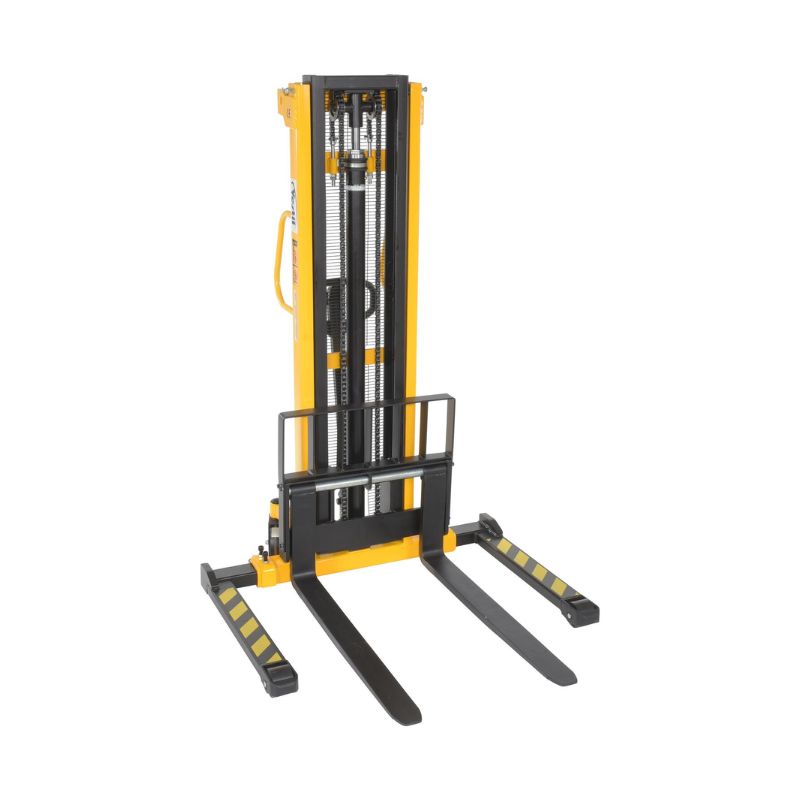

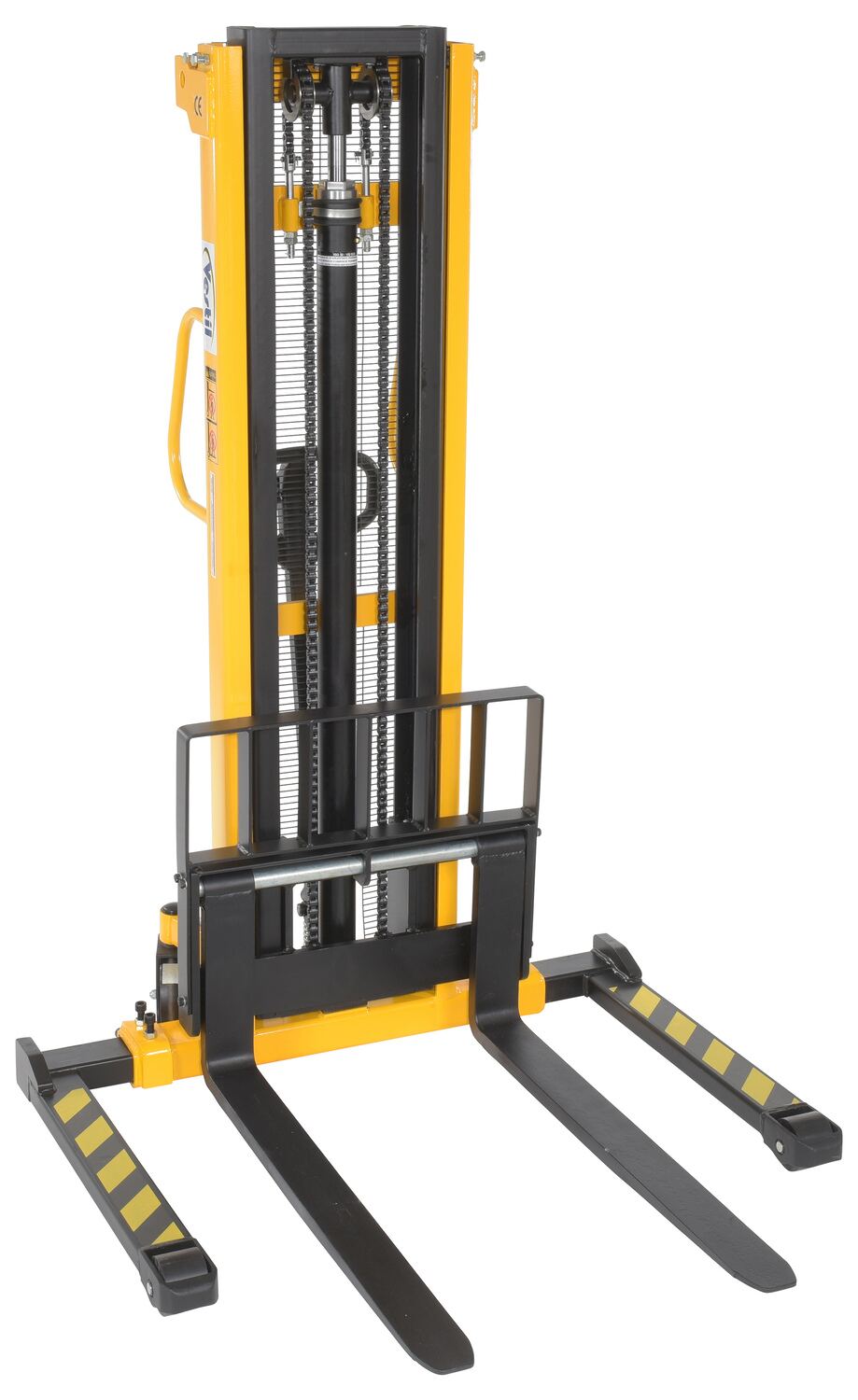

VHPS-2000-AA MANUAL STACKER ADJUSTABLE FORKS/LEGS 2K

In stock

$2,603.95
Weight 860 lbs
Dimensions 67 × 64 × 88 in
Uniform Capacity (lb.)

2000

Service Range (in.)

2 to 63

Horizontal Load Center (in.)

24

Straddle Leg Minimum (in.)

38 (I.D)

Straddle Leg Maximum (in.)

50 (I.D)

Fork Adjustment Minimum (in.)

7-7/8 (O.D)

Fork Adjustment Maximum (in.)

26-3/4 (O.D)

Rear Caster Quantity/Diameter/Width (in.)

(2) 7 x 2

Rear Caster Type

Swivel with Brake

Front Caster Quantity/Diameter/Width (in.)

(2) 4 x 2-29/32

Front Caster Type

Rigid

Lift per Handle Pump (in.)

3/4

Individual Fork Width (in.)

3-15/16

Fork Length (in.)

42-1/8

Operation

Hand Winch

Min. Travel Distance (in.)

36

Max. Travel Distance (in.)

64

Leg Width (in.)

4

Brand

Vestil

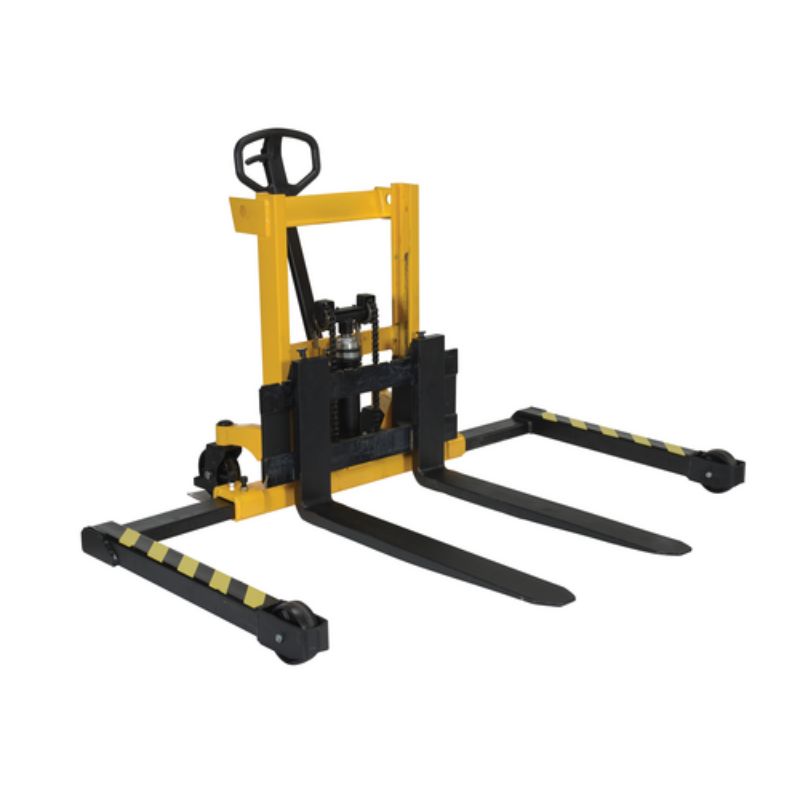

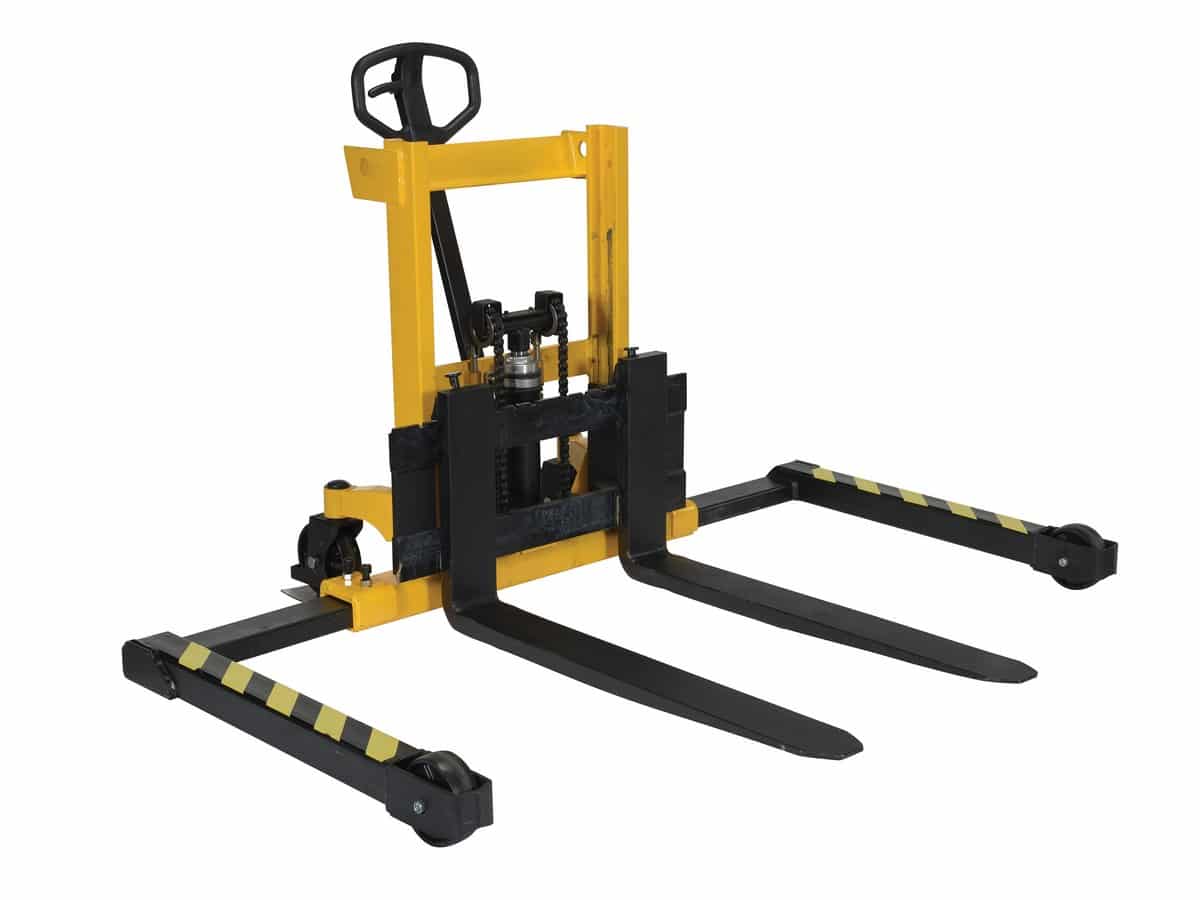

VHPS-2000-AA-17 STACKER MANUAL PUMP 2-17 IN 2000 LB

In stock

$2,292.96
Weight 490 lbs
Dimensions 64 × 40 × 51 in
Uniform Capacity (lb.)

2000

Service Range (in.)

3 to 17

Fork Length (in.)

42-1/8

Lift per Handle Pump (in.)

3/4

Caster Type

(2) Rigid, (2) Swivel

Brand

Vestil

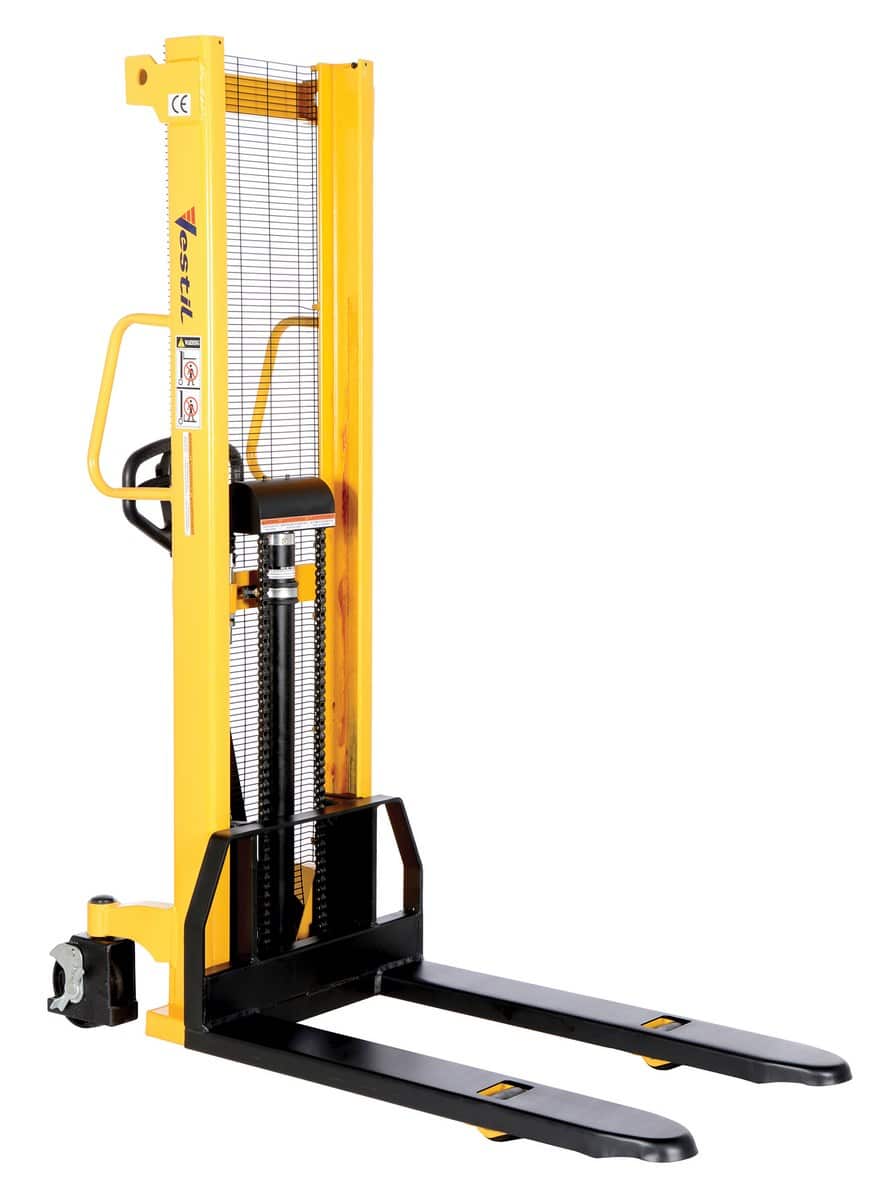

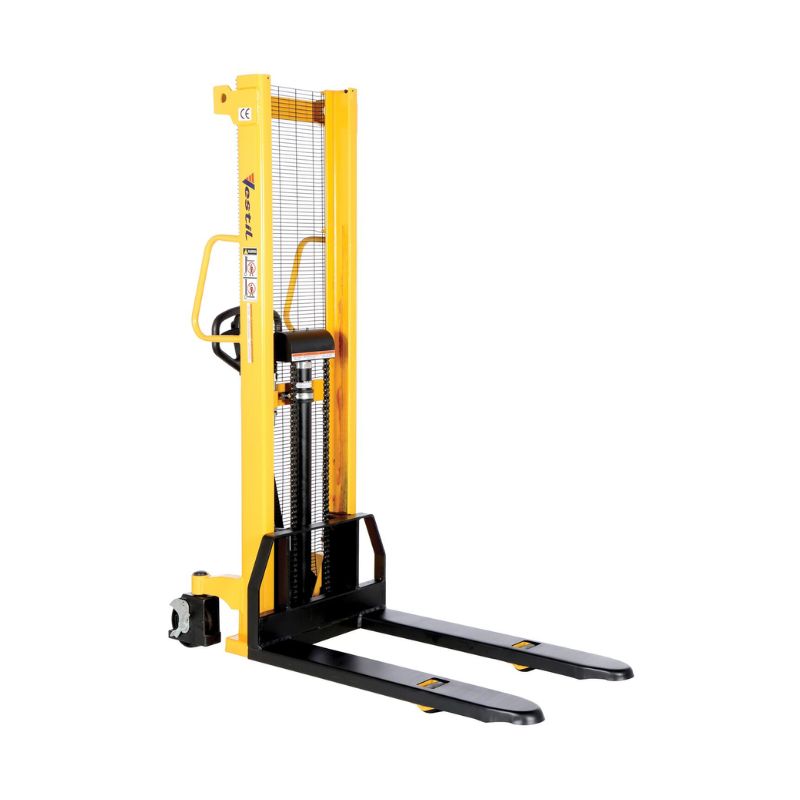

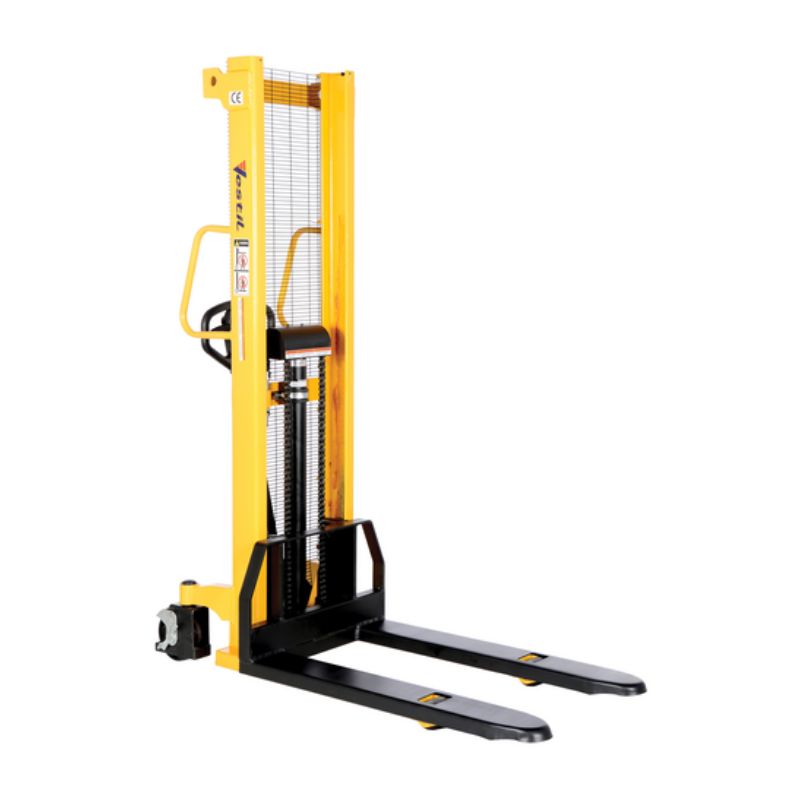

VHPS-2000-FF MANUAL STACKER FIXED FORKS/LEGS 2K

In stock

$2,296.88
Weight 570 lbs
Dimensions 64 × 40 × 87 in
Uniform Capacity (lb.)

2000

Service Range (in.)

3-3/4 to 63

Horizontal Load Center (in.)

24

Straddle Leg Minimum (in.)

34 (I.D)

Straddle Leg Maximum (in.)

50 (I.D)

Fork Adjustment Minimum (in.)

6 (O.D)

Fork Adjustment Maximum (in.)

24 (O.D)

Lift per Handle Pump (in.)

3/4

Rear Caster Quantity/Diameter/Width (in.)

(2) 7 x 2

Rear Caster Type

Swivel with Brake

Front Caster Quantity/Diameter/Width (in.)

(2) 4 x 2-29/32

Front Caster Type

Rigid

Individual Fork Width (in.)

4

Fork Length (in.)

42-1/8

Brand

Vestil

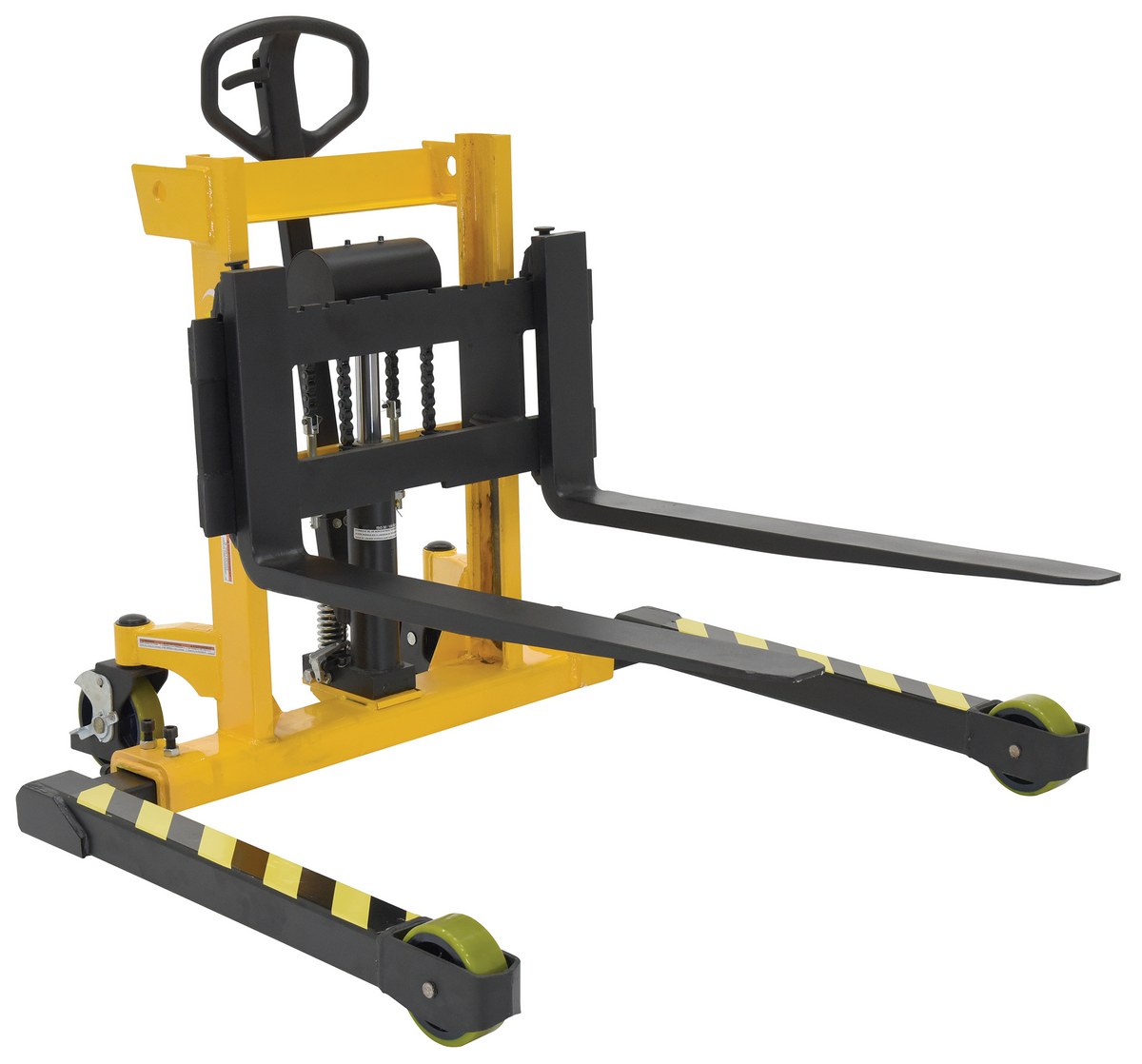

VHPS-3000-AA-17 STACKER MANUAL PUMP 2-35 IN 3000 LB

Out of stock

$2,609.85
Weight 570 lbs
Dimensions 64 × 40 × 65 in
Uniform Capacity (lb.)

3000

Service Range (in.)

2 to 17

Fork Length (in.)

42-1/8

Lift per Handle Pump (in.)

3/4

Brand

Vestil

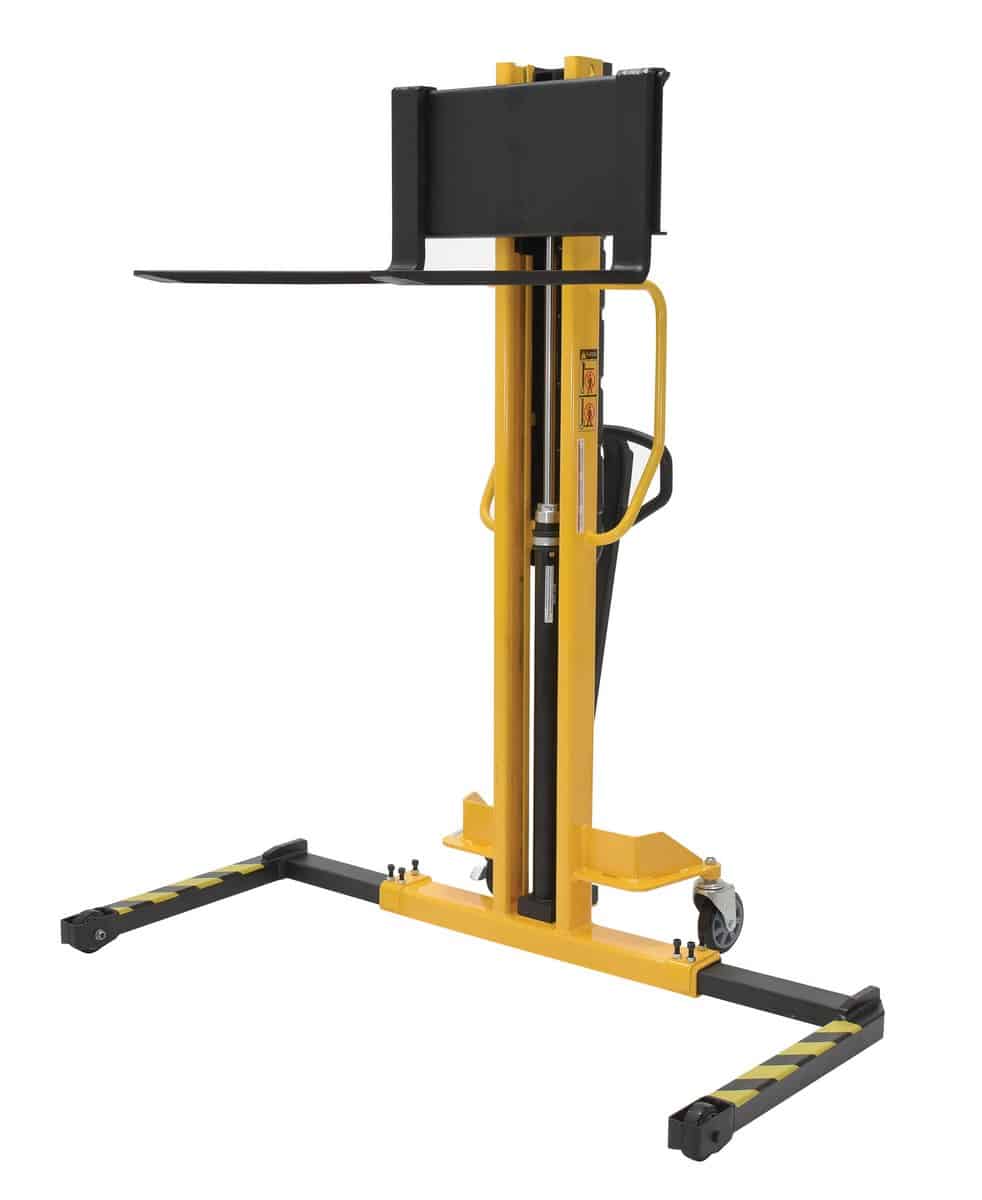

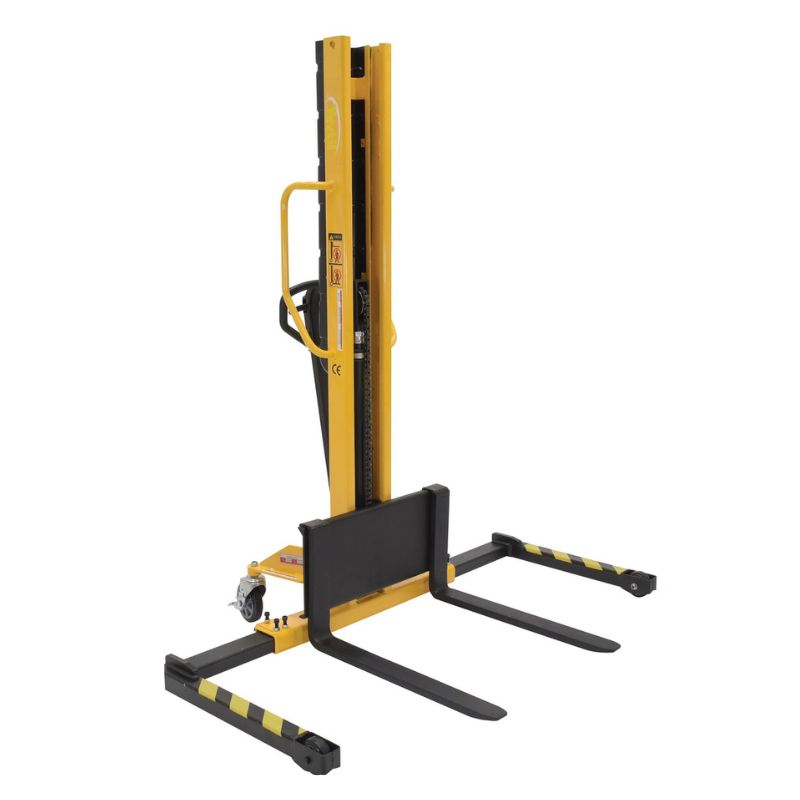

VHPS-NM-1000-AA MANUAL STACKER NARROW MAST ADJ FORKS/LEGS 1K

Out of stock

$1,876.95
Weight 650 lbs
Dimensions 48 × 40 × 87 in
Uniform Capacity (lb.)

1,000

Service Range (in.)

2-1/8 to 62

Fork Length (in.)

30

Lift per Handle Pump (in.)

3/4

Brand

Vestil

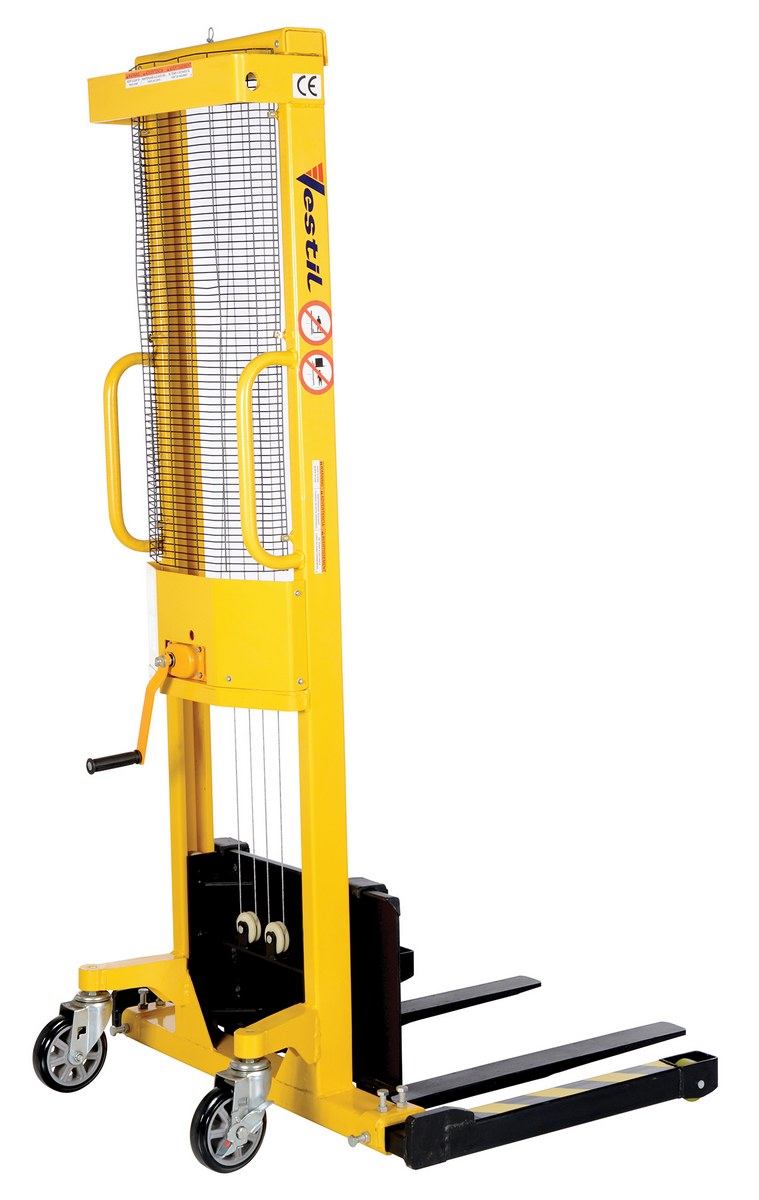

VWS-770-AA MANUAL HAND WINCH ADJ STACKER 770 LB CAP

In stock

$1,381.96
Weight 361 lbs
Dimensions 48 × 44 × 82 in
Uniform Capacity (lb.)

770

Lowered Height (in.)

1-9/16

Raised Height (in.)

59

Horizontal Load Center (in.)

24

Straddle Leg Minimum (in.)

35-1/2 (I.D)

Straddle Leg Maximum (in.)

47-1/4 (I.D)

Fork Adjustment Minimum (in.)

6-1/4 (O.D)

Fork Adjustment Maximum (in.)

26-3/4 (O.D)

Rear Caster Diameter (in.)

6

Front Wheel Diameter (in.)

4

Lift per Handle Revolution (in.)

3/4

Individual Fork Width (in.)

3-1/8

Fork Length (in.)

30

Operation

Hand Winch

Brand

Vestil

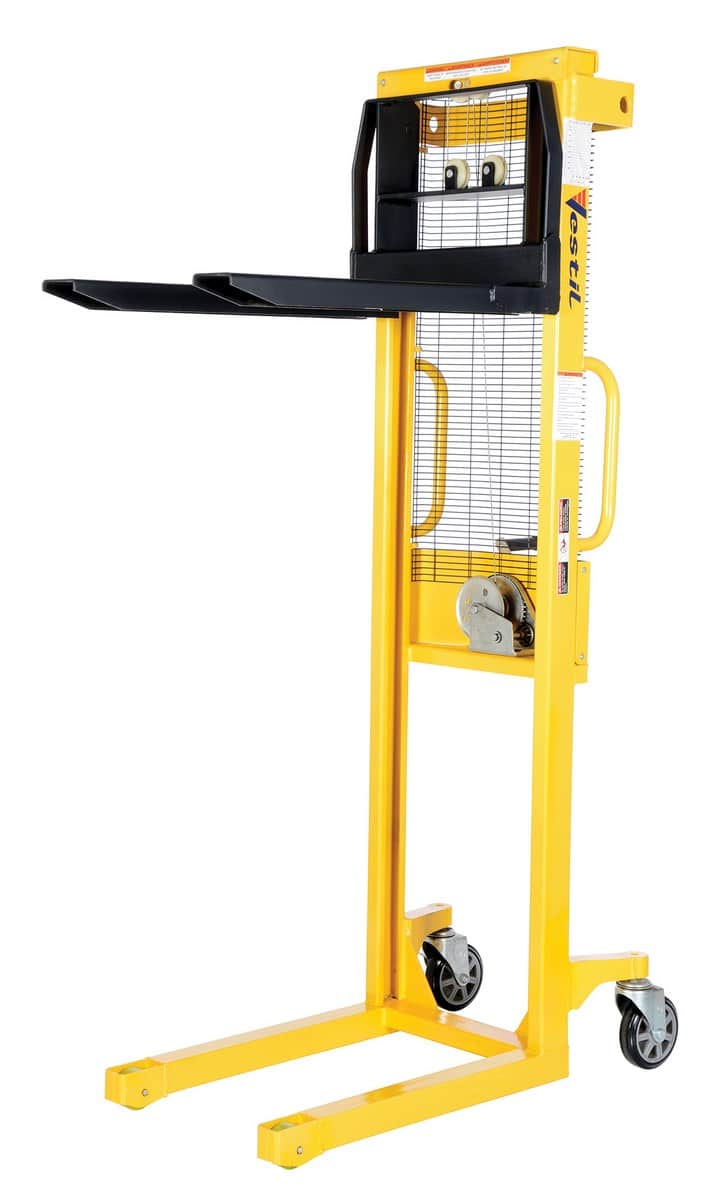

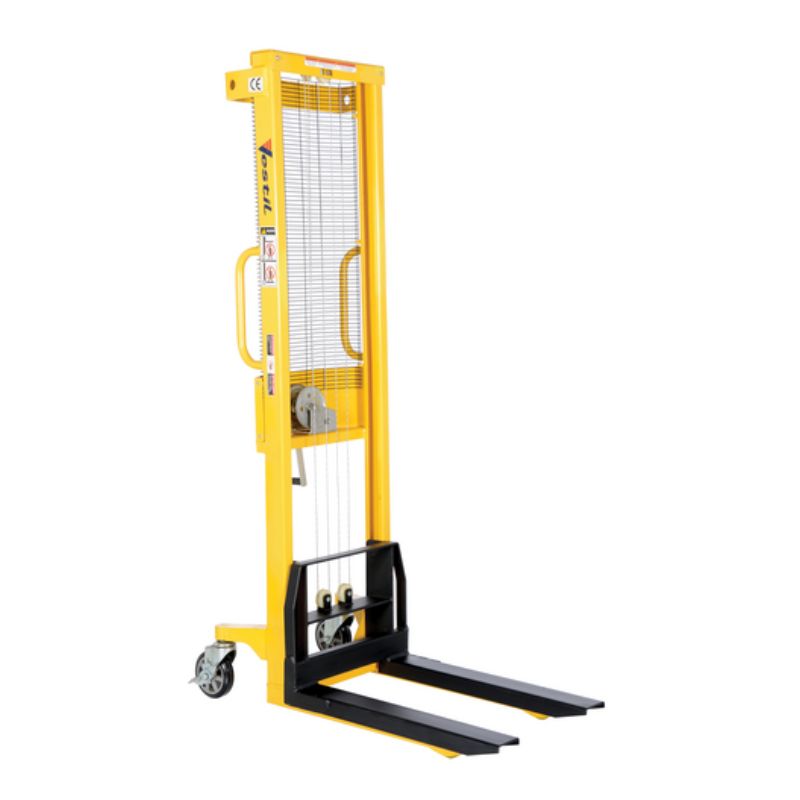

VWS-770-FF MANUAL HAND WINCH FIX STACKER 770 LB CAP

In stock

$1,352.95
Weight 235 lbs
Dimensions 48 × 40 × 81 in
Uniform Capacity (lb.)

770

Lowered Height (in.)

3-3/8

Raised Height (in.)

59

Horizontal Load Center (in.)

24

Rear Caster Diameter (in.)

5.9

Front Wheel Diameter (in.)

2.9

Lift per Handle Revolution (in.)

3/4

Individual Fork Width (in.)

3-1/8

Fork Length (in.)

30

Operation

Hand Winch

Brand

Vestil

THE BEST MANUAL PALLET STACKERS

If you're looking for a manual pallet stacker, materialhandling.com is the place to go. With a variety of options to choose from, we have the perfect manual pallet stacker for sale. Whether you need a light-duty stacker for occasional use or a heavy-duty stacker for industrial applications, we have you covered.

Browse our selection of manual hand pallet stackers today and find the perfect one for your material handling needs.

What Is A Manual Pallet Stacker?

A manual pallet stacker is a type of industrial equipment used to move and stack pallets in warehouses, factories and other storage areas. This machine is manually operated by a user who stands on the platform while pushing or pulling a handle which turns the wheels and adjusts the height of the provided forks. The forks can be adjusted up to heights of 3 meters and are able to lift loads up to six hundred kilograms. Manual pallet stackers are highly versatile, allowing them to be maneuvered quickly and easily in order to access otherwise hard-to-reach places such as corners or tight spaces. They are also cost effective when compared with other lifting machines, making them an attractive choice for businesses with smaller budgets.
