EKKO EB20E Full Powered Straddle Stacker

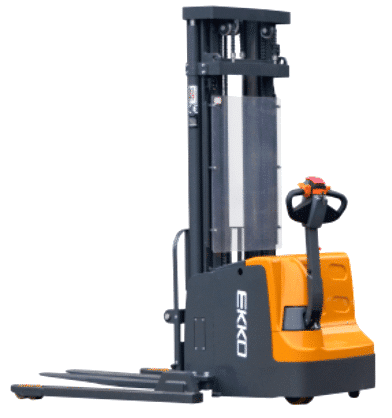

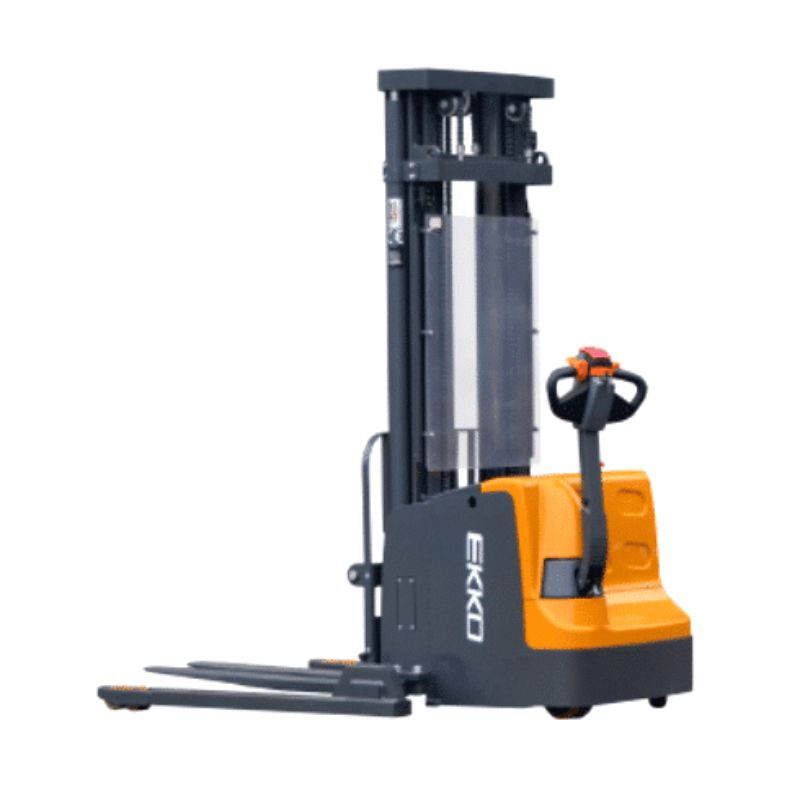

The EKKO EB20E Full Powered Straddle Stacker is a combination of a forklift, a reach truck, and a walkie stacker. It’s ideal for loading operations in stock rooms, warehouses, or even manufacturing floors – with its durable steel construction it can handle any terrain you throw at it! With quality components and a powerful drive system backing up your workflows, there’s no challenge too big for this dynamic piece of equipment.

SKU: EB20E Categories: ,

$16,502.00

Material Handling Small Logo
SlimCD Payment Icon Image

Product Specifications

Weight 3195 lbs
Shipping Dimensions 80 × 48 × 91 in
Uniform Capacity Lb

4400 lb

Fork width in

9.8-31.5

Fork length in

45.3"

Raised height in

177"

Center drive motor

24V

Lift motor

24V

Internal charger

24V/30A

Battery

24V/210Ah

Wheel type

Polyurethane

Adjustable forks

9.8-31.5“

Adjustable legs

45.5-59.1"

Loaded travel speed km h

4

Unloaded travel speed km h

4.2

Other features

Curtis Controller, Ergonomic Handle and Controls,

Brand

EKKO Lifts

Ekko Lifts is a trusted provider of high-performance material handling equipment, specializing in electric forklifts, pallet stackers, and lift trucks. Their innovative solutions enhance workplace efficiency, safety, and productivity across warehouses, distribution centers, and industrial facilities.

The EKKO EB20E Full Powered Straddle Stacker is a combination of a forklift, a reach truck, and a walkie stacker. It’s ideal for loading operations in stock rooms, warehouses, or even manufacturing floors – with its durable steel construction it can handle any terrain you throw at it! With quality components and a powerful drive system backing up your workflows, there’s no challenge too big for this dynamic piece of equipment.

  • Load Capacity 4400 lb
  • Raised Height 177″ (14.75ft)
  • Adjustable Forks 9.8-31.5″
  • Adjustable Legs 45.5-59.1″
  • Fork Length 45.3″
  • Curtis Controller
  • 24V AC Drive Motor
  • 24V Lift Motor
  • Triple Mast
  • Battery 24V/210Ah
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 24V/30A Included
  • Batteries Included
  • 3 Years Limited Warranty
