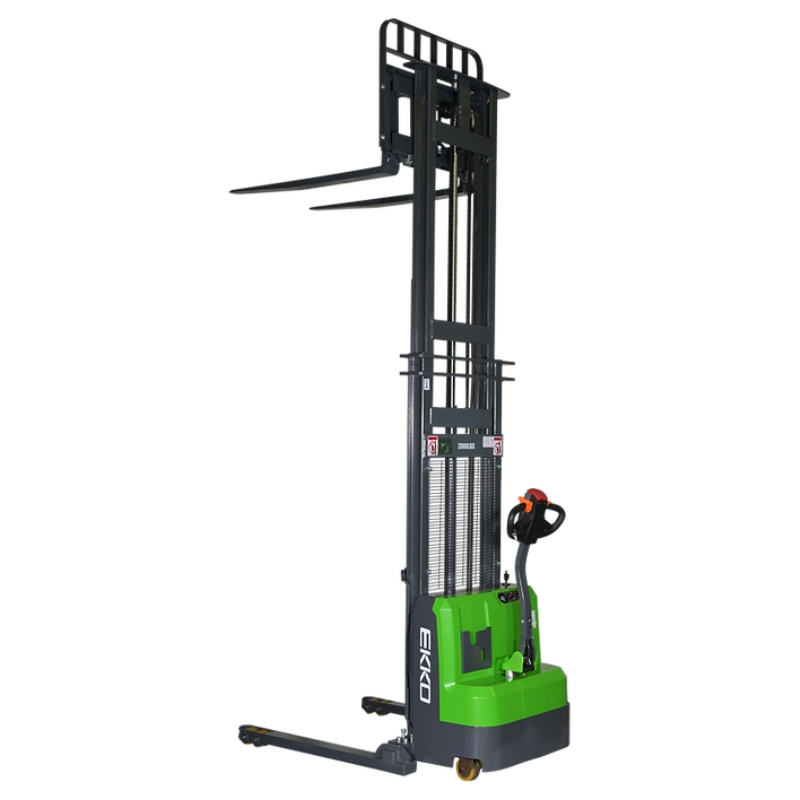

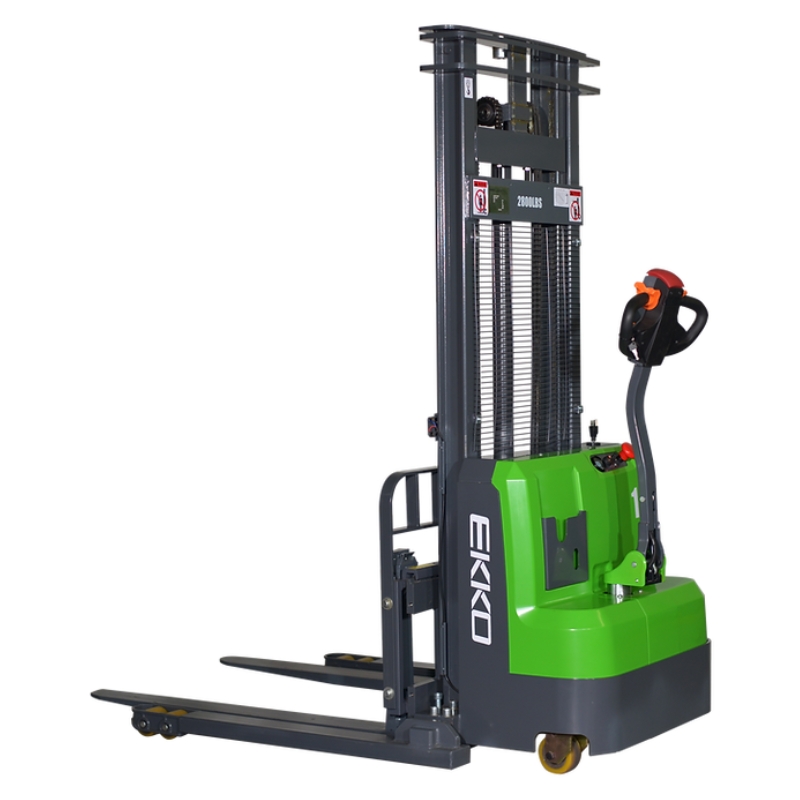

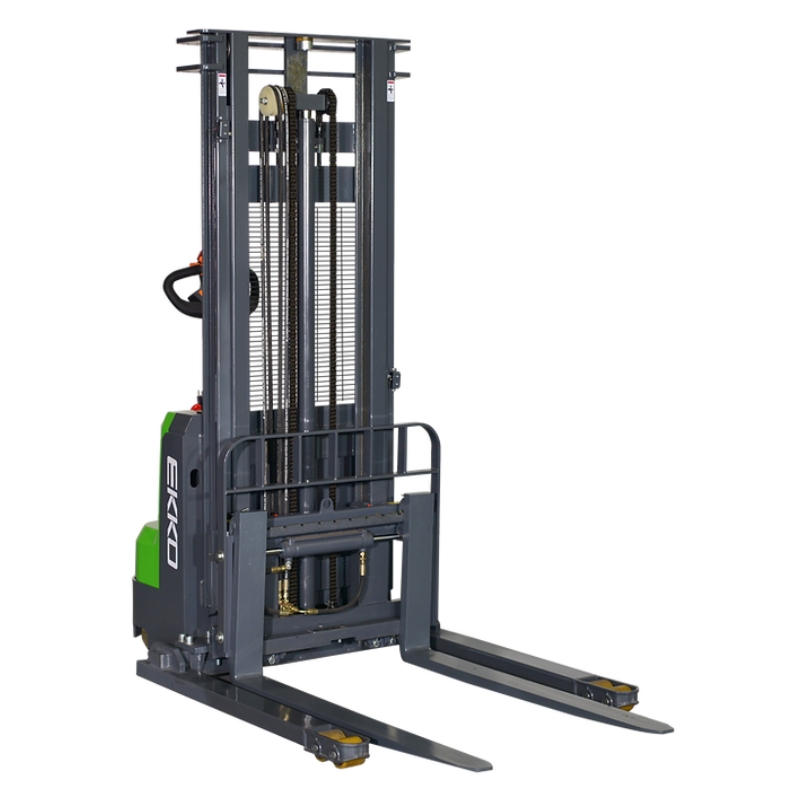

Lithium Straddle Stacker EB14CS-118LI, 3,000 lbs. Capacity

The EKKO EB14CS-118LI Straddle Stacker lifts up to 3,000 lbs. with lithium-ion power, side shift, and an internal charger. It’s designed for smooth, efficient pallet handling in tight indoor spaces.

SKU: EB14CS-118LI Categories: ,

$7,748.00

SlimCD Payment Icon Image

Product Specifications

Service Weight (lbs.) 1520 lbs.
Load Capacity (lbs.) 3000 lbs.
Max Lift Height (in.) 118″
Load Center (in.) 24
Fork Length (in.) 45.3″
Fork Width (in.) 4″
Fork Adjust Width (in.) 8.7-32.1″
Lowered Height (in.) 2.6″
Adjustable Legs 35.4-51.2″
Turning Radius (in.) 60.8″
Overall Length (in.) 73.7″
Overall Width (in.) 61″
Extended Mast Height (in.) 147.6″
Lowered Mast Height (in.) 81.7″
Internal Charger 24V/20A
Drive Motor DC Drive Motor
Lift Motor 2.2kW
Battery 24V/50Ah Lithium
Brand

The EKKO EB14CS-118LI Full Lithium-Powered Straddle Stacker with Side Shift offers efficient indoor pallet handling with enhanced control and flexibility. Powered by a 24V/50Ah lithium-ion battery and a 750W DC drive motor, this model delivers fast charging, low maintenance, and consistent performance. It supports a 3,000 lb. lifting capacity, 45-inch forks, an 81.7-inch lowered mast, and a maximum lift height of 118 inches—perfect for warehouses and tight storage areas.

With side shift functionality, a Curtis controller, and internal charger, operators benefit from precise load placement and easy recharging. Its 1,520 lb. frame and poly tires make it ideal for use on clean, level indoor surfaces.
