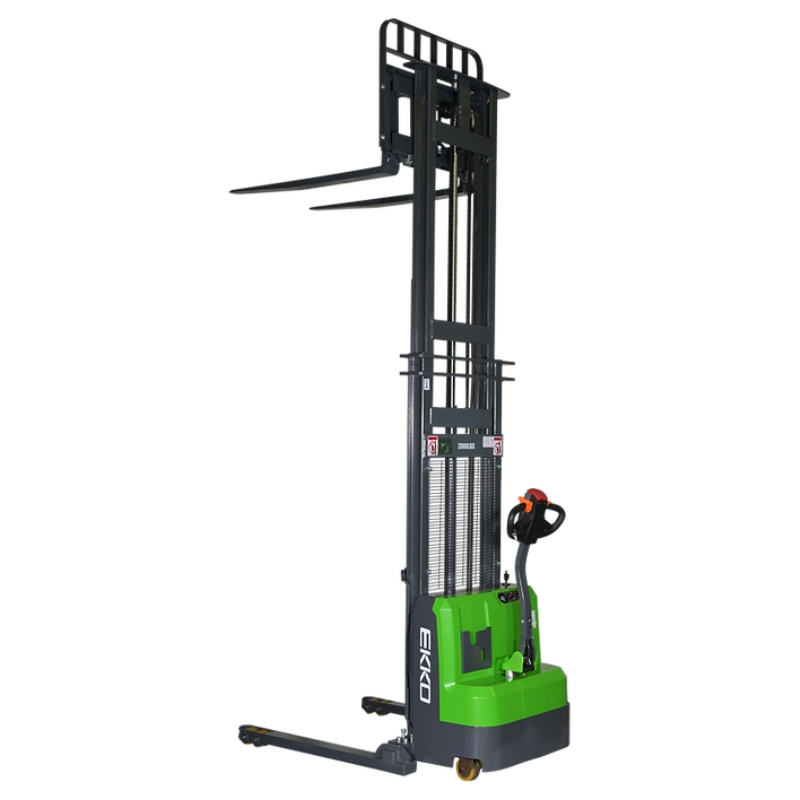

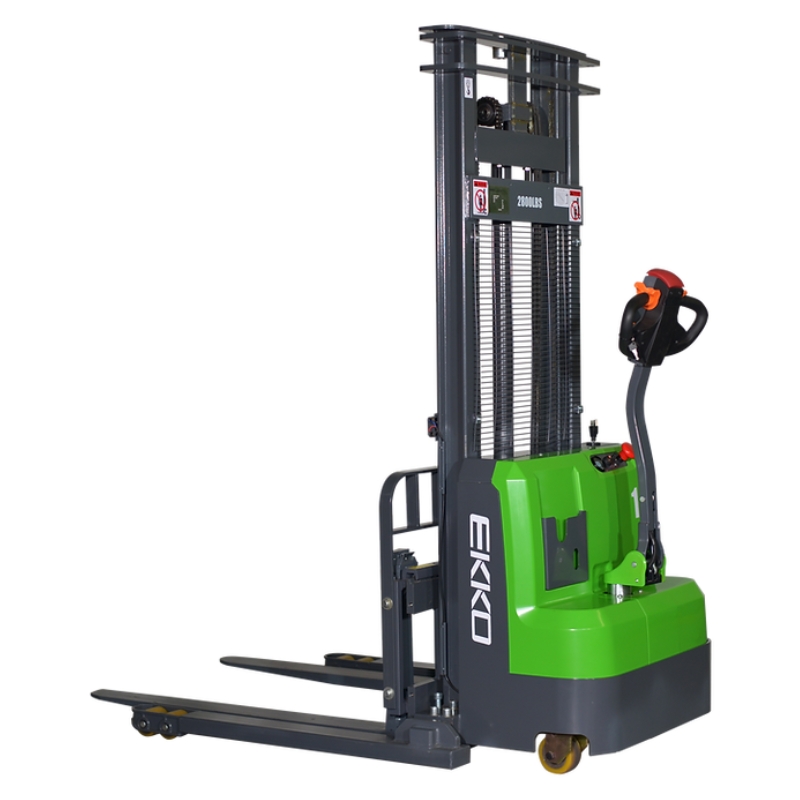

Lithium Straddle Stacker Eb14Cs-118Li, 3,000 Lbs. Capacity

Lithium Straddle Stacker Eb14Cs-118Li, 3,000 Lbs. Capacity - Image 2

Click to enlarge

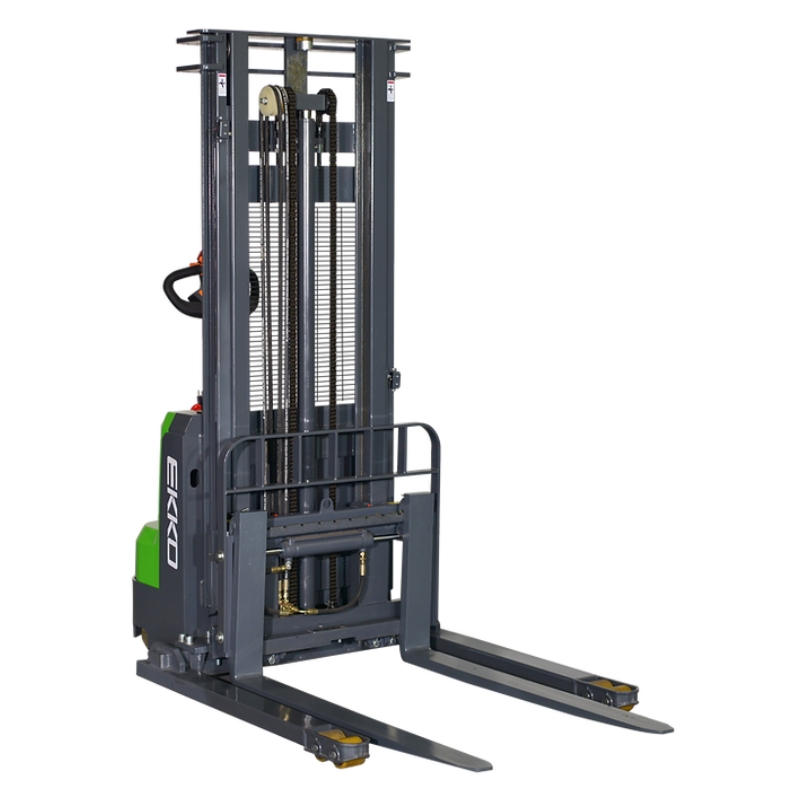

Lithium Straddle Stacker EB14CS-118LI, 3,000 lbs. Capacity - Image 3

Lithium Straddle Stacker EB14CS-118LI, 3,000 lbs. Capacity

Name: Ekko Lifts EB14CS-118LI Lithium Stacker, 3,000 lbs. Capacity
Brand: EKKO Lifts
SKU: EB14CS-118LI
Price: 7748.00 USD
Availability: InStock

The EKKO EB14CS-118LI Straddle Stacker lifts up to 3,000 lbs. with lithium-ion power, side shift, and an internal charger. It’s designed for smooth, efficient pallet handling in tight indoor spaces.

SKU: EB14CS-118LI Categories: Pallet Stacker, Electric Pallet Stacker

$7,748.00

Add to wishlist

Add to compare

Product Specifications

Service weight	1,520 lbs.
Load capacity lb	3,000 lb.
Lifting height	118"
Load center in	24
Fork length in	45.3"
Fork width in	4"
Fork adjustment width	8.7-32.1"
Lowered fork height in	2.6"
Adjustable legs	35.4-51.2"
Turning radius	60.8"
Overall length in	73.7"
Overall width	61"
Extended mast height	147.6"
Lowered mast height	81.7"
Internal charger	24V/20A
Driving motor	DC Drive Motor
Lifting motor	2.2kW
Battery	24V/50Ah Lithium
Brand	EKKO Lifts Ekko Lifts is a trusted provider of high-performance material handling equipment, specializing in electric forklifts, pallet stackers, and lift trucks. Their innovative solutions enhance workplace efficiency, safety, and productivity across warehouses, distribution centers, and industrial facilities.

The EKKO EB14CS-118LI Full Lithium-Powered Straddle Stacker with Side Shift offers efficient indoor pallet handling with enhanced control and flexibility. Powered by a 24V/50Ah lithium-ion battery and a 750W DC drive motor, this model delivers fast charging, low maintenance, and consistent performance. It supports a 3,000 lb. lifting capacity, 45-inch forks, an 81.7-inch lowered mast, and a maximum lift height of 118 inches—perfect for warehouses and tight storage areas.

With side shift functionality, a Curtis controller, and internal charger, operators benefit from precise load placement and easy recharging. Its 1,520 lb. frame and poly tires make it ideal for use on clean, level indoor surfaces.
