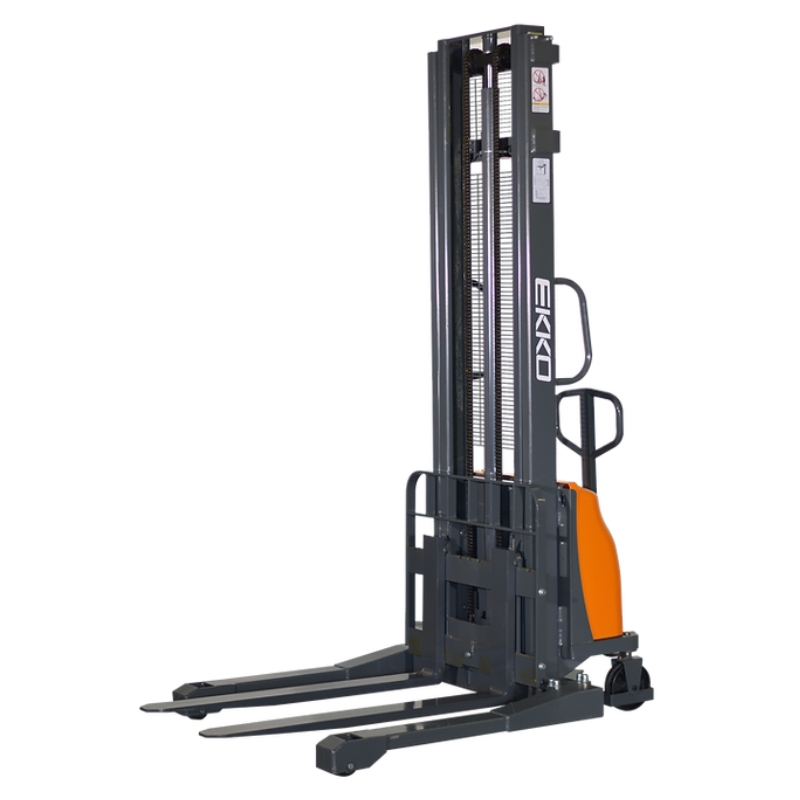

Semi-Electric Stacker EA15A, 3,300 lbs. Capacity

The EKKO EA15A Semi-Electric Straddle Stacker lifts up to 3,300 lbs with electric lift and manual push. It’s powered by a 12V battery and built for simple, stable performance in indoor settings.

SKU: EA15A Categories: ,

$4,158.00

SlimCD Payment Icon Image

Product Specifications

Weight 1225 lbs
Shipping Dimensions 65 × 48 × 88 in
Service Weight (lbs.) 1212 lbs.
Load Capacity (lbs.) 3300 lbs.
Max Lift Height (in.) 118″
Load Center (in.) 20″
Fork Length (in.) 45″
Fork Width (in.) 4″
Lowered Height (in.) 2.6″
Overall Length (in.) 70″
Adjustable Legs 35″-51″
Turning Radius (in.) 59″
Extended Mast Height (in.) 147″
Lowered Mast Height (in.) 85″
Lift Motor 2.2kW
Battery 12/120 V/Ah
Battery Charger 12V/15A
Brand

The EKKO EA15A Semi-Electric Straddle Stacker is a practical and efficient solution for lifting and stacking in light-duty warehouse or retail environments. With a 3,300 lb lifting capacity, 45-inch forks, an 85-inch lowered mast, and a maximum lift height of 118 inches, it’s ideal for mid-level racking and pallet handling. This model combines electric-powered lifting with manual pushing, offering excellent control without the cost of a fully electric drive system.

It runs on a 12V/120Ah battery and includes an internal charger for easy operation and minimal downtime. Nylon wheels and a 1,212 lb frame ensure smooth movement and stable performance on clean, level indoor floors.
