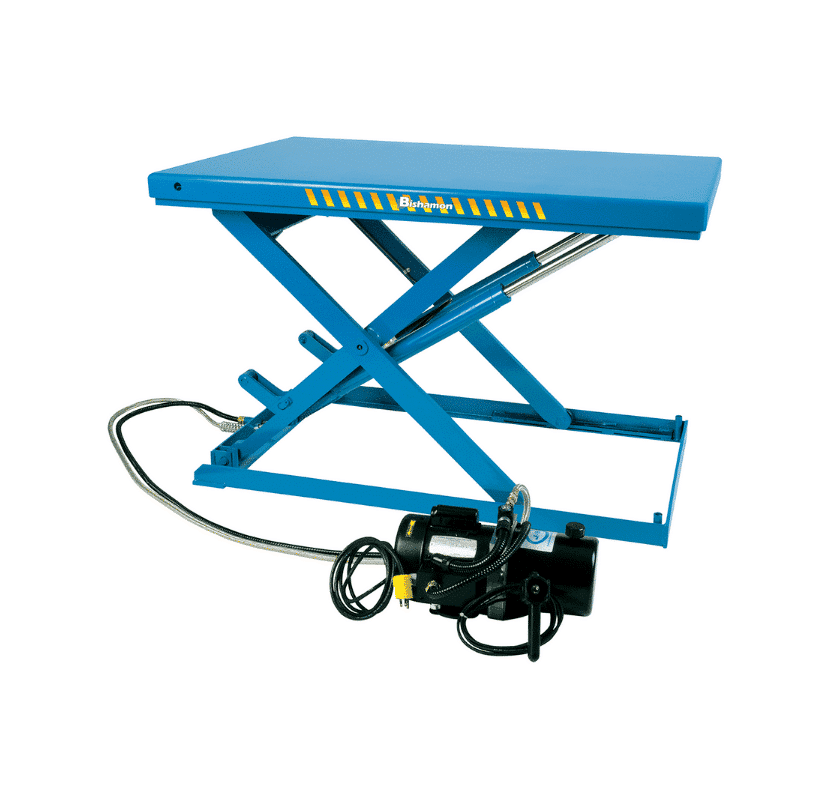

Bishamon’s LX-25S Low Profile Lift Table offers 550 pounds of lifting capacity with a convenient low profile. This table feature, optional foot-operated control, lowered heights of 2.9 inches, and a platform size of 23.5 x 32.5 inches. With the optional approach ramp accessory, these are ideal for pallet trucks, products, parts, carts, or other portable industrial equipment.
- Vertical Travel: 18.0 in.
- Max. Height: 20.9 in.
- Min. Height: 2.9 in.
- Time to Max. Height: 7 sec.
- Time to Min. Height: 5 sec.
- Power Units: 1/2 HP / 115V (single phase)
- Operator Control Voltage: 24V
- Approx. Ship Weight: 213 lbs.

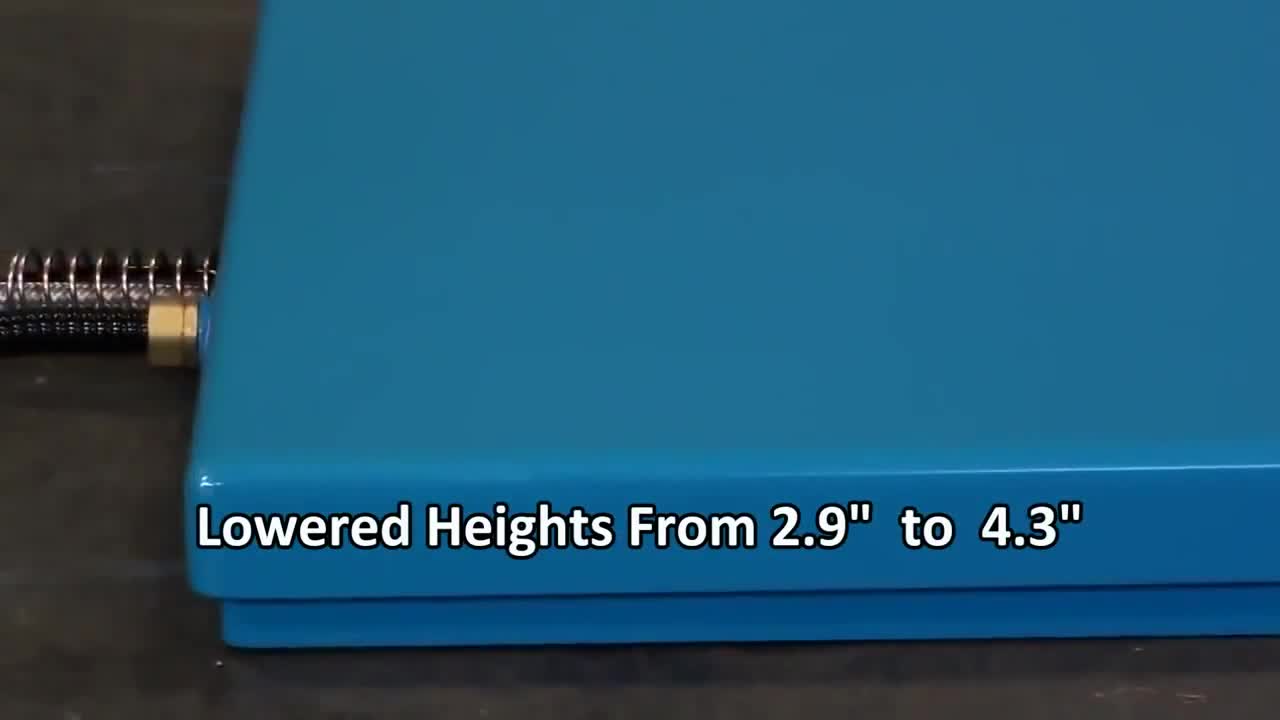

- Extremely low collapsed heights of 2.9 in. to 4.3 in. provide access for rolling products, carts, or pallet trucks.

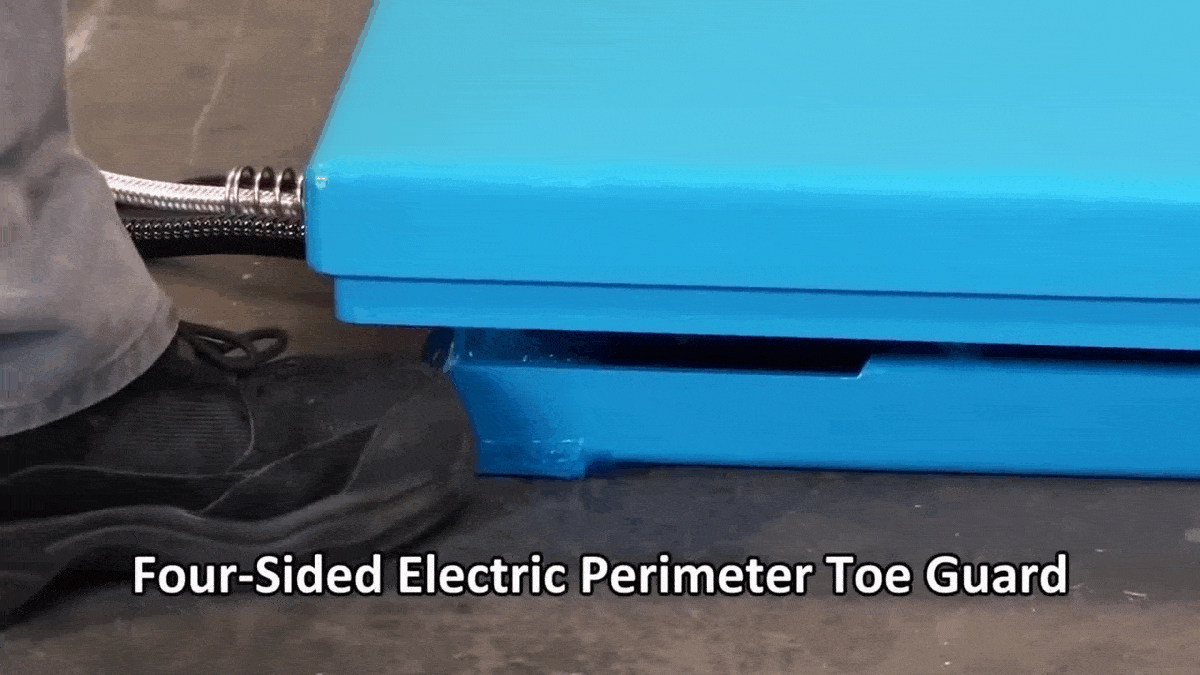

- Electric full-perimeter toe guard around the platform provides optimum operator safety.
- Heavy-duty construction with captured scissor rollers for maximum stability and baked enamel finish.
- High-performance external electric-hydraulic remote power unit with 8 ft. long steel braided hydraulic hose.
- Handheld operator control unit with 8 ft. of cord. (foot-operated control optional)

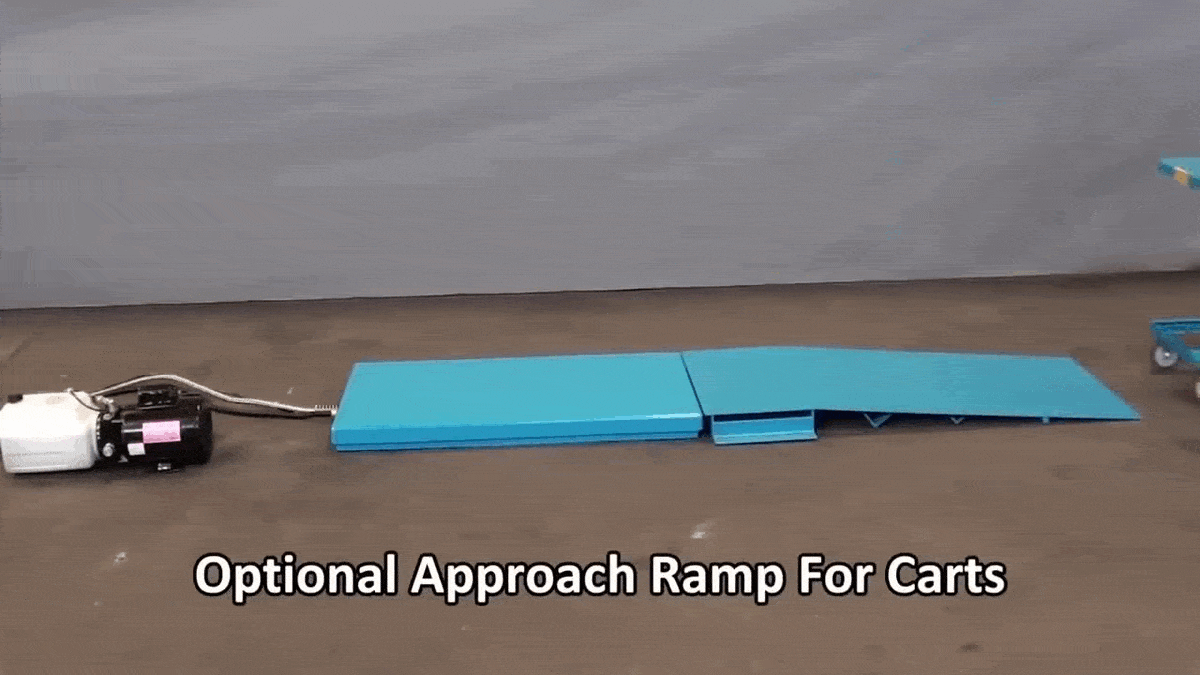

- Approach ramps are available for easier access for carts and pallet trucks. (pallet truck ramps are longer and shallower)
