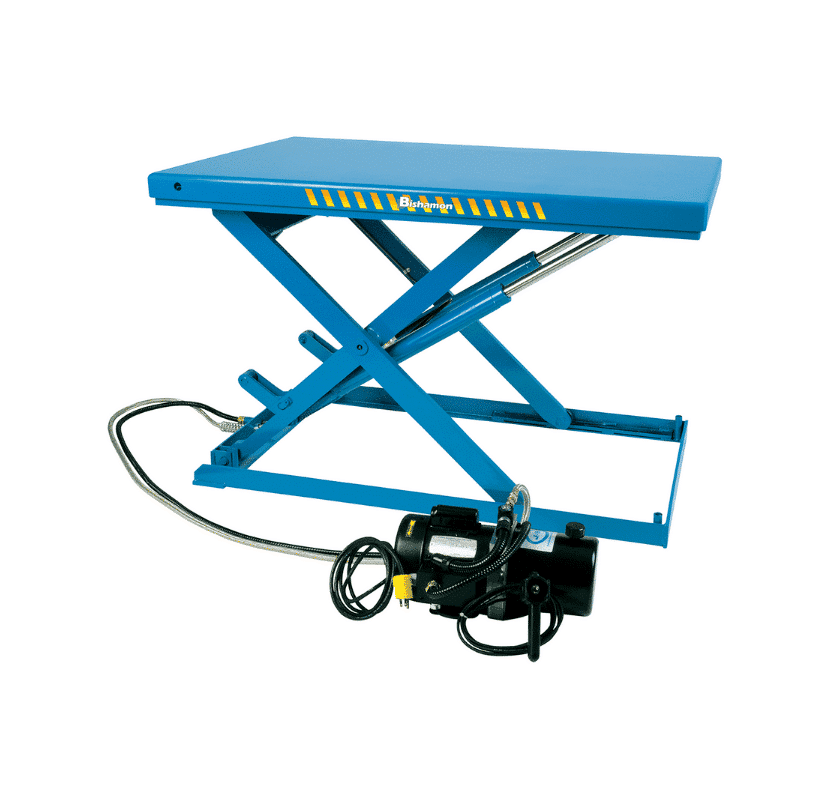

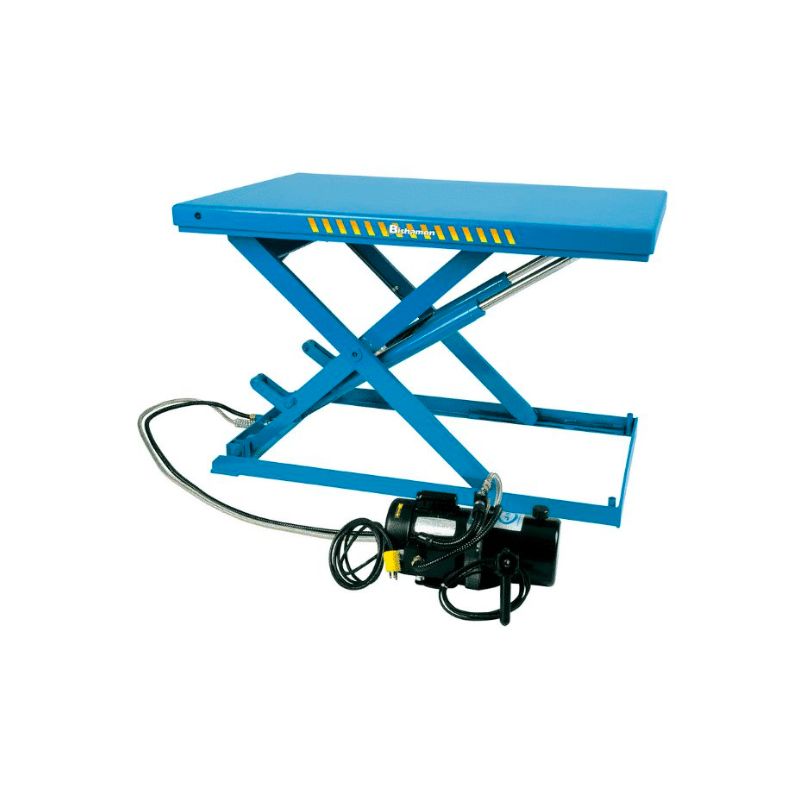

Bishamon LX-200WL Low Profile Lift Table offers 4,400 pounds of lifting capacity with a convenient low profile. This table feature, optional foot-operated control, lowered heights of 4.3 inches, and a platform size of 45.5 inches x 81 inches. With the optional approach ramp accessory, these are ideal for pallet trucks, products, parts, carts, or other portable industrial equipment.
- Vertical Travel:Â 35.1 in.
- Max. Height:Â 39.4 in.
- Min. Height:Â 4.3 in.
- Time to Max. Height: 34 sec. (115V motor may increase the time by up to 50%)
- Time to Min. Height:Â 26 sec.
- Power Units:
- 1 HP / 115V or 230V (single phase)
- 1 HP / 230V or 480V (three phase)
- Operator Control Voltage:Â 24V
- Approx. Ship Weight:Â 1,435 lbs.

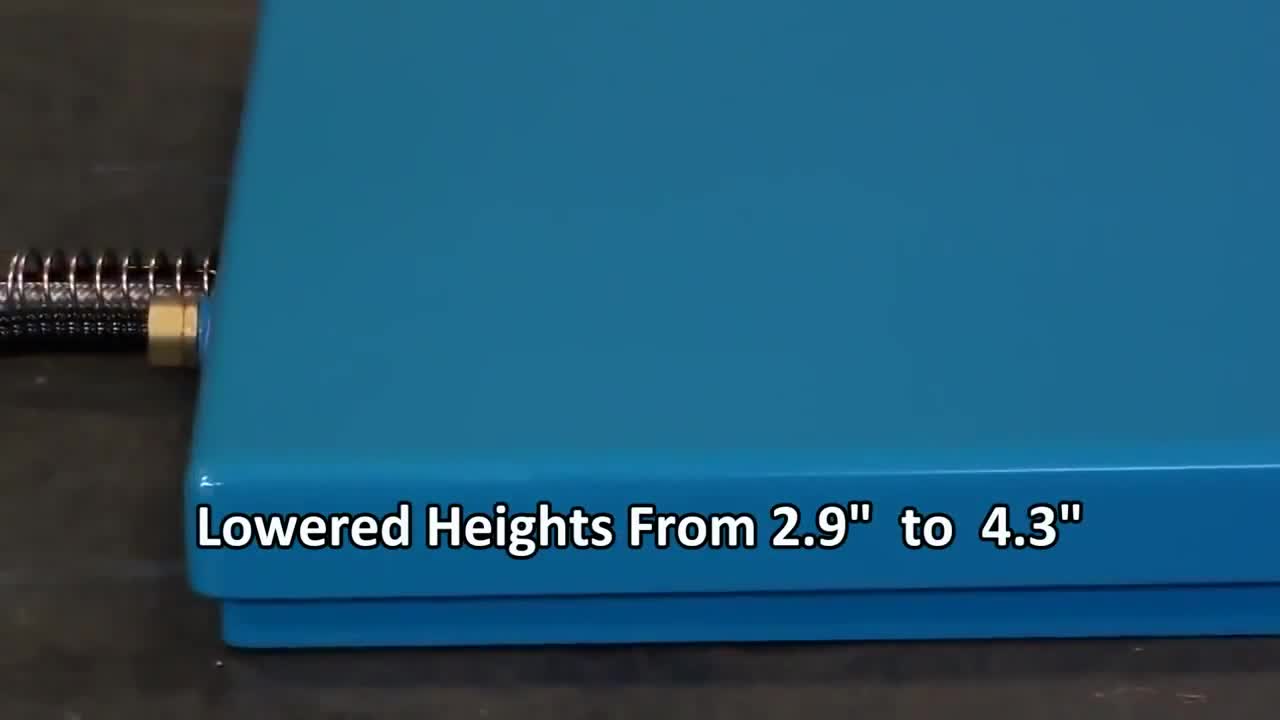

- Extremely low collapsed height of 4.3 in. provides access for rolling products, carts, or pallet trucks.
- Electric full-perimeter toe guard around the platform provides optimum operator safety.
- Heavy-duty construction with captured scissor rollers for maximum stability and baked enamel finish.

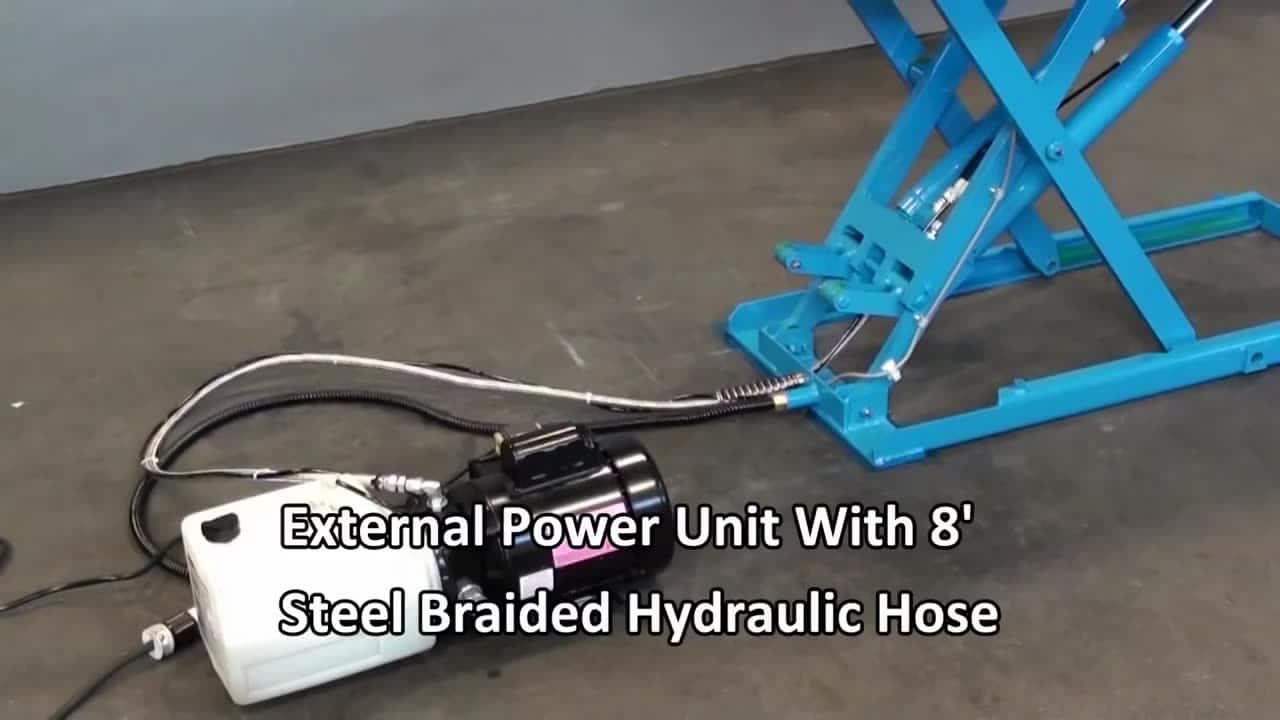

- High-performance external electric-hydraulic remote power unit with 8 ft. long steel braided hydraulic hose.

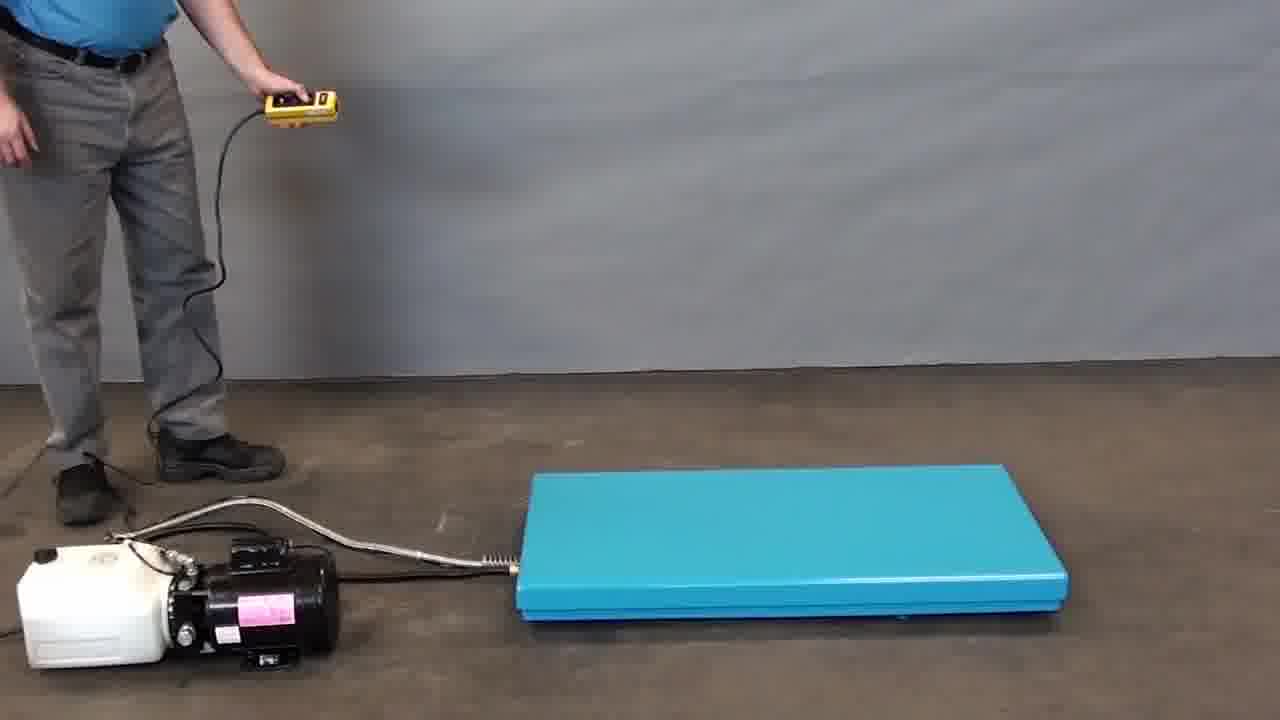

- Handheld operator control unit with 8 ft. of cord. (foot-operated control optional)

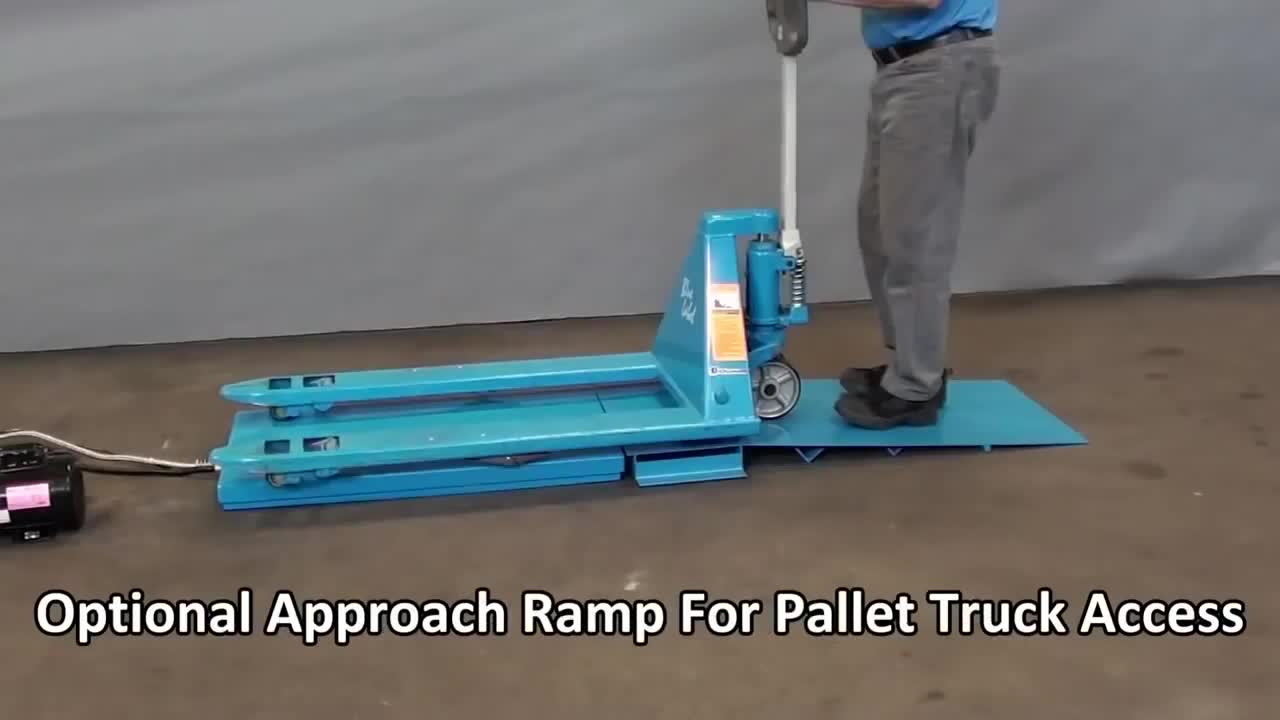

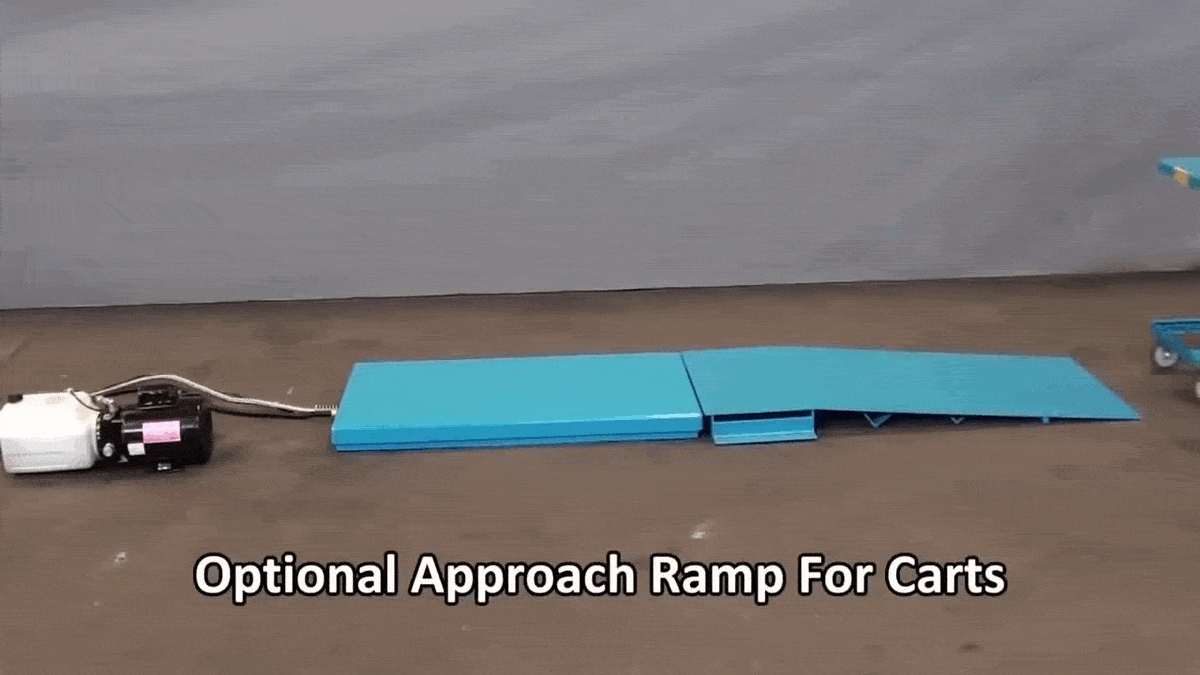

- Approach ramps are available for easier access for carts and pallet trucks. (pallet truck ramps are longer and shallower)
