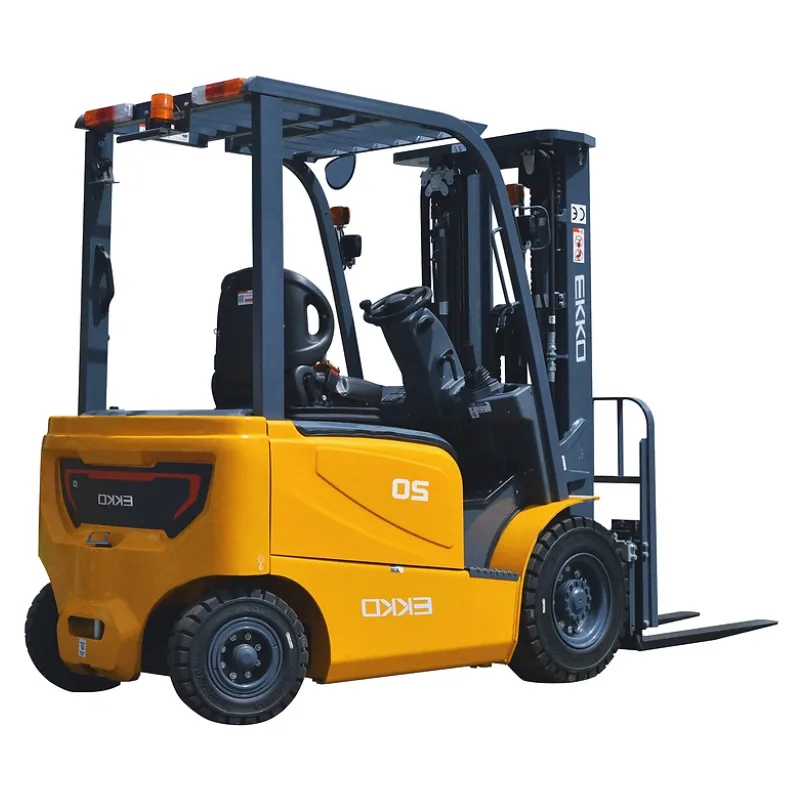

4-Wheel Electric Forklift EK20GS, 4,500 lbs. Capacity

The EKKO EK20GS 4-Wheel Electric Forklift lifts up to 4,500 lbs. and runs on a 48V lead acid battery with ZAPI controller. It includes side shift, tilt, and solid pneumatic tires for smooth handling in mixed environments.

SKU: EK20GS Category:

$29,399.00

SlimCD Payment Icon Image

Product Specifications

Weight 9232 lbs
Shipping Dimensions 133 × 47 × 80 in
Drive Type Electric
Service Weight (lbs.) 9620 lbs.
Load Capacity (lbs.) 4500 lbs.
Load Center (in.) 24
Max Lift Height (in.) 189″
Wheelbase (in.) 65.4″
Tilt 6/6 (deg)
Tire Material Solid Pneumatic Tire
Service Brake Hydraulic Foot Pedal
Overall Width (in.) 46.45″
Turning Radius (in.) 85″
Travel Speed (mph) 9/9.3 (mph)
Lowered Mast Height (in.) 79″
Free Lift Height (in.) 47.48″
Side Shifting Forks 3-Way Valve
Engine Mode Zapi Controller
Brand

The EKKO EK20GS 4-Wheel Electric Forklift is designed for powerful and reliable performance in both indoor and light outdoor environments. Equipped with a 48V/600Ah lead acid battery and ZAPI controller, it delivers smooth electric power with long runtimes and low maintenance. This model supports a 4,500 lb. lifting capacity, 42-inch forks, an 83-inch lowered mast height, and a maximum lift height of 189 inches.

Key features include side shift, free lift, tilt, and a blue safety light for added visibility. The 4-lever control system and AC drive motor offer responsive handling, while the solid pneumatic tires and 9,620 lb. frame provide solid traction and stability across different surfaces.
