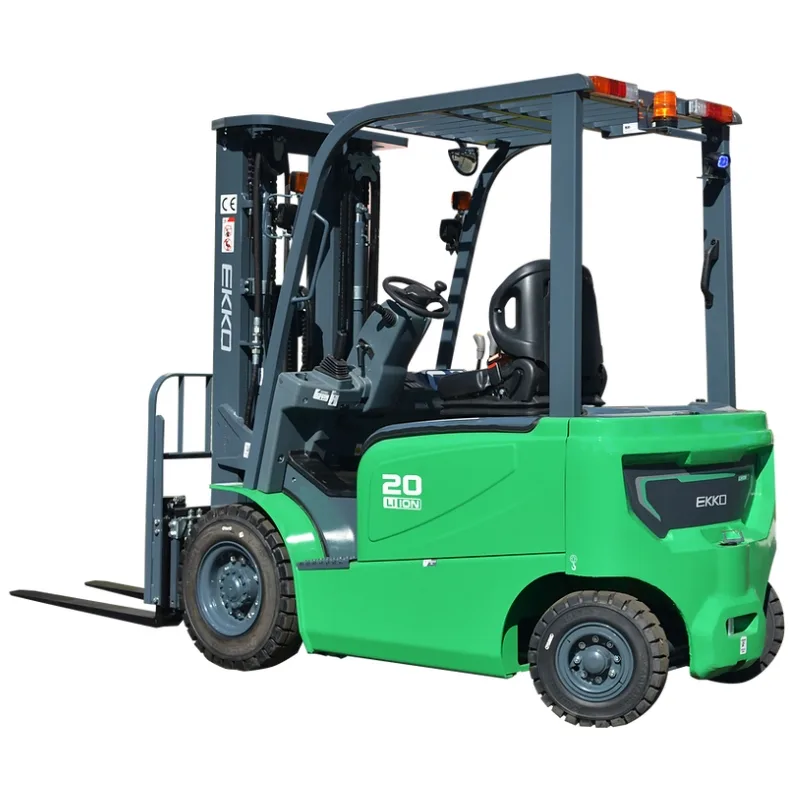

4 Wheel Electric Forklift EK20G-Li, 4,500 lbs.

The EKKO EK20G-LI 4-Wheel Electric Forklift lifts up to 4,500 lbs. and runs on an 80V lithium battery with 2-hour fast charging. It features side shift, tilt, and solid pneumatic tires for efficient and low-maintenance operation.

SKU: EK20G-LI Category:

$30,798.60

SlimCD Payment Icon Image

Product Specifications

Weight 9032 lbs
Shipping Dimensions 133 × 47 × 83 in
Drive Type Lithium Forklift
Service Weight (lbs.) 9032 lbs.
Load Capacity (lbs.) 4500 lbs.
Load Center (in.) 20
Max Lift Height (in.) 189″
Wheelbase (in.) 65.4″
Tire Material Solid Pneumatic Tire
Service Brake Hydraulic Foot Pedal
Overall Width (in.) 46.45″
Overall Length (in.) 133″
Overall Length W/O Forks (in.) 96″
Turning Radius (in.) 85″
Travel Speed (mph) 9/9.3 (mph)
Lowered Mast Height (in.) 79″
Free Lift Height (in.) 47.48″
Tilt 6/6 (deg)
Fork Thickness (in.) 1.57″
Fork Width (in.) 4.72″
Fork Length (in.) 42.12″
Fork Adjust Width (in.) 8.7-29″
Lift Motor 12kw
Engine Mode Zapi Controller
Brand

The EKKO EK20G-LI 4-Wheel Electric Forklift offers clean, efficient power with the convenience of lithium technology. Powered by an 80V/202Ah lithium battery with a 2-hour fast charge time, it’s designed to maximize uptime and reduce maintenance. This model supports a 4,500 lb. lifting capacity and features 42-inch forks, an 83-inch lowered mast, and a 189-inch maximum lift height.

It comes equipped with side shift, free lift, tilt, and a blue safety light for improved control and visibility. The ZAPI controller, AC drive motor, and 4-lever control system ensure smooth and responsive operation. With solid pneumatic tires and a 9,420 lb. frame, it’s built for stable performance on a range of surfaces.
