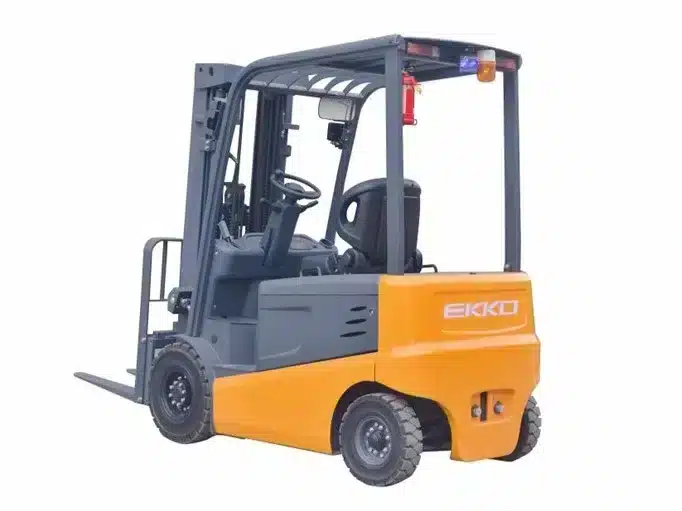

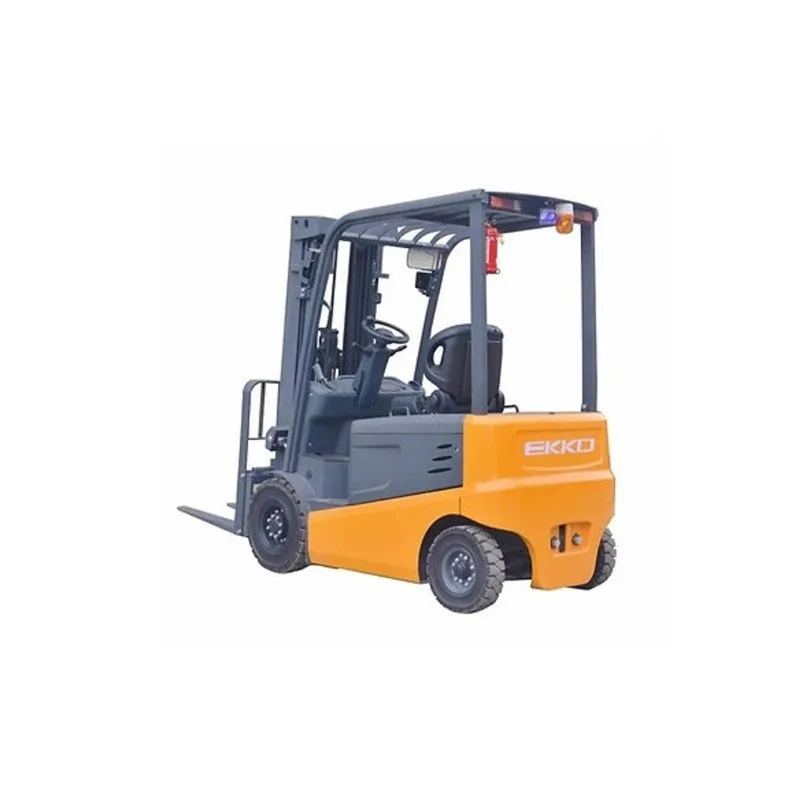

EKKO EK20GL 4 Wheel Electric Forklift

The EKKO EK20GL 4 Wheel Electric Forklift is an asset designed to tackle all of your material handling needs. From truck unloading and loading at docks, stock rooms, manufacturing floors, and warehousing facilities– this forklift has been manufactured with superior steel components capable of standing up to the toughest terrain or application changes with guaranteed quality drives.

SKU: EK20GL Category:

$29,999.00

Material Handling Small Logo
SlimCD Payment Icon Image

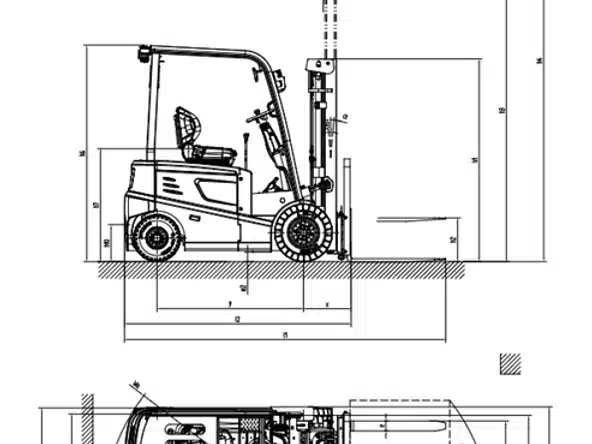

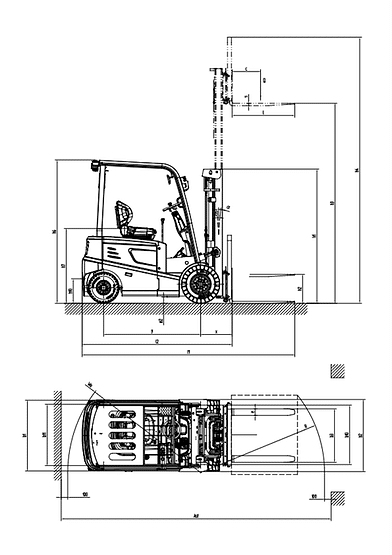

Product Specifications

Weight 8830 lbs
Shipping Dimensions 133 × 45 × 89 in
Model no

EK20GL

Lift

Electric

Drive

Electric

Load center distance

19.68"

Wheelbase

59.84"

Lifting height

189"

Free lifting height

43.4"

Lowered mast height

83.94"

Side shifting forks

3-Way Valve

Overall length

132.28"

Overall width

42.12"/42.91"

Fork adjust width in

9.4-34.25"

Turning radius in

86.02"

Lift speed laden unladen

9.45/12.6

Charger

48V/65A

Driving motor

7.5

Lift motor kw

7.7

Battery voltage

48V/400Ah

Service weight

8,770

Warranty

3 Year Warranty

Brand

EKKO Lifts

Ekko Lifts is a trusted provider of high-performance material handling equipment, specializing in electric forklifts, pallet stackers, and lift trucks. Their innovative solutions enhance workplace efficiency, safety, and productivity across warehouses, distribution centers, and industrial facilities.

The EKKO EK20GL 4 Wheel Electric Forklift is an asset designed to tackle all of your material handling needs. From truck unloading and loading at docks, stock rooms, manufacturing floors, and warehousing facilities– this forklift has been manufactured with superior steel components capable of standing up to the toughest terrain or application changes with guaranteed quality drives.

  • Load Capacity 4500 lb
  • Raised Height 189″ (15.75ft)
  • Side Shifting Forks
  • Free Lift 43.4”
  • Adjustable Forks 9.4-34.25″
  • Fork Length 42“
  • Hydraulic Steering
  • Curtis Instrument Controller
  • AC Drive Motor 7500 Watts
  • 7700 Watts Lifting Motor
  • Battery 48V/400Ah
  • Solid Cushion Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 48V/65A 480V
  • 3-Year Limited Warranty
