Ekko Ek22-189Li 4 Wheel Electric Forklift

Ekko Ek22-189Li 4 Wheel Electric Forklift - Ekko Ek22-189Li 4 Wheel Electric Forklift - Material Handling

Click to enlarge

Price Match

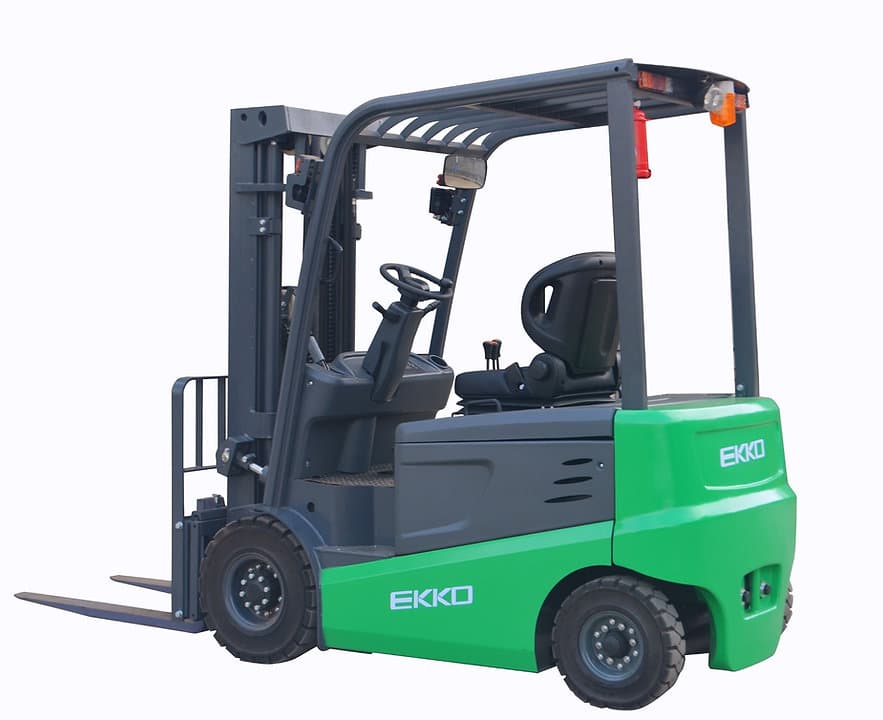

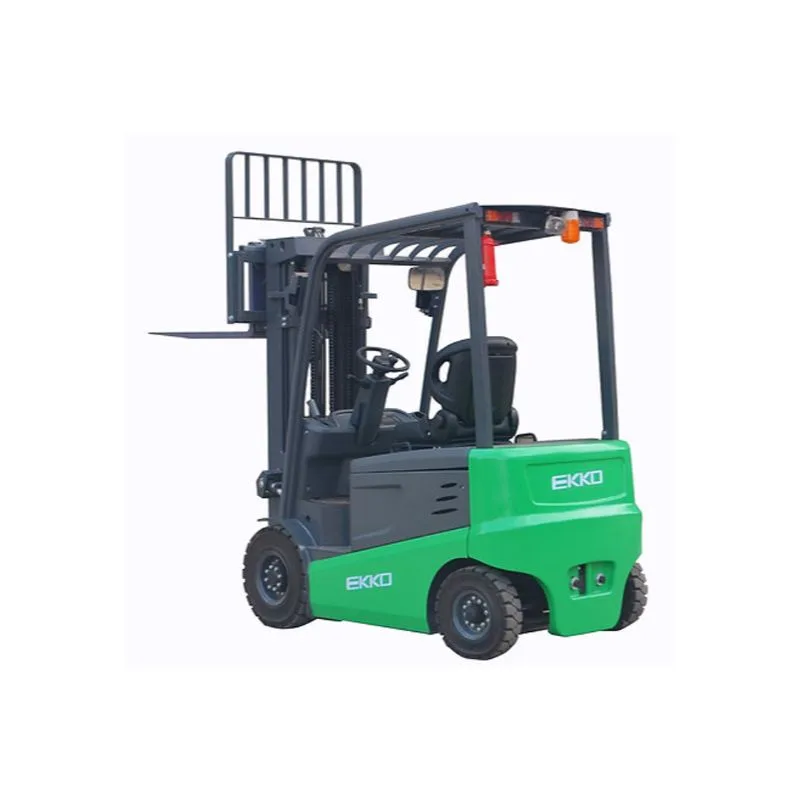

EKKO EK22-189LI 4 Wheel Electric Forklift

$36,599.00

Get your material handling done in record time with the EKKO EK22-189LI 4 Wheel Electric Forklift! Its lithium battery charges quickly – only 2.5 hours is all it takes to get back up and running. It’s designed for smooth operation, featuring high-quality steel components that endure tough terrain and handle directional changes without fail. Perfect for loading trucks or stocking shelves at warehouses, dockside stock rooms, manufacturing floors…the possibilities are endless!

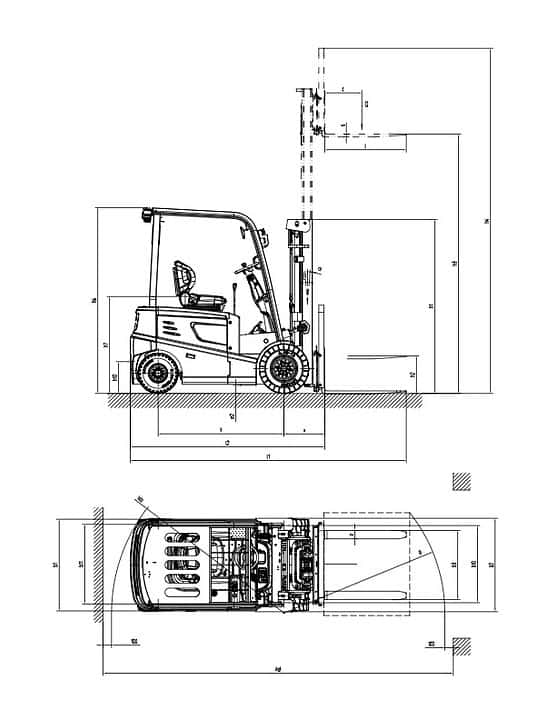

Weight	9065 lbs
Model No.	EK22-189LI
Lift	Electric
Drive	Sit Down
Load Center Distance	19.68"
Wheelbase	59.84"

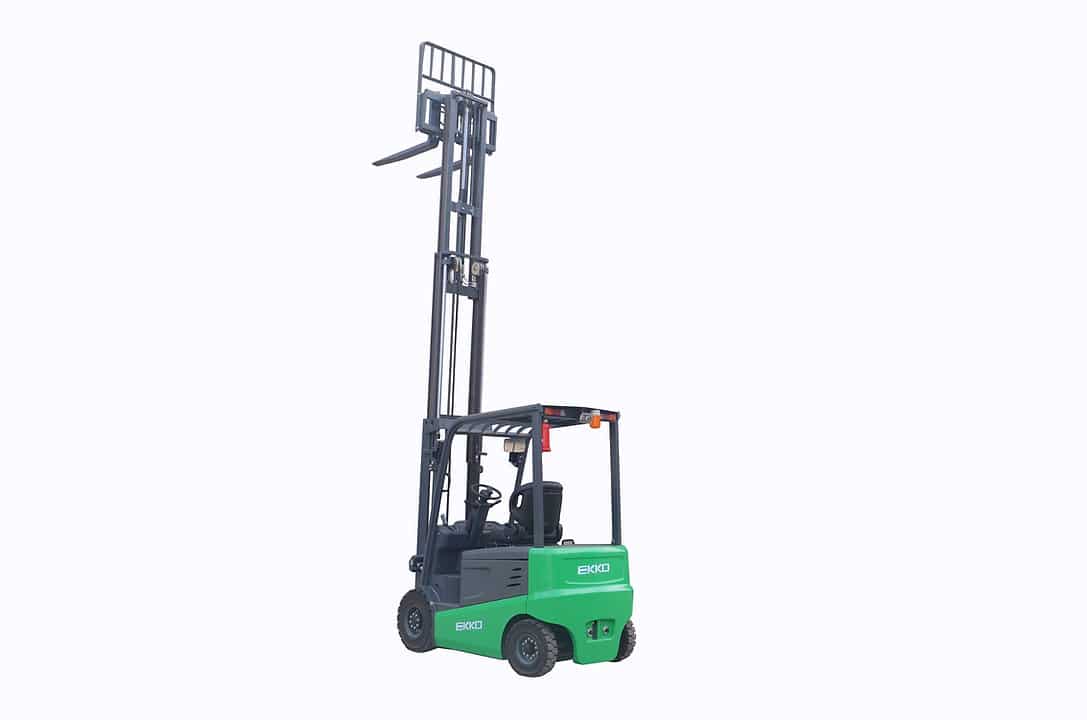

Lifting Height	189"
Free Lifting Height	43.4"
Lowered Mast Height	83.94"
Mast/Fork Carriage Movement	6/6
Side Shifting Forks	3-Way Valve
Overall Length	132.28"
Overall Width	42.12"/42.91"
Fork Adjust Width (in.)	8.7"-29"
Turning Radius (in.)	86.02"
Max Gradient Performance (Laden/Unladen)	6/8
Lift Speed (Laden/Unladen)	9.45/12.6
Lowering Speed (Laden/Unladen)	8/6.8
Charger	48V/60A
Driving Motor	7.5
Lift Motor KW	7.7
Battery Voltage	48V/404Ah Litium
Service Weight	9,065
Brand	EKKO Lifts
Warranty	3 Year Warranty

SKU: EK22-189Li Category: Forklift

EKKO Lifts

Description

Load Capacity 5000 lb
Raised Height 189″ (15.75ft)
Side Shifting Forks
Free Lift 43.4”
Adjustable Forks 9.4-34.25″
Fork Length 42“
Hydraulic Steering
Curtis Instrument Controller
AC Drive Motor 7500 Watts
7700 Watts Lifting Motor
Battery 48V/404Ah Lithium (Included)
Solid Cushion Tires
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger 48V/60A 480V
3 Year Limited Warranty
