$19,999.00

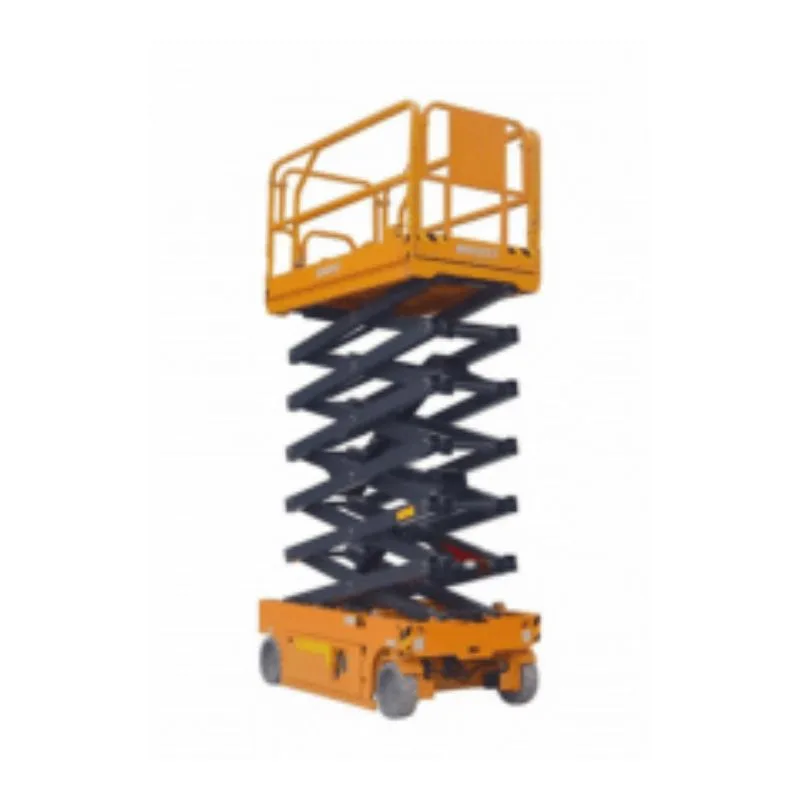

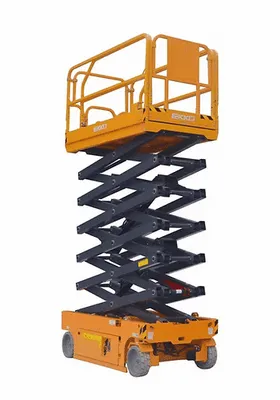

A must-have for professionals, the EKKO ES60E Scissor Aerial Work Platform Lift brings versatility and convenience to any workspace. With a 506lb capacity, four wheels, and Curtis controller it’s easy to lift loads, and move products around safely – all while meeting GB25849 & EN280 standards!
| Weight | 3256 lbs |
|---|---|
| Service Weight |
3256 |
| Warranty |
3 Year Warranty |
| Raised Height (in.) |
19' |
| Lowered Height (in.) |
86'' |
| Max Height (in) |
25.5' |
| Max platform height |
19' |
| Handle Height (in.) |
38.2 |
| Size |
Length 65" x Width 30" |
| Overall height (in) |
72.44 |
| load rating (LBS) |
506 |
| Gradeability (%) |
30 |
| Lift/drive motor (kW) |
2.2/0.7×2 |
| Battery Voltage |
6×4/225 |
| control voltage (VDC) |
24 |
| Hydraulic tank capacity (L) |
8 |
| Model No. |
ES60E |
| Brand |
EKKO Lifts |
Out of stock
A must-have for professionals, the EKKO ES60E Scissor Aerial Work Platform Lift brings versatility and convenience to any workspace. With a 506lb capacity, four wheels, and Curtis controller it’s easy to lift loads, and move products around safely – all while meeting GB25849 & EN280 standards!
[mc4wp_form id="74"]
Do you have questions about our products? Send us an email and we’ll get in touch shortly.
Out of stock
| Weight | 3542 lbs |
|---|---|
| Uniform Capacity (lb.) |
4400 lb |
| Fork Width (in.) |
9.8-31.5 |
| Fork Length (in.) |
45.28 |
| Raised Height (in.) |
216 |
| Center Drive Motor |
24V |
| Lift Motor |
24V |
| Internal Charger |
24V/30A |
| Battery |
24V/210Ah |
| Wheel Type |
Polyurethane |
| Adjustable Forks |
9.8-31.5“ |
| Adjustable Legs |
38.06-51.8” |
| Loaded Travel Speed (km/h) |
5.2 |
| Unloaded Travel Speed (km/h) |
5.5 |
| Other Features |
Curtis Instrument Controller, Ergonomic Handle and Controls, Robotic Welding, Steel Construction |
| Brand |
EKKO Lifts |
Out of stock
| Weight | 5412 lbs |
|---|---|
| Model No. |
ES80E |
| Service Weight |
5412 |
| Warranty |
3 Year Warranty |
| Raised Height (in.) |
26.2' |
| Lowered Height (in.) |
90.6'' |
| Max platform height |
26.2' (315'') |
| load rating (LBS) |
990 |
| Size |
Length 89" x Width 45" |
| Tyre specification (in) |
15*5 |
| Gradeability (%) |
30 |
| Lift/drive motor (kW) |
3.3/0.7×2 |
| Battery Voltage |
6×4/225 |
| control voltage (VDC) |
24 |
| Hydraulic tank capacity (L) |
22 |
| Brand |
EKKO Lifts |
Out of stock
| Weight | 1365 lbs |
|---|---|
| Uniform Capacity (lb.) |
2800 lb |
| Fork Width (in.) |
8.3-33.5 |
| Fork Length (in.) |
45.3 |
| Raised Height (in.) |
138 |
| Center Drive Motor |
24V |
| Lift Motor |
24V |
| Internal Charger |
24V/15A |
| Battery |
24V/50Ah Lithium |
| Wheel Type |
Polyurethane |
| Adjustable Forks |
8.3-33.5“ |
| Adjustable Legs |
45.7-59.1” |
| Loaded Travel Speed (km/h) |
4.0 |
| Unloaded Travel Speed (km/h) |
4.2 |
| Other Features |
Curtis Instrument Controller, Ergonomic Handle and Controls, Robotic Welding, Steel Construction |
| Brand |
EKKO Lifts |
Out of stock
| Weight | 3840 lbs |
|---|---|
| Uniform Capacity (lb.) |
3300 lb |
| Fork Width (in.) |
8.6-28.3 |
| Fork Length (in.) |
45.3" |
| Raised Height (in.) |
130" |
| Lift Motor |
24V/2500W |
| Internal Charger |
24V/30A |
| Battery |
24V/210Ah |
| Adjustable Forks |
8.6-28.3" |
| Other Features |
Curtis Controller, Ergonomic Handle and Controls, Robotic Welding, Steel Construction |
| Brand |
EKKO Lifts |
Out of stock
| Weight | 7500 lbs |
|---|---|
| Model No. |
EK20RL |
| Lift |
Electric |
| Drive |
Sit Down |
| Load Center Distance |
24 |
| Wheelbase |
55.5" |
| Lifting Height |
189" |
| Free Lifting Height |
65 |
| Lowered Mast Height |
84" |
| Mast/Fork Carriage Movement |
3/6 |
| Side Shifting Forks |
3-Way Valve |
| Overall Length |
134" |
| Overall Width |
42" |
| Fork Adjust Width (in.) |
9.4"-35.6" |
| Turning Radius (in.) |
84.6" |
| Max Gradient Performance (Laden/Unladen) |
12/15 |
| Lift Speed (Laden/Unladen) |
7.5/9 |
| Lowering Speed (Laden/Unladen) |
9.5/10.2 |
| Charger |
48V/65A |
| Driving Motor |
ZF AC 48V/7500 |
| Lift Motor KW |
7,700 |
| Battery Voltage |
48V/420Ah (Side) |
| Service Weight |
7,500 |
| Brand |
EKKO Lifts |
| Warranty |
3 Year Warranty |
Out of stock
| Weight | 9065 lbs |
|---|---|
| Model No. |
EK22-189LI |
| Lift |
Electric |
| Drive |
Sit Down |
| Load Center Distance |
19.68" |
| Wheelbase |
59.84" |
| Lifting Height |
189" |
| Free Lifting Height |
43.4" |
| Lowered Mast Height |
83.94" |
| Mast/Fork Carriage Movement |
6/6 |
| Side Shifting Forks |
3-Way Valve |
| Overall Length |
132.28" |
| Overall Width |
42.12"/42.91" |
| Fork Adjust Width (in.) |
8.7"-29" |
| Turning Radius (in.) |
86.02" |
| Max Gradient Performance (Laden/Unladen) |
6/8 |
| Lift Speed (Laden/Unladen) |
9.45/12.6 |
| Lowering Speed (Laden/Unladen) |
8/6.8 |
| Charger |
48V/60A |
| Driving Motor |
7.5 |
| Lift Motor KW |
7.7 |
| Battery Voltage |
48V/404Ah Litium |
| Service Weight |
9,065 |
| Brand |
EKKO Lifts |
| Warranty |
3 Year Warranty |
Out of stock
| Weight | 9285 lbs |
|---|---|
| Model No. |
EK22-216LI |
| Lift |
Electric |
| Drive |
Electric |
| Load Center Distance |
19.68" |
| Wheelbase |
59.84" |
| Lifting Height |
216" |
| Free Lifting Height |
43.4" |
| Lowered Mast Height |
93.11" |
| Mast/Fork Carriage Movement |
6/6 |
| Side Shifting Forks |
3-Way Valve |
| Overall Length |
132.28" |
| Overall Width |
42.12"/42.91" |
| Fork Adjust Width (in.) |
8.7"-29" |
| Turning Radius (in.) |
86.02" |
| Max Gradient Performance (Laden/Unladen) |
6/8 |
| Lift Speed (Laden/Unladen) |
9.45/12.6 |
| Lowering Speed (Laden/Unladen) |
8/6.8 |
| Charger |
48V/60A |
| Driving Motor |
7.5 |
| Lift Motor KW |
7.7 |
| Battery Voltage |
48V/40Ah Lithium |
| Service Weight |
9,285 |
| Warranty |
3 Year Warranty |
| Brand |
EKKO Lifts |
Out of stock
| Weight | 8780 lbs |
|---|---|
| Model No. |
EK20-216LI |
| Lift |
Electric |
| Drive |
Electric |
| Load Center Distance |
19.68" |
| Wheelbase |
59.84" |
| Lifting Height |
216" |
| Free Lifting Height |
43.4" |
| Lowered Mast Height |
93.11" |
| Mast/Fork Carriage Movement |
6/6 |
| Side Shifting Forks |
3-Way Valve |
| Overall Length |
132.28" |
| Overall Width |
42.12"/42.91" |
| Fork Adjust Width (in.) |
8.7"-29" |
| Turning Radius (in.) |
86.02" |
| Max Gradient Performance (Laden/Unladen) |
6/8 |
| Lift Speed (Laden/Unladen) |
9.45/12.6 |
| Lowering Speed (Laden/Unladen) |
8/6.8 |
| Charger |
48V/60A |
| Driving Motor |
7.5 |
| Lift Motor KW |
7.7 |
| Battery Voltage |
48V/404Ah Litium |
| Service Weight |
8,780 |
| Warranty |
3 Year Warranty |
| Brand |
EKKO Lifts |
Out of stock
| Weight | 4718 lbs |
|---|---|
| Overall Length |
98 Inches |
| Overall Width |
32 Inches |
| Platform Height (in.) |
48-312 Inches |
| Platform Length (in.) |
90 Inches |
| Platform Width (in.) |
32 Inches |
| Power |
Battery |
| Battery Voltage |
12V |
| Capacity |
500 lbs. |
| Color List of colors this product comes in. |
Orange |
| Material |
Steel |
| Style |
Scissor |
| Type |
Scissor Lifts |
| Brand |
Ballymore |
| Overall Height |
92 Inches |
Out of stock
| Weight | 5533 lbs |
|---|---|
| Height |
96 Inches |
| Overall Length |
98 Inches |
| Overall Width |
46 Inches |
| Platform Height (in.) |
48 – 384 Inches |
| Platform Length (in.) |
90 Inches |
| Platform Width (in.) |
44 Inches |
| Capacity |
700 |
| Power |
Battery |
| Battery Voltage |
6V |
| Color List of colors this product comes in. |
Orange |
| Material |
Steel |
| Style |
Scissor |
| Type |
Scissor Lifts |
| Brand |
Ballymore |
Out of stock
