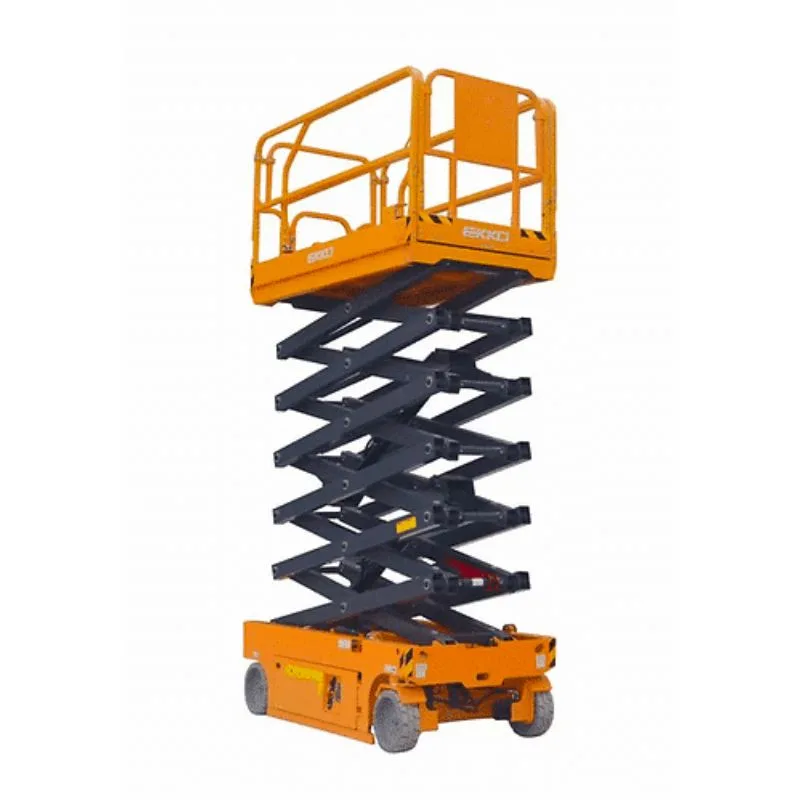

EKKO ES120E Scissor Aerial Work Platform Lift

Make lifting, transporting loads, and moving products a breeze with the EKKO ES120E Scissor Aerial Work Platform Lift! This innovative 700-lb capacity compact platform is equipped with four wheels and Curtis controller that ensures quick yet safe operations. Plus as an added bonus it also complies with GB25849 & EN280 standards for top quality assurance every time you use it.

SKU: ES120E Category:

$36,798.00

SlimCD Payment Icon Image

Product Specifications

Weight 6490 lbs
Shipping Dimensions 97 × 45 × 80 in
Model Number ES120E
Service Weight (lbs.) 6490
Warranty 3 Year Warranty
Raised Height (in.) 39
Lowered Height (in.) 102.36”
Max Platform Height (in.) 39′
Load Rating (lbs.) 700

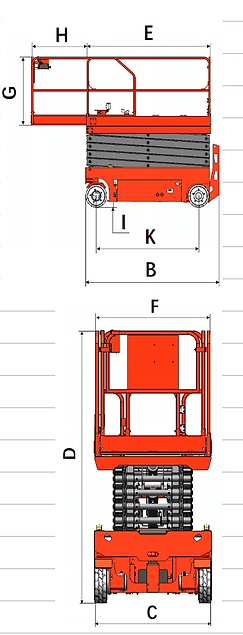

Size Length 89″ x Width 45″
Tire Specification (in.) 15*5
Gradeability 30
Lift/Drive Motor (kW) 3.3/0.7×2
Battery Voltage (V/Ah) 12×4/300
Control Voltage (VDC) 24
Hydraulic Tank Capacity (L) 22
Brand

Make lifting, transporting loads, and moving products a breeze with the EKKO ES120E Scissor Aerial Work Platform Lift! This innovative 700-lb capacity compact platform is equipped with four wheels and Curtis controller that ensures quick yet safe operations. Plus as an added bonus it also complies with GB25849 & EN280 standards for top quality assurance every time you use it.

  • Load Capacity 700 lb
  • Raised Height 39′ (468”)
  • Lowered Height 102.36”
  • Size: Length 89″ x Width 45″
  • Steel construction
  • 3 Years Limited Warranty
