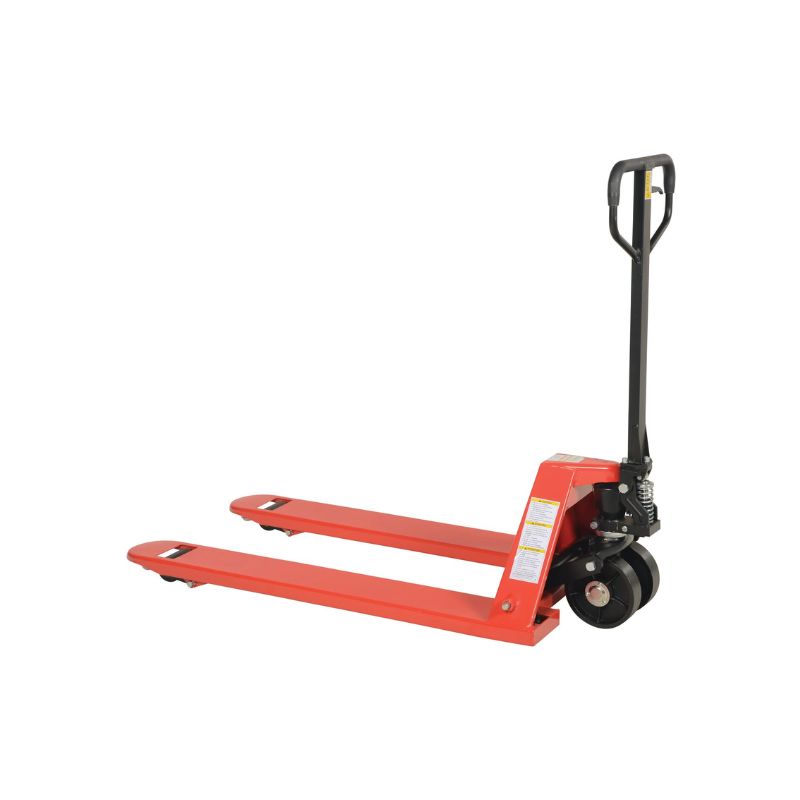

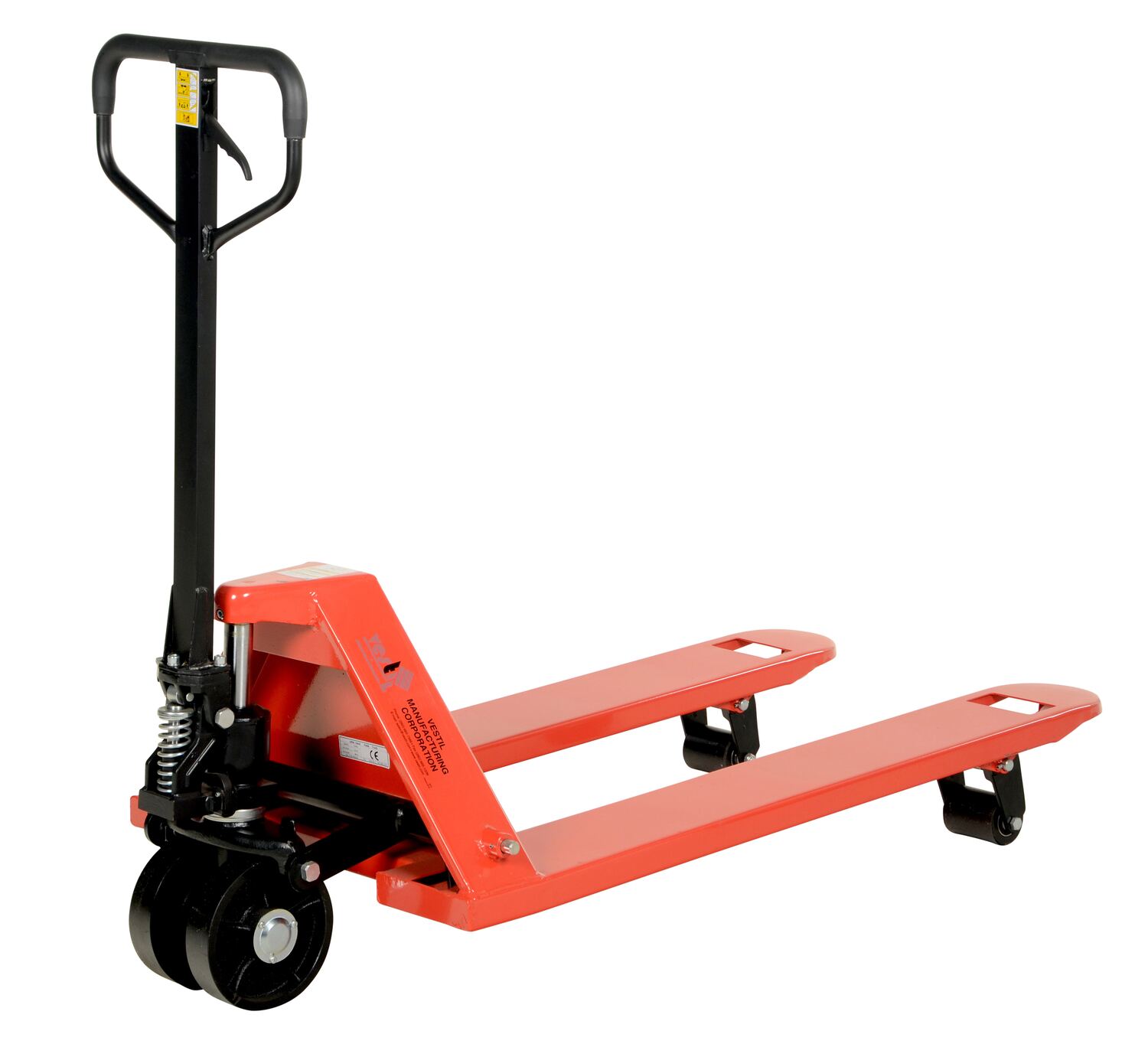

Vestil PM5-2748-S Steel Pallet Truck with Steel Wheels

Vestil Item #PM5-2748-S · MFR #PM5-2748-S
Quick Answer: The Vestil PM5-2748-S Steel Pallet Truck with Steel Wheels is a pallet jack with 5500 load capacity and load roller material: Steel. Priced at $769.13, in stock with factory-direct shipping.
  • The Vestil PM5-2748-S Steel Pallet Truck with Steel Wheels is an economical way for one person to move heavy pallet loads without the use of a fork truck!
  • Includes two (2) articulating steering wheels and two (2) front load rollers.
  • The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded.
  • Steering wheels include bearing dust covers for added life.
  • Nose wheels are located on the front edge of each fork to assist in a clean pallet entrance and exit.
Brand
Vestil
Condition
New
Weight
217 lb
Dimensions
61″L × 27″W × 48″H
Category
Pallet Jack
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (855) 719-1415 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Vestil PM5-2748-S Steel Pallet Truck with Steel Wheels is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in a clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. The spring-loaded handle automatically returns to the vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in cleaning pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life

Specifications

Item NumberPM5-2748-S
Manufacturer Part #PM5-2748-S
Brand Vestil
Weight217 lb
Dimensions (L×W×H)61″ × 27″ × 48″
Load Capacity (lbs.)5500
Lead Time2 days for 1–2 units · 10 days for 3–5 units · 20 days for 6+ units
Overall Fork Width (in.)27
Overall Fork Length (in.)48
Lowered Height (in.)2-7/8
Raised Height (in.)7-3/4
Fork Width (in.)7
Steer Caster MaterialSteel
Steer Caster Dia. (in.)7
Steer Caster Width (in.)2
Load Roller MaterialSteel
Load Roller Dia. (in.)3
Load Roller Width (in.)1-1/2
MaterialSteel
ColorRed
Pallet Jack TypeManual
Capacity (lbs)5500
Freight Class92.5
Country of OriginCN
Warranty1 Year (Limited - Parts)

Documents & Resources

Approval Drawings

Testing Certificates

Warranty

Customer Reviews

No reviews yet — be the first to review this product.
