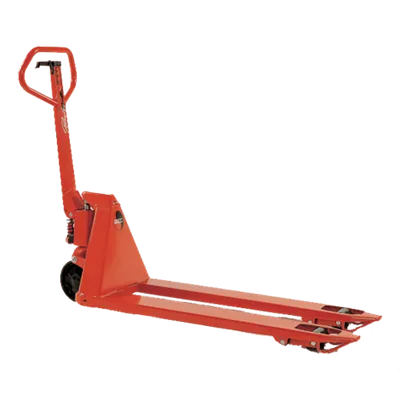

- Model- TT552060
- Brand – Interthor
- Capacity – 5,500 lbs.
- Type Of Pallet Jack – Extended Length
- Lowered Fork Height – 2.9″
- Raised Height – 7.75″
- Wheel Type – Polyurethane
- Finish – Powder Coat
- Warranty – 90 Day
- Fork Length – 60″
- Fork Width – 6″
$1,150.00
Weight | 228 lbs |
---|---|
Dimensions | 80 × 32 × 53 in |
Load Capacity |
5,500 lbs |
Wheel Type |
Polyurethane |
Raised Height (in.) |
7.75" |
Overall Fork Width (in.) |
20.5" |
Fork Length (in.) |
60" |
Fork Width (in.) |
6" |
Warranty |
90 Day |
Brand |
Interthor |
623 West Lake St.
Chicago, IL 60661 #113
United States
Phone: (855) 719-1415
Fax: (847) 278-2310
Do you have questions about our products? Send us an email and we’ll get in touch shortly.
In stock
Weight | 184 lbs |
---|---|
Dimensions | 59 × 20 × 48 in |
Uniform Capacity (lb.) |
5500 |
Overall Fork Width (in.) |
20 |
Overall Fork Length (in.) |
48 |
Lowered Height (in.) |
2-7/8 |
Raised Height (in.) |
7-3/4 |
Individual Fork Width (in.) |
7 |
Steer Caster Material |
Poly-On-Steel |
Steer Caster Diameter (in.) |
7 |
Steer Caster Width (in.) |
2 |
Load Roller Material |
Polyurethane |
Load Roller Diameter (in.) |
3 |
Load Roller Width (in.) |
3-5/8 |
Number of Pumps to Maximum Height (Empty) |
5-6 |
No. of Pumps to Maximum Height (Loaded) |
12-13 |
Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
Brand |
Vestil |
In stock
Weight | 868 lbs |
---|---|
Dimensions | 76 × 30.25 × 51.4375 in |
Uniform Capacity (lb.) |
4500 |
Overall Fork Width (in.) |
20.5 |
Overall Fork Length (in.) |
48 |
Lowered Height (in.) |
3.4 |
Raised Height (in.) |
7.8 |
Battery Type |
(4) 6 Volt |
DC Motor Voltage |
24 |
Battery Charger |
120V Input, 24V/20 amp |
Turn Radius (in.) |
52 |
Drive KW |
1.2 |
Lift Motor KW |
1.3 |
Operation at Full Charge (hrs.) |
6 to 7 |
Operation When Used Intermittently (hours) |
8 |
Drive Wheel Diameter (in.) |
10 |
Drive Wheel Width (in) |
3-1/8 |
Load Roller Diameter (in.) |
2-3/4 |
Load Roller Width (in.) |
3 |
Stabilizing Roller Diameter |
1-1/2 in. |
Stabilizing Roller Width (in.) |
3 |
Wheel & Roller Type |
Poly on Steel |
Brand |
Vestil |
In stock
Weight | 546 lbs |
---|---|
Dimensions | 50 × 64 × 51 in |
Uniform Capacity (lb.) at 12 (in.) Horizontal Load Center |
2,500 |
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center |
2,000 |
Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center |
1,500 |
Adjustable Fork Width Minimum (in.) |
12 |
Adjustable Fork Width Maximum (in.) |
26-3/4 |
Fork Length (in.) |
32 |
Lowered Height (in.) |
3 |
Raised Height (in.) |
9 |
Individual Fork Width (in.) |
4-3/4 |
Individual Fork Height (in.) |
2 |
Front Tire Diameter (in.) |
22 |
Back Steering Wheel Diameter (in.) |
10 |
Inside straddle (in.) |
48 |
Outside Straddle (in.) |
64 |
Operation |
Hand Pump |
Handle Length (in.) |
32 |
Handle Material |
Steel |
Load Center (in.) |
12 |
Type |
Heavy Duty |
Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
Brand |
Vestil |
In stock
Weight | 423 lbs |
---|---|
Dimensions | 58 × 22.75 × 48 in |
Uniform Capacity (lb.) |
10000 |
Overall Fork Width (in.) |
22-3/4 |
Overall Fork Length (in.) |
45-1/4 |
Fork Range Minimum (in.) |
3-1/2 |
Fork Range Maximum (in.) |
7-7/8 |
Individual Fork Width (in.) |
8-1/4 |
Steer Wheel Diameter (in.) |
6-1/4 |
Steer Wheel Width (in.) |
2 |
Steer Wheel Material |
Steel |
Load Wheel Diameter (in.) |
1 |
Load Wheel Width (in.) |
2 |
Optional Features |
PM5-FB, CWHF-SM, |
Assembly Required |
NO |
|
Angola, IN |
Color List of colors this product comes in. |
Yellow |
Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
Brand |
Vestil |
