Improved Process

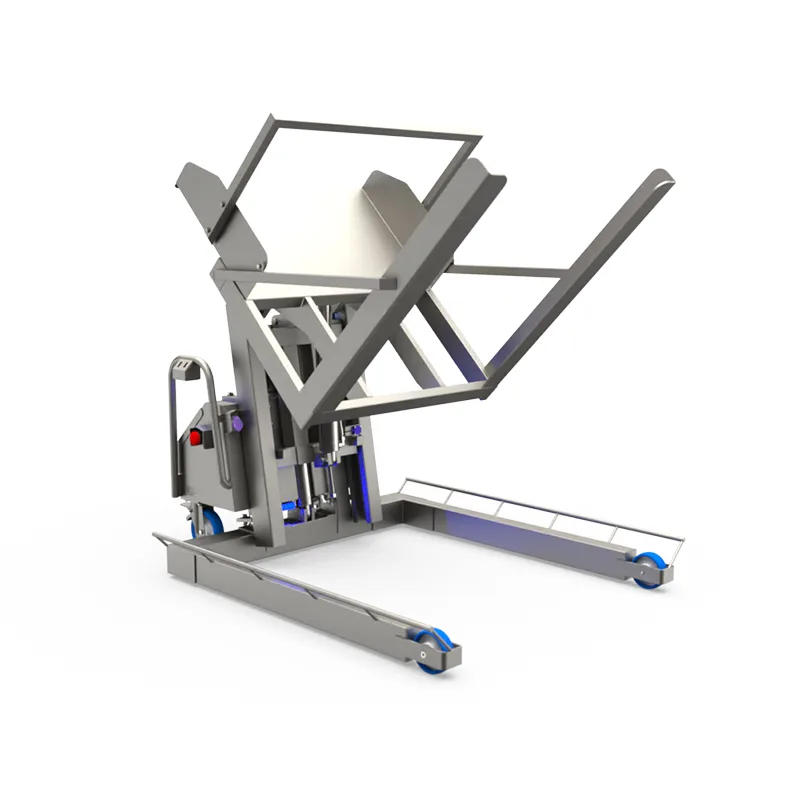

The Premier Handling Stainless Steel Wide Lifter & Tipper are simple, easy-to-use machines that enhance production and reduce the risk of workplace injury. BRLT is ideal whether you work at a table, a process line or an elevated loading platform. Independent controls on both sides of the machine are reachable regardless of its actual position, thus eliminating all the extra walking around the machine to operate it, reducing downtime and making it a very popular solution at food-processing facilities. It can be easily integrated into a process line to discharge large bins onto a belt conveyor or into a screw conveyor’s hopper. It can also be used to fill other machinery, such as grinders, separators, tumblers, cutters, injectors and packers.
Enhanced Productivity
Our Tippers is designed to be installed at specific locations for emptying operations. When needed, it can still be occasionally relocated. A bin of product (meat, fish, vegetables, etc.) is loaded into the lifter/tipper with a pallet jack or forklift. The load is then raised and tilted in a single smooth motion until the product starts to come out or even further to the maximum set angle. Because manual lifting, crouching and bending are no longer necessary, the risk of back pain, strain and injury is reduced. Healthy personnel are happier, more efficient and productive, and throughput is maximized.
Rechargeable battery
Our Tippers are powered by rechargeable batteries, so they can be used everywhere on the work floor regardless of the power-supply location. The battery is suitable for operation in refrigerated areas and can be plugged in overnight for convenient charging. With a fully charged battery you can handle approximately 40 tons of products.
Operational Safety
BRLT, with its two heavy-duty locking swivel casters mounted outside of the frame for maximum stability, can optionally be set to a tipping angle of up to 108 degrees while remaining stable and safe. Like other Backsavers, this machine is driven by twin hydraulic cylinders that use gravity for the lowering action. So, it’s very safe because it significantly reduces the risk that its moving parts might incur bodily injury. For even greater safety, it features an audible backup signal and a flashing LED beacon light that warn others about parts in motion, ensuring extra attention during operation.
Hygiene and Food safety
The food industry can enjoy the benefits of our specially designed tippers. Not only are they safe and suitable for direct contact with food items, but also feature stainless steel construction to simplify cleaning processes–even power washers! Make your cleanup routine a breeze today.
Standard Features:
- Twin hydraulic cylinders (1 ea. for lifting and tipping)
- Backup sound alarm
- LED flashing beacon light
- Heavy-duty locking casters
- Powerful rechargeable battery
- Independent controls on each side
- Dead man’s (hold-to-run) buttons (Up/Down)
Available Options:
- Extended-stroke lifting cylinder for dumping at heights of up to 1410 mm at XXX degrees
- Tapered discharge chute / narrowed spout for improved product flow
- Extended discharge chute: up to 100 mm (4″) without changing the machine’s frame
- Raised discharge chute sides for improved product containment
- Adjustable, swinging or customized retaining bar position for various bin sizes
- Different max. tipping angles: 90, 100 and 108 degrees
- Plug-in (400 V) instead of battery-powered for stationary use
- Increased load rating: up to 1,100 kg / 2,425 lbs.
