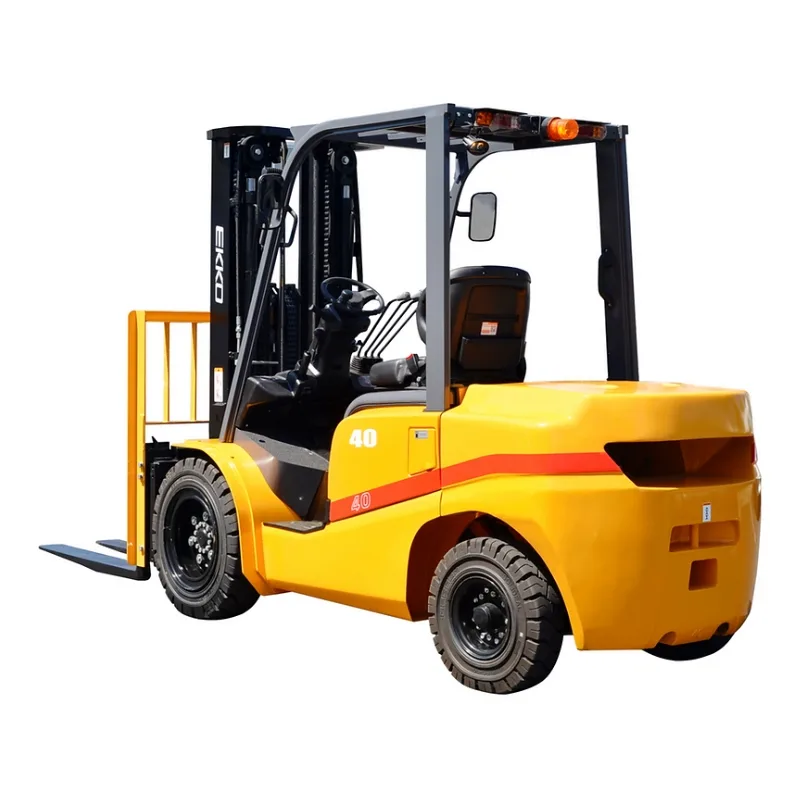

Diesel Forklift With Solid Pneumatic Tires EK20D, 4,000 lbs. Capacity

The EKKO EK20D Diesel Forklift handles up to 4,000 lbs. with solid pneumatic tires and a Mitsubishi 4EG engine. With side shift, tilt, and 4-way valves, it offers dependable control and performance on outdoor job sites.

SKU: EK20D Category:

$33,599.00

SlimCD Payment Icon Image

Product Specifications

Drive Type Diesel
Load Capacity (lbs.) 4000 lbs.
Load Center (in.) 24
Max Lift Height (in.) 185
Wheelbase (in.) 62.9″
Service Weight (lbs.) 7716 lbs.
Tire Material Solid Pneumatic Tire
Overall Width (in.) 45.2″
Overall Length W/ Forks (in.) 141.8″
Overall Length W/O Forks (in.) 96.8″
Travel Speed (mph) 10.6/11.8 (mph)
Free Lift Height (in.) 43.7″
Fork Size (in.) 42.1″ x 4.8″ x 1.5″
Battery 12/80, V/Ah
Engine Mode Mitsubishi 4EG
Engine Rated Power Deisel 49/2250, HP/rpm
Brand

The EKKO EK20D Diesel Forklift is built for durability and consistent performance across tough job sites. Featuring solid pneumatic tires and a Mitsubishi 4EG diesel engine, this forklift is ideal for outdoor use and rugged terrain. With a 4,000 lb. lifting capacity, 42-inch forks, an 83-inch lowered mast, and a maximum lift height of 185 inches, it delivers the reach and stability needed for a wide range of applications.

Key features include side shift, free lift, tilt, and 4-way hydraulic valves, giving operators smooth control and reliable maneuverability. Weighing 7,716 lbs., it offers a solid foundation for safe and efficient operation in demanding environments.
