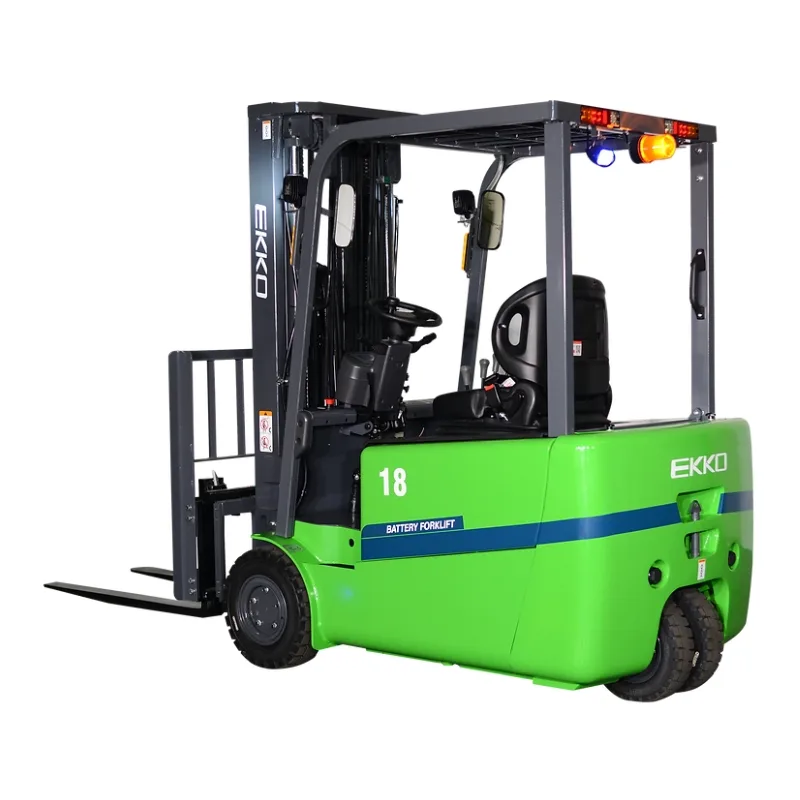

3-Wheel Lithium Forklift EK18AT-185LI, 4,000 lbs. Capacity

The EKKO EK18AT-185LI 3-Wheel Electric Forklift lifts up to 4,000 lbs. and runs on a fast-charging 48V lithium battery. It features side shift, tilt, SHIMADZU valves, and solid pneumatic tires for flexible and efficient performance.

SKU: EK18AT-185LI Category:

$36,399.00

SlimCD Payment Icon Image

Product Specifications

Drive Type Lithium Forklift
Service Weight (lbs.) 7341 lbs. w/Battery
Load Capacity (lbs.) 4000 lbs.
Load Center (in.) 24
Wheelbase (in.) 53.5″
Tire Material Solid Pneumatic Tire
Tire Size (in.) 140×55-9 (Rear), 200/50-10 (Front)
Wheel Type 2×/2
Tread Material 35.8″ (Front), 7.1″ (Back)
Max Lift Height (in.) 185
Free Lift Height (in.) 43.7″
Lowered Mast Height (in.) 83.1″
Side Shifting Forks Cascade®
Overall Length (in.) 116.9″
Overall Width (in.) 41.5″
Turning Radius (in.) 61″
Battery Charger 48V/100A
Lift Motor 10 kW
Tilt Forward/Backward 3°/6°
Battery 48V/202 Ah Lithium
Brand

The EKKO EK18AT-185LI 3-Wheel Electric Forklift is a high-efficiency solution for indoor and light outdoor applications. Powered by a 48V/202Ah lithium battery with 2-hour fast charging, this model combines convenience with strong performance. It features a dual-front AC drive motor and ZAPI controller for smooth, responsive control and minimal maintenance. With a 4,000 lb. lifting capacity, 42-inch forks, an 83-inch lowered mast, and a maximum lift height of 185 inches, it’s ready to handle demanding warehouse tasks.

Equipped with side shift, free lift, tilt, SHIMADZU 4SV 4-way valves, and a blue safety light, it offers precise handling and added safety. The solid pneumatic tires and 7,741 lb. frame make it versatile across a variety of surfaces while still maintaining stability and maneuverability.
