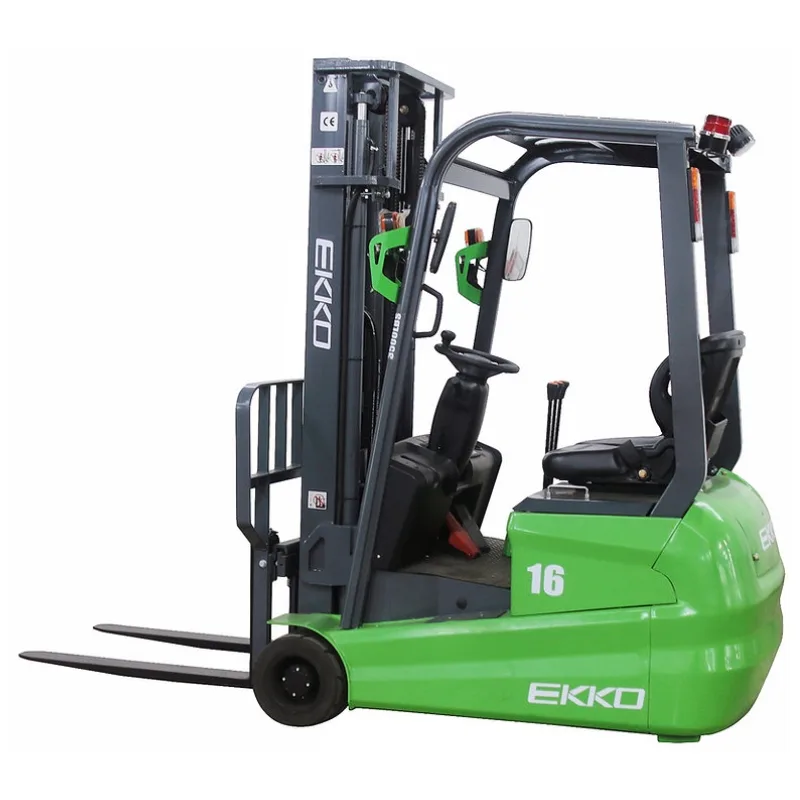

3-Wheel Lithium Forklift EK16A-189LI, 3,500 lbs. Capacity

The EKKO EK16A-189LI 3-Wheel Electric Forklift lifts up to 3,500 lbs. and runs on a 24V lithium-ion battery for fast, efficient performance. It includes side shift, tilt, EPS, and a triple mast for high-reach indoor applications.

SKU: EK16A-189LI Category:

$26,999.00

SlimCD Payment Icon Image

Product Specifications

Drive Type Lithium Forklift
Service Weight (lbs.) 4650 lbs.
Load Capacity (lbs.) 3500 lbs.
Load Center (in.) 24
Wheelbase (in.) 49.2″
Max Lift Height (in.) 189″
Free Lift Height (in.) 31.5″
Lowered Mast Height (in.) 84.75″
Side Shifting Forks Yes
Overall Length (in.) 65″
Overall Width (in.) 42.1″
Fork Thickness (in.) 1.4″
Fork Width (in.) 4″
Fork Length (in.) 42.1″
Fork Adjust Width (in.) 7.9-26″
Turning Radius (in.) 58.9″
Lift Speed Load/Unload 4.71/10.2 (in/s)
Lower Speed Load/Unload 11.8/15.7 (in/s)
Battery Charger 24V/50A
Drive Motor AC
Lift Motor 3.3 (KW)
Battery 24V/200Ah Lithium
Tilt Forward/Backward 3°/6°
Brand

The EKKO EK16A-189LI 3-Wheel Electric Forklift offers a modern lithium-ion power solution for efficient and low-maintenance indoor material handling. Powered by a 24V/200Ah lithium-iron battery and a ZAPI controller, this forklift delivers quick charging, extended runtime, and long battery life. It supports a 3,500 lb. lifting capacity and features a 42-inch fork with a triple mast that reaches up to 189 inches.

With standard features like side shift, tilt, free lift, and AC drive motor, along with electronic power steering (EPS), it’s designed for precision and ease of use in tight warehouse spaces. Cushion tires provide smooth operation on finished floors, making it ideal for distribution centers and storage facilities.
