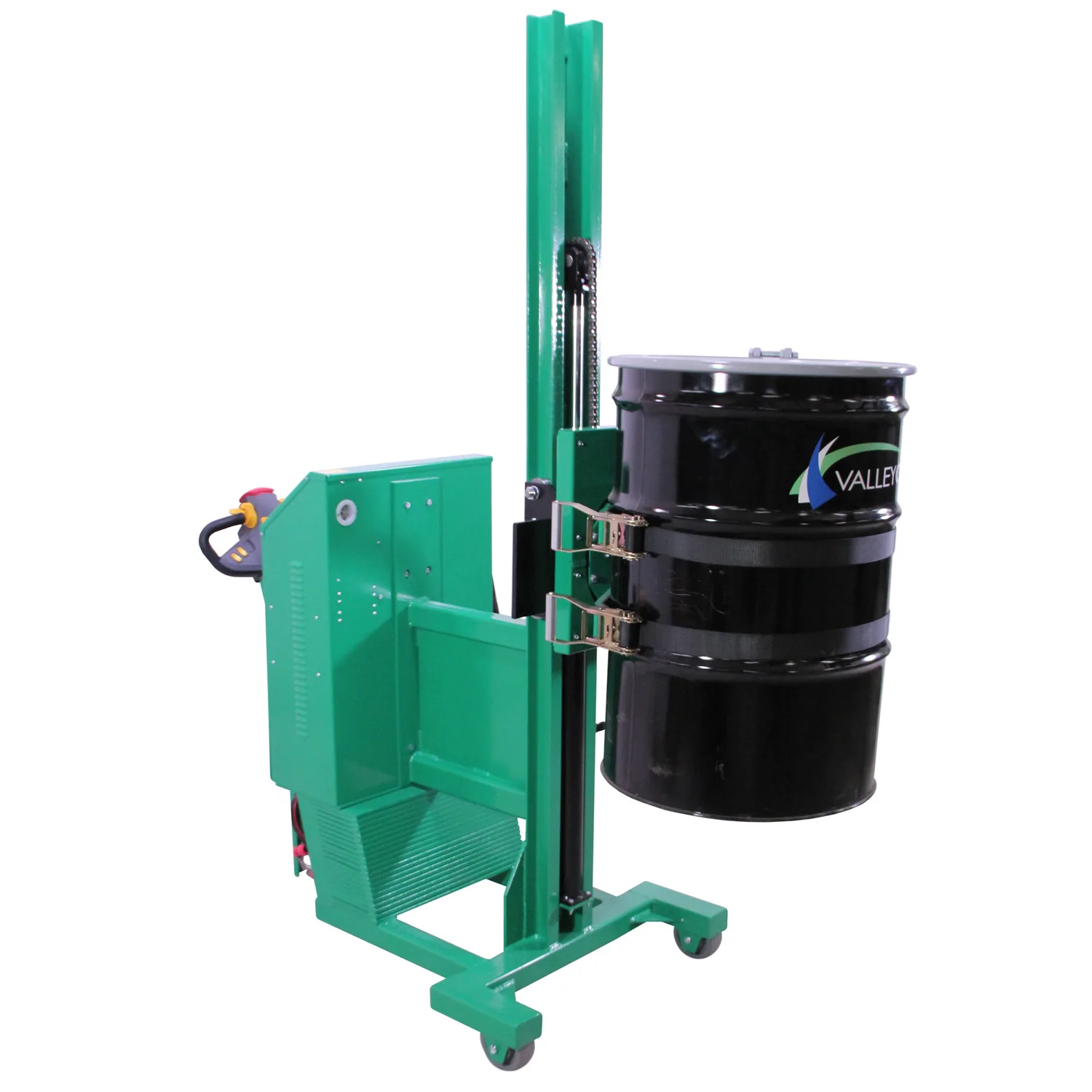

Drum Lift & Rotator Fully Powered F89831A4, 1,000 lb. Capacity

Valley Craft F89831A4 is a robust, battery-powered unit designed to lift, rotate, and transport drums with ease and precision. It offers impressive lifting ability up to 84 inches, continuous 360° rotation, and is adaptable with 10-55 gallon drums. This American-made product comes fully assembled and ready to streamline your operations.

SKU: F89831A4 Categories: ,

$18,595.00

SlimCD Payment Icon Image

Product Specifications

Weight 1374 lbs
Shipping Dimensions 83 × 41 × 95 in
Dimensions (in.) 53″ x 32″ x 90″
Weight (lbs.) 1300 lbs.
Load Capacity (lbs.) 1000 lbs.
Color Green
Finish Powder Coat Paint
Drum Type 14 – 24″ in diameter, and fiber drums, Plastic, Steel
Drum Diameter (in.) 14 – 24″
Drum Capacity (gal.) 30/55 gal
Function - Lift Battery Powered Hydraulic Motor
Function - Grip Ratchet Straps
Function - Rotate Hydraulic Rotate 360°
Max Lift Height (in.) 84″
Lift Distance (in.) 71″
Lift Speed (in./sec) 3.4
Turning Radius (in.) 39″
Drive Speed (mph) 1 – 2.5mph
Rotation Speed 360°, 6 RPM
Base Style Counterweighted
Power Source 24V Battery Powered, Rechargable
Material Steel
Wheel/Caster Makeup 1 power wheel, 2 rigid
Wheel/Caster Qty 3
Wheel/Caster Dia. (in.) 12″ power wheel, 5″ front wheels
Brand
Lead Time 15

The Valley Craft F89831A4 promotes both safety and efficiency when it comes to managing drums in your workspace. The stand-alone, battery-powered unit elevates and rotates drums up to 84″ off the floor, and is able to continuously spin 360° at 6 RPM. Its heavy gauge steel construction with a 1,000 lb. capacity ensures its durability while the premium green powder coat paint finish adds a touch of elegance. Compatible with a wide range of drums and designed with dual ratchet straps for maximum security, this American-made unit ships fully assembled and ready for use.

• Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
• Standalone unit (no forklift required).
• 24V battery powered drive, lift, and rotate.
• Raise middle of drum to a maximum height of 84” off the floor.
• Minimum center grip height of 13” off the floor.
• Rotate 360° continuously in either direction, at 6 RPM
• Counterweighted unit butts directly up to pallets, shelving, or other items.

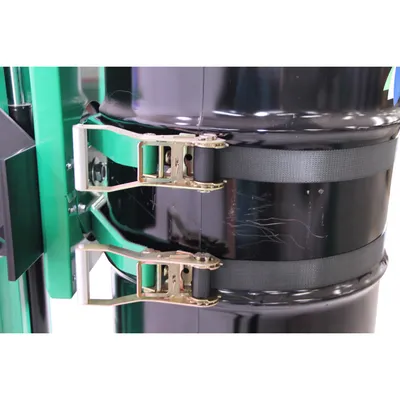

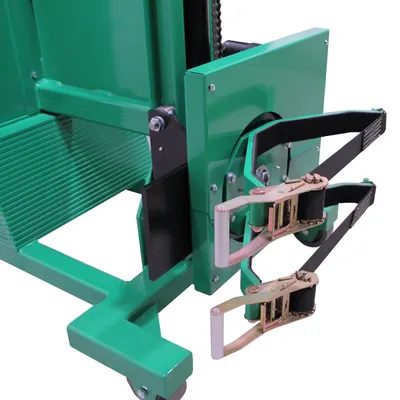

• Dual ratchet straps for securing drums.
• Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24” in diameter).
• Drive up to 2.5 MPH on (2) 5″ front swivel casters and (1) 12″ powered rear wheel.F
• 53″L x 32″W x 90″H.
• 1,000 lb. capacity.
• Heavy gauge steel construction.
• Premium powder coat paint finish in green.
• Ships fully assembled, ready to use.
• Made in the U.S.A.
