Drum Lift & Rotator F88563B9, 800 lb. Capacity
π Hover to zoom Β· Click βΆ for gallery

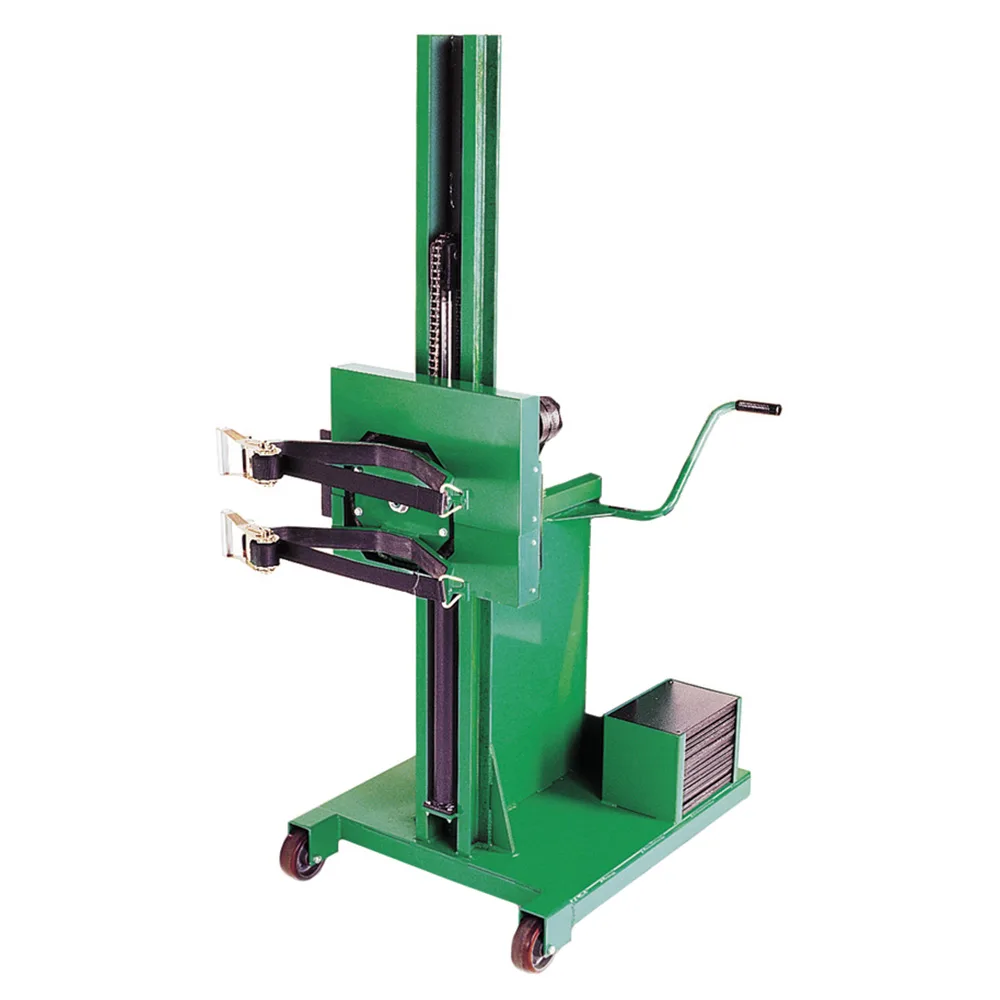

Valley Craft's F88581B7 Drum Lifter offers a robust way to safely and ergonomically transport drums within your facility. This standalone, heavy-gauge steel unit requires no forklift, empowering you to lift and rotate drums up to 800 lb. using a manual drive, lift, and ergonomic foot pump. With the ability to continuously rotate 360Β°, and compatibility with 10-55 gallon drums, operation is a breeze. The unit's premium green powder coat finish, dual ratchet straps for security, and effortless maneuverability on 4 casters further demonstrate the careful thought that's gone into every facet of this American-made machine.
β’ Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
β’ Standalone unit (no forklift required).
β’ Manual drive, lift, and rotate.
β’ Lift using ergonomic foot pump.
β’ Raise middle of drum to a maximum height of 84β off the floor.
β’ Minimum center grip height of 13β off the floor.
β’ Rotate 360Β° continuously in either direction using hand crank
β’ Counterweighted unit butts directly up to pallets, shelving, or other items.
β’ Dual ratchet straps for securing drums.
β’ Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24β in diameter).
β’ Manuevers easily on 4 casters: (2) 6" front rigid, (2) 4" rear swivel.
β’ 46"L x 30"W x 90"H.
β’ 800 lb. capacity.
β’ Heavy gauge steel construction.
β’ Premium powder coat paint finish in green.
β’ Accessory options include: floor lock (sold separately).
β’ Ships fully assembled, ready to use.
β’ Made in the U.S.A.
| Item Number | F88581B7 |
|---|---|
| Manufacturer Part # | F88581B7 |
| Brand | |
| Weight | 1060 lb |
| Dimensions (in.) | 46" x 30" x 90" |
| Load Capacity (lbs.) | 800 lbs. |
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | 14 - 24" in diameter, and fiber drums, Plastic, Steel |
| Drum Diameter (in.) | 14 - 24" |
| Drum Capacity (gal.) | 30/55 gal |
| Function - Lift | Manual Foot Lift |
| Function - Grip | Ratchet Straps |
| Function - Rotate | Manual Crank |
| Max Lift Height (in.) | 84" |
| Lift Distance (in.) | 71" |
| Lift Speed (in./sec) | 1 |
| Turning Radius (in.) | 39" |
| Rotation Speed | 2 RPM, 360Β° |
| Base Style | Counterweighted |
| Power Source | Manual Powered |
| Material | Steel |
| Wheel/Caster Makeup | 2 rigid, 2 swivel |
| Wheel/Caster Qty | 4 |
| Wheel/Caster Dia. (in.) | 4" rear, 6" front |
| Lead Time | 10 days |
