Full Powered Straddle Stacker EB20CS-189LI, 4,400 lbs. Capacity
π Hover to zoom Β· Click βΆ for gallery

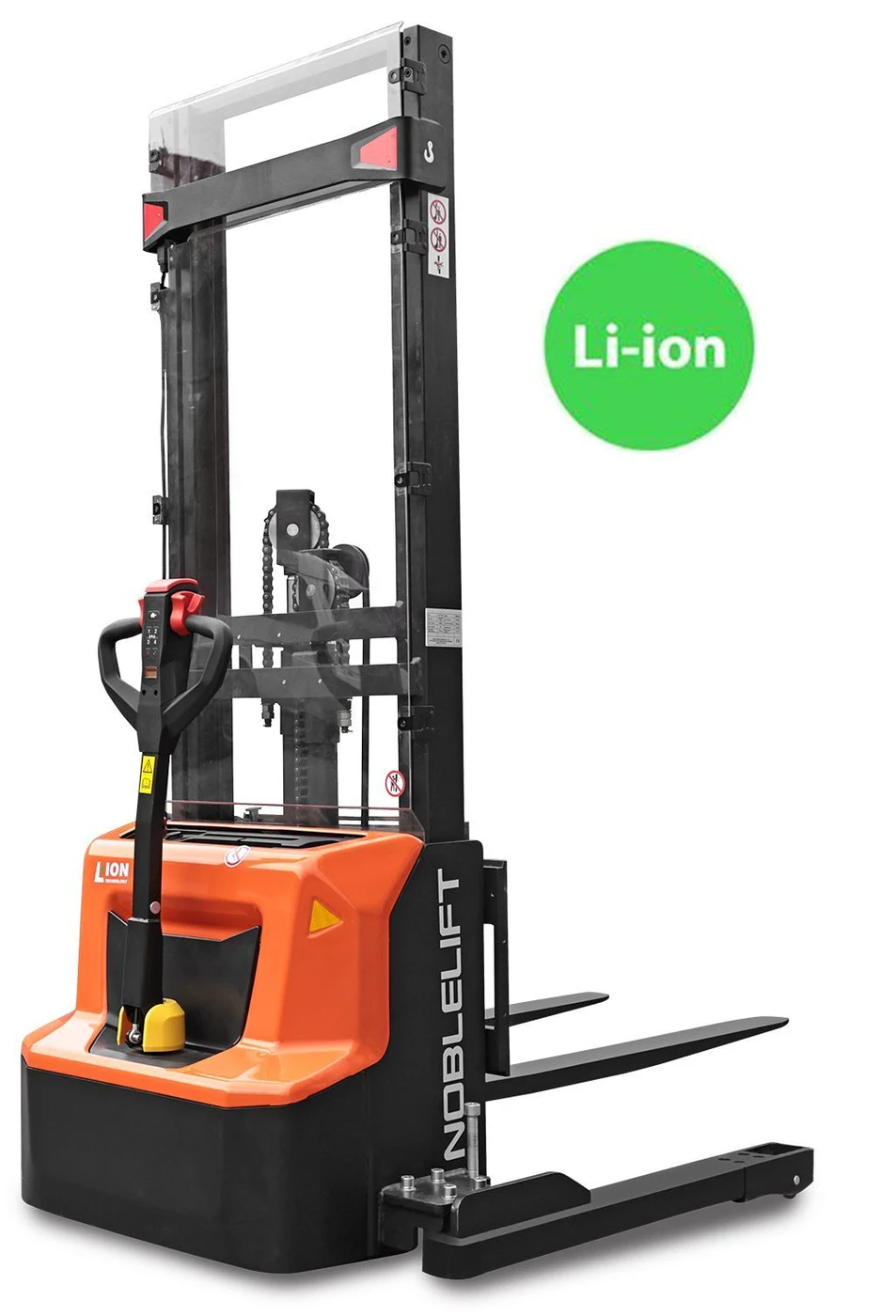

The Noblelift PSX30 is a walkie stacker rated for 3,000 lb. Every unit ships factory-direct from Noblelift's U.S. distribution network and is backed by a 36-month warranty.
| Model | Configuration | Price |
|---|---|---|
| PSX30-100 | 100" Lift | $8,200 |
| PSX30-112 | 110" Lift | $8,300 |
| PSX30-124 | 122" Lift | $8,400 |
| PSX30-140 | 138" Lift | $8,500 |
Option pricing is confirmed on your quote β tell us your configuration and weβll spec it out.
| Item Number | PSX30 |
|---|---|
| Manufacturer Part # | PSXE30 |
| Brand | |
| Capacity | 3,000 lb |
| Available Lift Heights | 100" / 110" / 122" / 138" |
| Mast Stages | 2 |
| Mast Type | Full Free Lift |
| Fork Size | 42"L x 10-31.5"W (Class II) |
| Battery | 24V/100Ah Lithium |
| Charger | 24V/25A 110V (built-in) |
| Drive Motor | 24V DC Permanent Magnetic |
| Controller | Curtis with CAN-bus control |
| Drive Tire | 8.3" x 2.95" polyurethane |
| Load Wheels | 3.3" x 3.66" polyurethane |
| Travel Speed (unloaded) | 2.6 mph |
| Travel Speed (loaded) | 2.8 mph |
| Adjustable Base Legs I.D. | 38.62" - 50.43" |
| Adjustable Base Legs O.D. | 46.5" - 58.31" |
| Service Weight Range | 1,810 - 1,907 lb |
| Warranty | 3-Year Limited |
| Operator Protection | Plexiglass shield, stability casters, speed reduction in turns |
