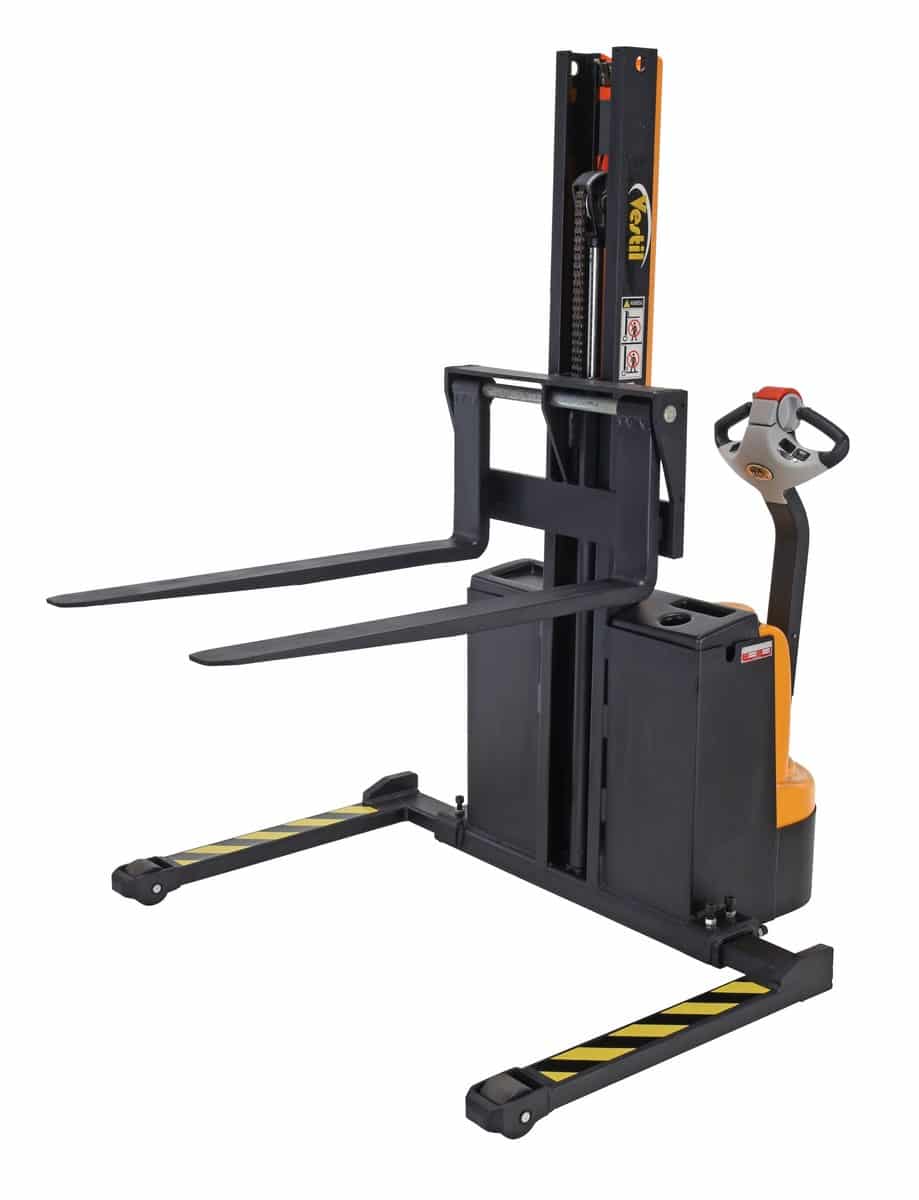

Vestil SNM-62-AA Steel Narrow Mast Stacker DC Powered

Vestil Item #SNM-62-AA · MFR #SNM-62-AA
Quick Answer: The Vestil SNM-62-AA Steel Narrow Mast Stacker DC Powered is a pallet stacker with 2200 load capacity and steer load wheel material: Poly-On-Steel. Priced at $11,970.37, in stock with factory-direct shipping.
  • The Vestil SNM-62-AA Steel Narrow Mast Stacker DC Powered is great for the shipping and manufacturing facilities.
  • The stacker provides a fast efficient solution to loading and unloading products in closely confined areas.
  • The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments.
  • The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability.
  • A battery charger and gauge are included.
Brand
Vestil
Condition
New
Weight
1126 lb
Dimensions
69″L × 58″W × 78″H
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (855) 719-1415 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Vestil SNM-62-AA Steel Narrow Mast Stacker DC Powered is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger and gauge are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency

Specifications

Item NumberSNM-62-AA
Manufacturer Part #SNM-62-AA
Brand Vestil
Weight1126 lb
Dimensions (L×W×H)69″ × 58″ × 78″
Lead Time3 days for 1–1 units · 12 days for 2–3 units · 20 days for 4+ units
Load Capacity (lbs.)2200
Fork Width (in.)8.3 to 26-3/4
Fork Length (in.)42
Lowered Height (in.)2-1/8
Raised Height (in.)62
Power Source(2)DC/12V
Steer Load Wheel MaterialPoly-On-Steel
Front Caster Qty2
Front Caster Dia. (in.)4
Front Caster Width (in.)3
Rear Caster Qty1
Rear Caster Dia. (in.)6
Rear Caster Width (in.)2
Drive Wheel Dia. (in.)10
Drive Wheel Width (in.)4
Drive Motor (kW)1.0 KW
Lift Motor2.0 KW
Full Charge Time (hrs)3-4
Handle Height (in.)48
Handle Dia. (in.)1-5/16
Capacity (lbs)2200
MaterialSteel
ColorBlack / Yellow
Freight Class200
Country of OriginCN
Warranty1 Year (Limited - Parts)
