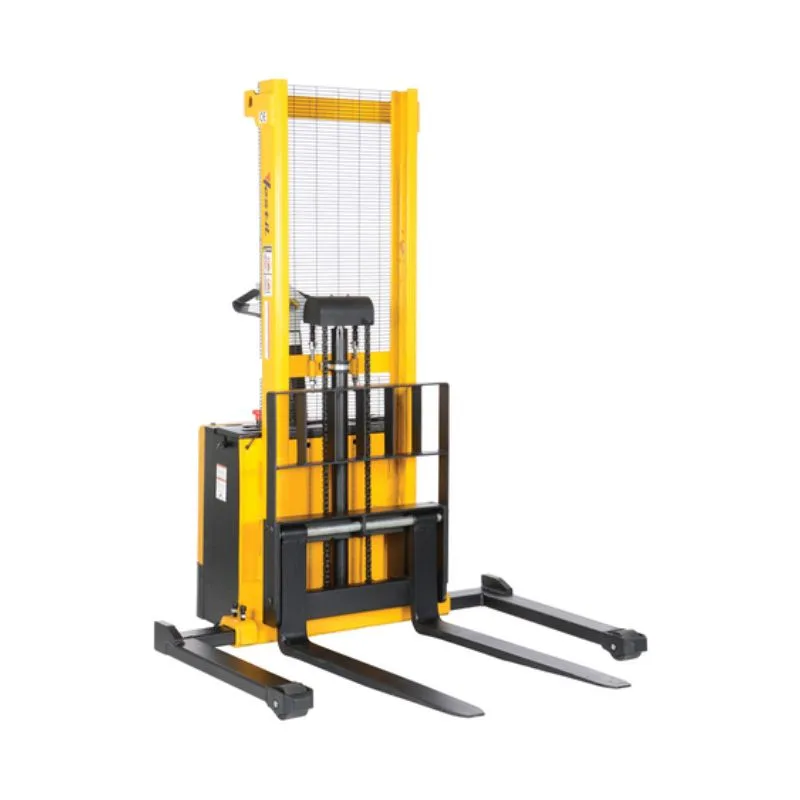

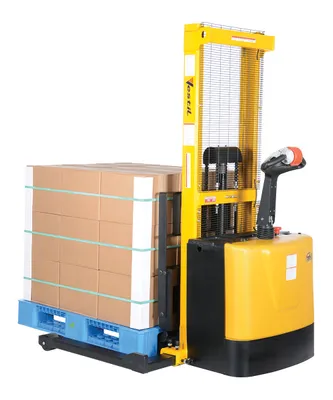

The Vestil S-62-AA Steel Adjustable Powered Lift Stacker is a fully powered electric stacker that transports loads throughout warehouse facilities quickly and with less effort. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the Proprietary Safety-enhancing Emergency Reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The power lifter features a lead acid deep cycle battery, integral battery charger, and a battery level gauge. The stacker rolls smoothly on poly-on-steel steer and load wheels.
| Item Number | S-62-AA |
|---|---|
| Manufacturer Part # | S-62-AA |
| Brand | |
| Weight | 990 lb |
| Dimensions (LΓWΓH) | 69β³ Γ 58β³ Γ 82.6875β³ |
| Lead Time | 6 days for 1β1 units Β· 12 days for 2β3 units Β· 20 days for 4+ units |
| Load Capacity (lbs.) | 2000 |
| Fork Width Min/Max (in.) | 8 - 26-3/4 |
| Leg Width Min Max (in.) | 48 - 58 |
| Fork Length (in.) | 42 |
| Lowered Height (in.) | 2-1/4 |
| Raised Height (in.) | 62 |
| Battery | (2) 12V |
| Drive Motor | DC 24V |
| Lift Motor | DC 24V |
| Full Charge Time (hrs) | 3-4 |
| Fork Width (in.) | 4 |
| Wheel Material | POLY ON STEEL |
| Load Center (in.) | 21 |
| Capacity (lbs) | 2000 |
| Material | Steel |
| Color | Black / Yellow |
| Freight Class | 200 |
| Country of Origin | CN |
| Warranty | 1 Year (Limited - Parts) |
