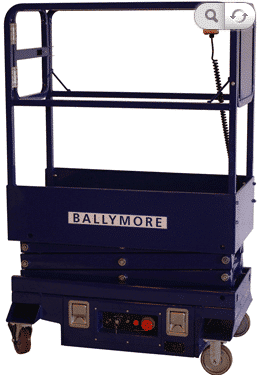

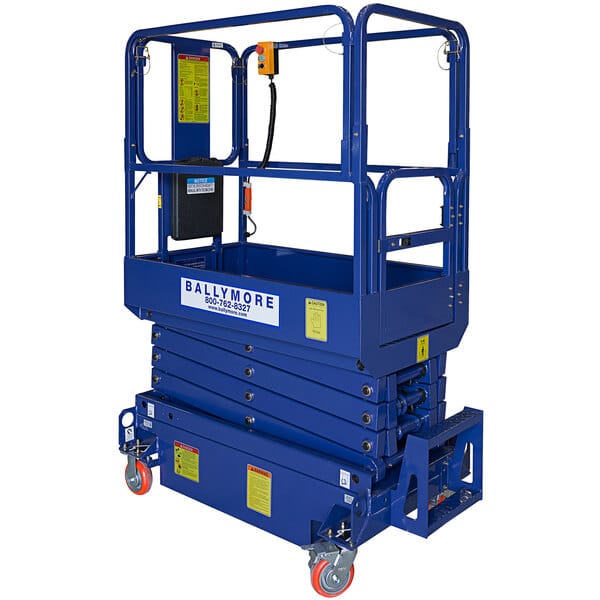

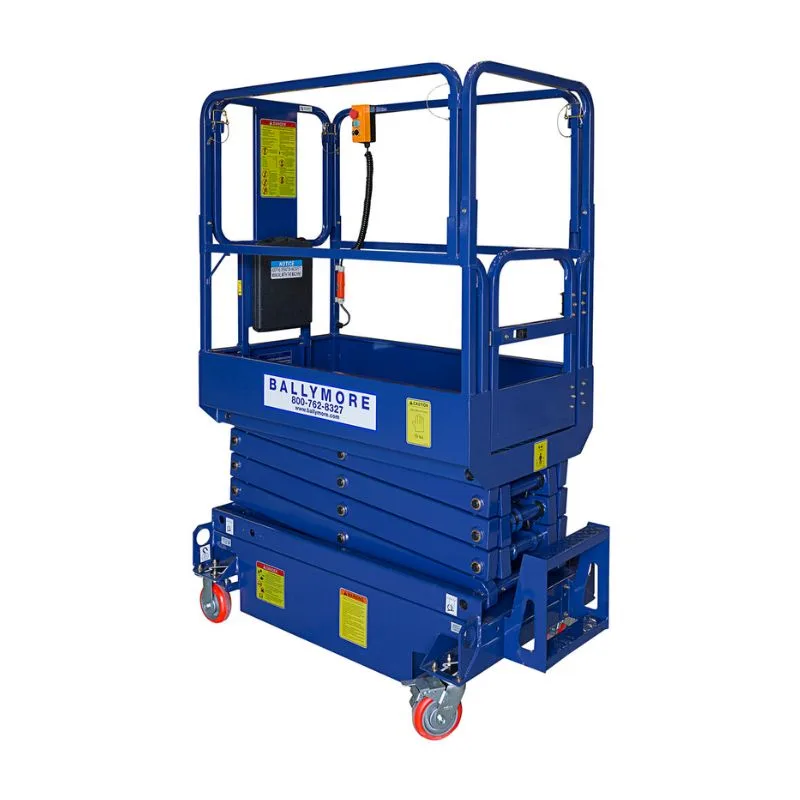

This Ballymore MSL-10 Battery-Powered Compact Scissor Lift Work Platform – 28″ x 50″ with 16′ working height features a compact design that simplifies vertical access in areas like warehouse aisles where space may be limited. For further convenience where mobility is concerned, the base of the unit has integrated pockets to allow it to be lifted by a forklift. A set of (4) 6″ casters otherwise allows the unit to be pushed where it’s needed, while floor locks eliminate movement during use.

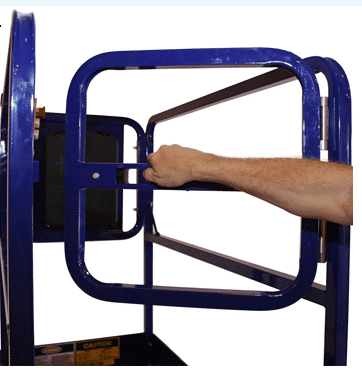

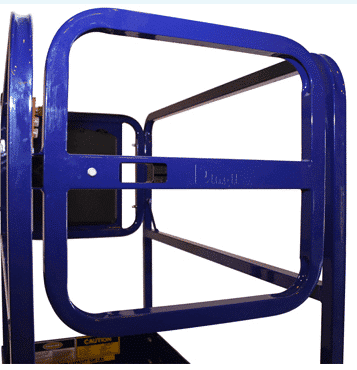

Powered by a 12V DC battery stored in a built-in, locking drawer, this unit effortlessly lifts a combined operator and equipment load of up to 500 lb. The unit has a safe and spacious 28″ x 50″ platform, propelled manually by a simple push-button controller, that raises and lowers between 26″ and 9′ 10″, reaching an approximate working height up to 16′. To provide simple access while ensuring operator safety, the platform has a hinged gate and is equipped with tall guard rails, midrails, and toe guards.
For additional safety, the unit features an emergency stop button and an emergency lowering system. Constructed of heavy-duty steel, this unit is built tough to easily endure the demands of industrial applications.
Overall Dimensions:
Length: 57″
Width: 30″
Height: 77″

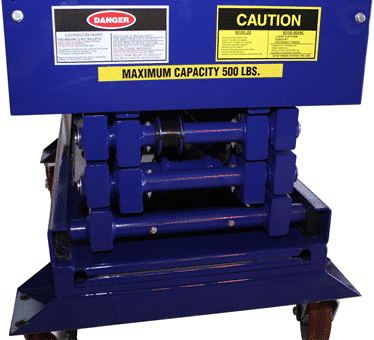

Capacity: 500 lb.
Platform Dimensions:
Length: 50″
Width: 28″
Height: 26″ – 9′ 10″
