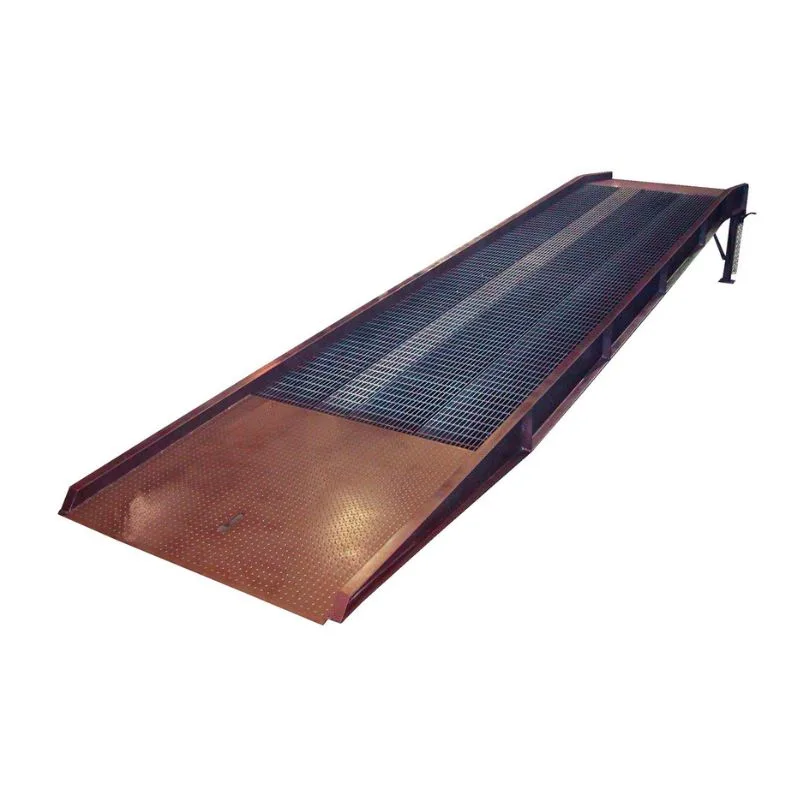

Vestil YRDS-16-8536-M Steel Yard Ramp Mechanical Dock Leveler

The Vestil YRDS-16-8536-M Steel Yard Ramp Mechanical Dock Leveler at truck end quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites and includes an efficient manual hand crank for easy one (1) person height adjustment. The standard features include: positive traction surface design and safety locking chains.

SKU: YRDS-16-8536-M Categories: ,

$20,612.93

SlimCD Payment Icon Image

Product Specifications

Weight 6600 lbs
Shipping Dimensions 432 × 85 × 46 in
Lead Time 35 Days
Lead Time Tier 1 35 Days
Lead Time Tier 2 CALL Days
Lead Time Tier 3 Days
Quantity Tier 1 1-1
Quantity Tier 2 2-
Load Capacity (lbs.) 16000
Usable Ramp Width (in.) 78
Dock Leveler Width (in.) 72
Caster Material Steel
Caster Dia. (in.) 8-5/8
Caster Width (in.) 3-5/8
Safety Curb (in.) 4
Usable Lip Edge (in.) 13-1/2
Lowered Height (in.) 45
Raised Height (in.) 62
Straight Ramp (in.) 360
Level Off (in.) 6-7/8
Brand

The Vestil YRDS-16-8536-M Steel Yard Ramp Mechanical Dock Leveler at truck end quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites and includes an efficient manual hand crank for easy one (1) person height adjustment. The standard features include: positive traction surface design and safety locking chains.

  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Rubber bumpers are included for increased safety
