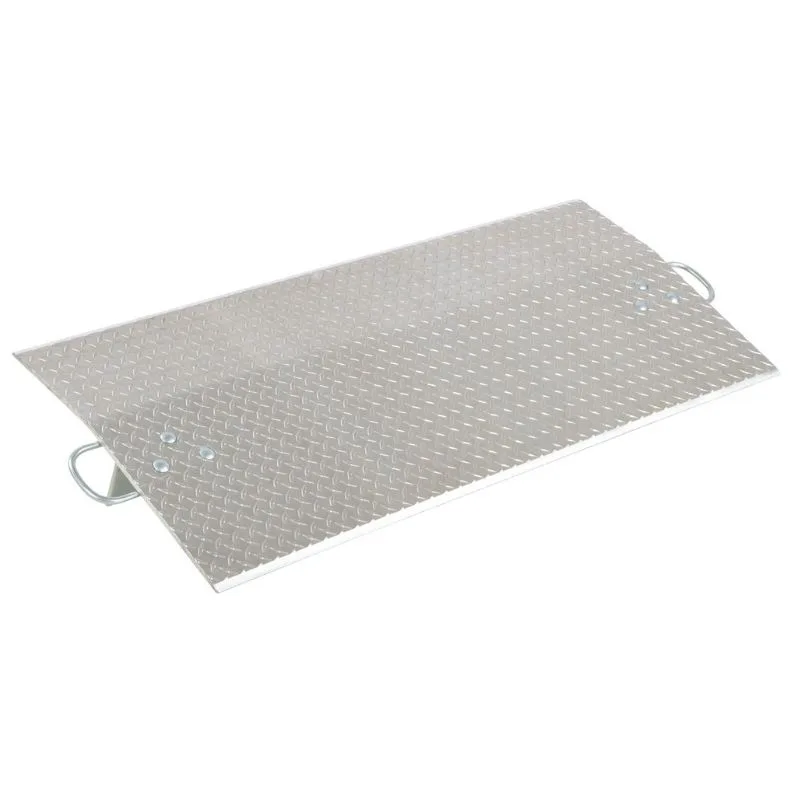

Vestil E-5424 Aluminum Economizer Dock Plate

The Vestil E-5424 Aluminum Economizer Dock Plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

SKU: E-5424 Categories: ,

$441.97

SlimCD Payment Icon Image

Product Specifications

Weight 53 lbs
Shipping Dimensions 24 × 54 × 4 in
Load Capacity (lbs.) 5400
Bend Or Crown (degrees) 11
Usable Width (in.) 54
Usable Length (in.) 24
Plate Thickness (in.) 3/8
Leg Height (in.) 6
OSHA 1910.30(a)
ANSI MH 30.2
Brand

The Vestil E-5424 Aluminum Economizer Dock Plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

  • Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs and lifting handles are OSHA compliant
  • Beveled entrance and exit edges allow for smoother transition
