Vestil UNI-5448-4-YEL-230-1 LIFT TABLE 4K 54X48 YELLOW 230V 1 PHASE
$4,449.94
The UNI-5448-4-YEL-230-1 by materialhandling.com is designed to position containers within easy reach of assembly line workers and machine operators.
| Weight | 910 lbs |
|---|---|
| Shipping Dimensions | 54 × 54 × 24 in |
| Uniform Capacity (lb.) |
4000 |
| Platform Width (in.) |
54 |
| Platform Length (in.) |
48 |
| Level Height (in.) |
8 |
| Maximum Tilt Degree |
40 |
| Power Unit |
Internal |
| Lip Height (in.) |
12 |
| Motor Horsepower |
2 |
| Voltage/Phase |
230/1 |
| Hertz |
60 |
| Lead Time This is the estimated time required to process your order before it is shipped. Please allow for this time in addition to shipping duration. |
40 Days |
| Brand |
Vestil |
0
People watching this product now!
Description

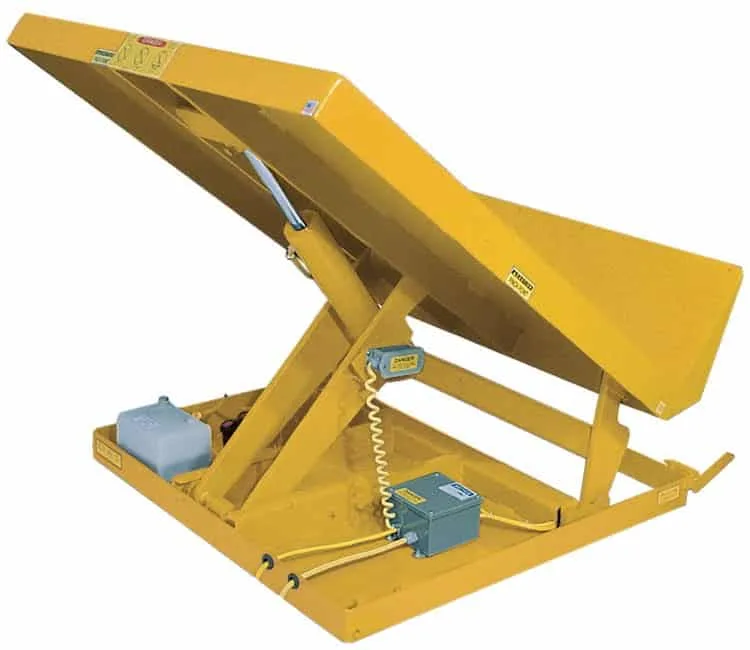

The Single Scissor Lift & Tilt Table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This Scissor Table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor Table must be lagged to the floor.
- Ergonomic design reduces fatigue and back injuries increasing productivity
- Welded steel construction provides long lasting rugged use
- 40° tilt angle offers better ergonomics and operator comfort
- Platform end lip safely supports containers when tilted
