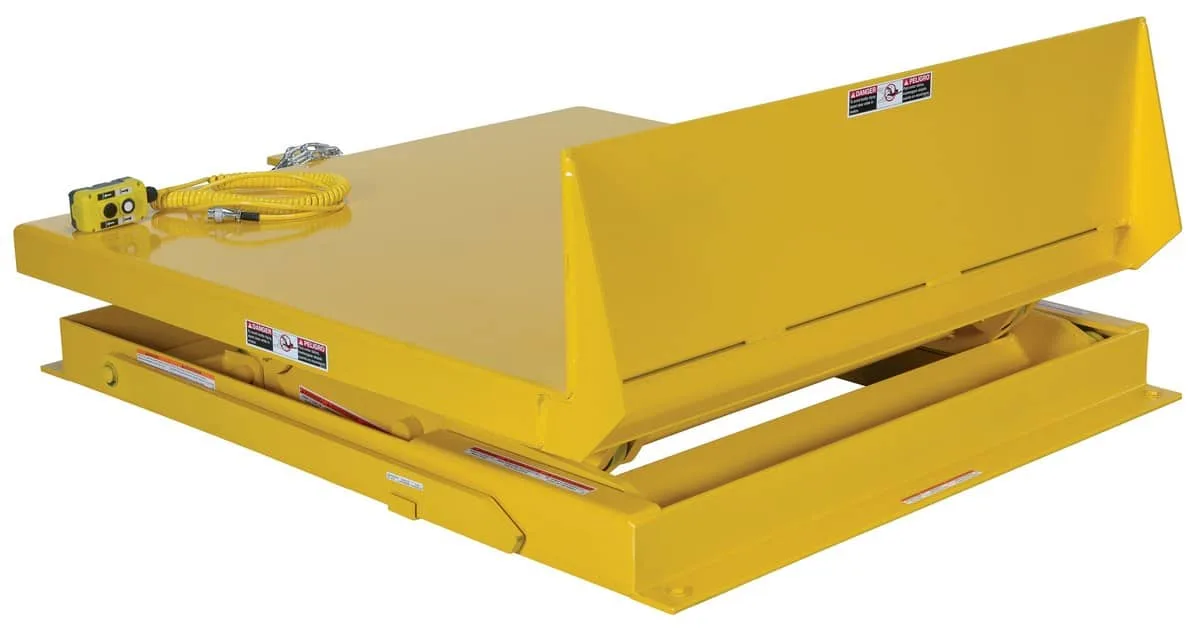

Vestil ULTT-4848-4-YEL460-3 ERGO LIFT/TILT TABLE 4K 460V/PH3 48X48

The ULTT-4848-4-YEL460-3 by materialhandling.com allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers.

SKU: ULTT-4848-4-YEL460-3 Categories: ,

$5,423.73

SlimCD Payment Icon Image

Product Specifications

Weight 1020 lbs
Shipping Dimensions 65 × 48 × 27 in
Lead Time 45 Days
Lead Time Tier 1 45 Days
Lead Time Tier 2 CALL Days
Lead Time Tier 3 Days
Quantity Tier 1 1-2
Quantity Tier 2 3-
Load Capacity (lbs.) 4000
Cylinders 2
Max Tilt (degrees) 44
Lowered Height (in.) 10
Raised Height (in.) 24
Lip Height (in.) 12
Motor Horsepower 2
Voltage/Phase 460/3
Hand Control Voltage 24
Platform Width (in.) 48
Platform Length (in.) 48
Brand
Power Type Electric

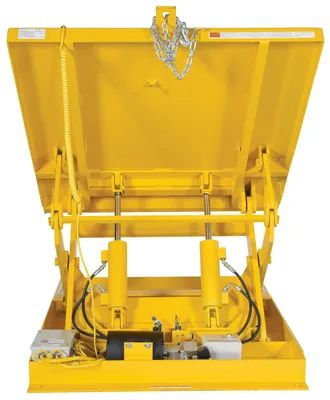

The Lift & Tilt Workstation Table allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers. The internal power unit includes electric motor, hydraulic pump, and control box. It includes a two-button hand held pendent control with optional voltages available. The welded steel construction has a yellow painted finish.

  • Ergonomic design reduces fatigue and back injuries increasing productivity
  • Welded steel construction provides long lasting rugged use
  • 44° tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
