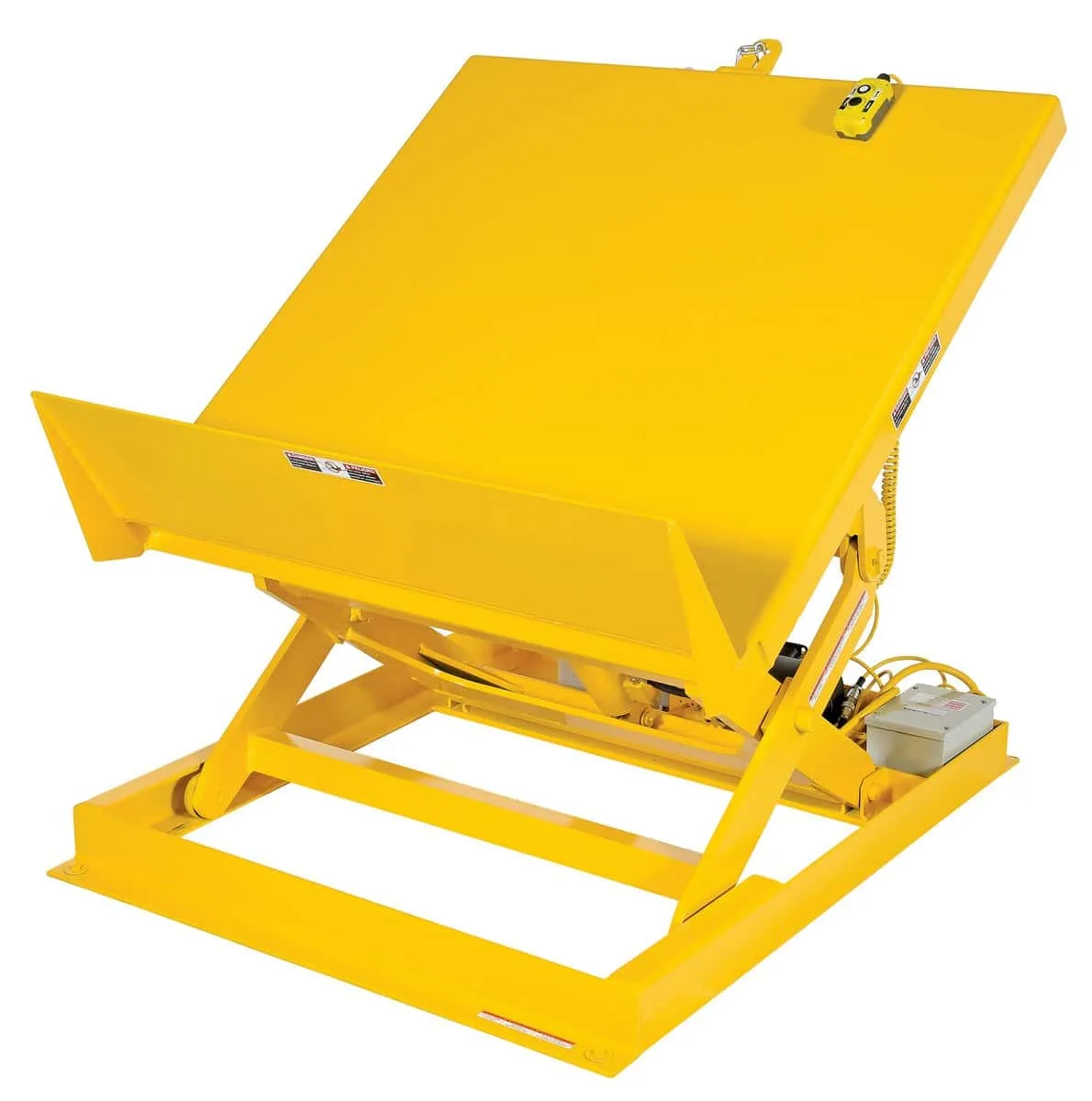

Vestil ULTT-3648-4-YEL115-1 ERGO LIFT/TILT TABLE 4K 115V/PH 1 36X48

The Vestil ULTT-3648-4-YEL115-1 allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers.

SKU: ULTT-3648-4-YEL115-1 Categories: ,

$5,398.28

SlimCD Payment Icon Image

Product Specifications

Weight 861 lbs
Shipping Dimensions 64 × 36 × 26 in
Lead Time 50 Days
Lead Time Tier 1 50 Days
Lead Time Tier 2 CALL Days
Lead Time Tier 3 Days
Quantity Tier 1 1-2
Quantity Tier 2 3-
Load Capacity (lbs.) 4000
Cylinders 2
Max Tilt (degrees) 44
Lowered Height (in.) 10
Raised Height (in.) 24
Lip Height (in.) 12
Motor Horsepower 2
Voltage/Phase 115/1
Hand Control Voltage 24
Platform Width (in.) 36
Platform Length (in.) 48
Brand
Power Type Electric

The Lift & Tilt Workstation Table allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers. The internal power unit includes electric motor, hydraulic pump, and control box. It includes a two-button hand held pendent control with optional voltages available. The welded steel construction has a yellow painted finish.

  • Ergonomic design reduces fatigue and back injuries increasing productivity
  • Welded steel construction provides long lasting rugged use
  • 44° tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
