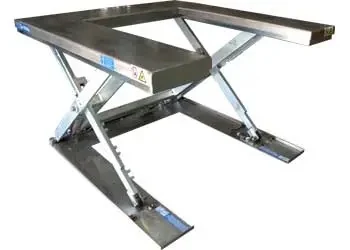

Lift Products Stainless Steel Lift Table, 56" x 45" platform, foot controls, 2200 lb capacity

The "U" shaped low profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a 21" wide manual or electric pallet truck without the need for a loading ramp. The stainless steel galvanized Guardian U-Lift tables have all the safety features of our low profile Guardian Series lift tables with these additional features: • stainless steel platform & base • cold galvanized scissor frame assembly • stainless steel pins • steel-it epoxy cylinders • ip55 electrical connections • remote power unit (rpu)

The Lift Products Stainless Steel Lift Table, 56" x 45" platform, foot controls, 2200 lb capacity is built by Lift Products in Coatesville, Pennsylvania and sold here at the manufacturer's published price.

Standard features

• Load and unload pallets without the need for a loading ramp
• Meets and exceeds both U.S. (ANSI) and EU safety standards
• Upper platform fitted with safety perimeter which prevents descent on contact
• Low-tension (24V) control box with up-down buttons
• Electric circuit reset button in case the safety perimeter is actuated
• External power pack equipped with a relief valve against overloading
• Compensated flow valve for controlling lowering speed
• External power pack is supplied with 8' long hoses
• Upper limit switch
• Designed for use with a 21" wide pallet jack
• 115 voltage single phase standard, 230/460 voltage three phase available
• Single acting cylinders with drainage system
• Check valve to stop the lift table lowering in case of hose burst
• Safety clearance between scissors to prevent trapping during operations

Shipping

Ships factory-direct from Coatesville, PA by LTL freight to commercial addresses only (no residential delivery). Knocked-down units ship on a pallet and assemble with basic hand tools; factory-setup units ship fully assembled and require a dock or liftgate. Dry van, fully enclosed trailers only.
