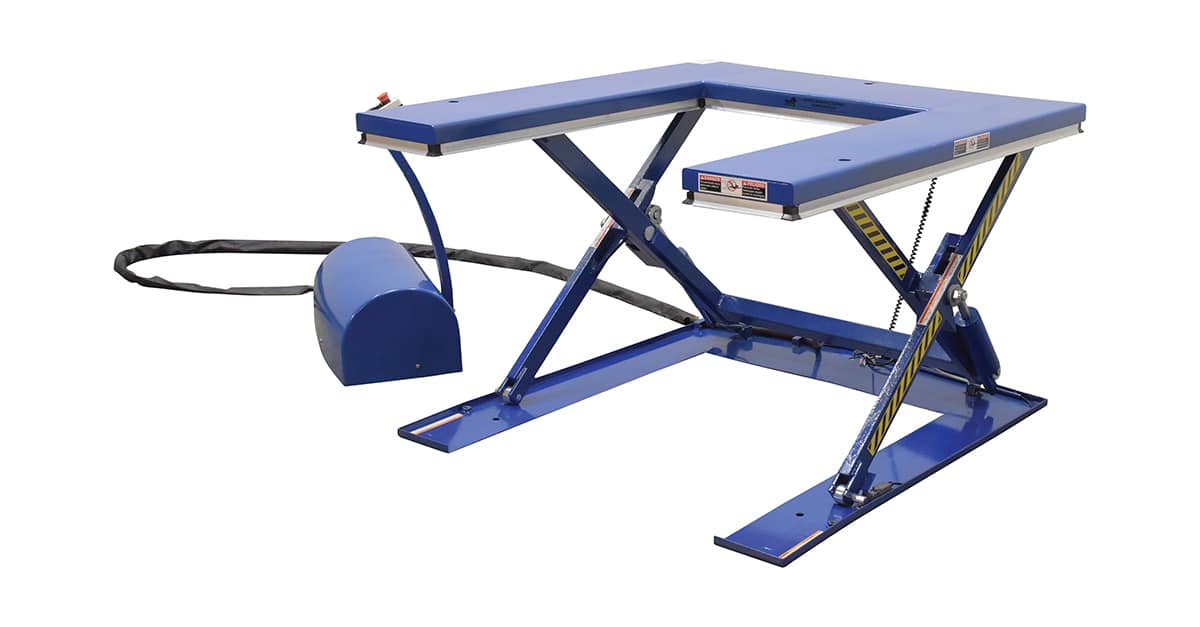

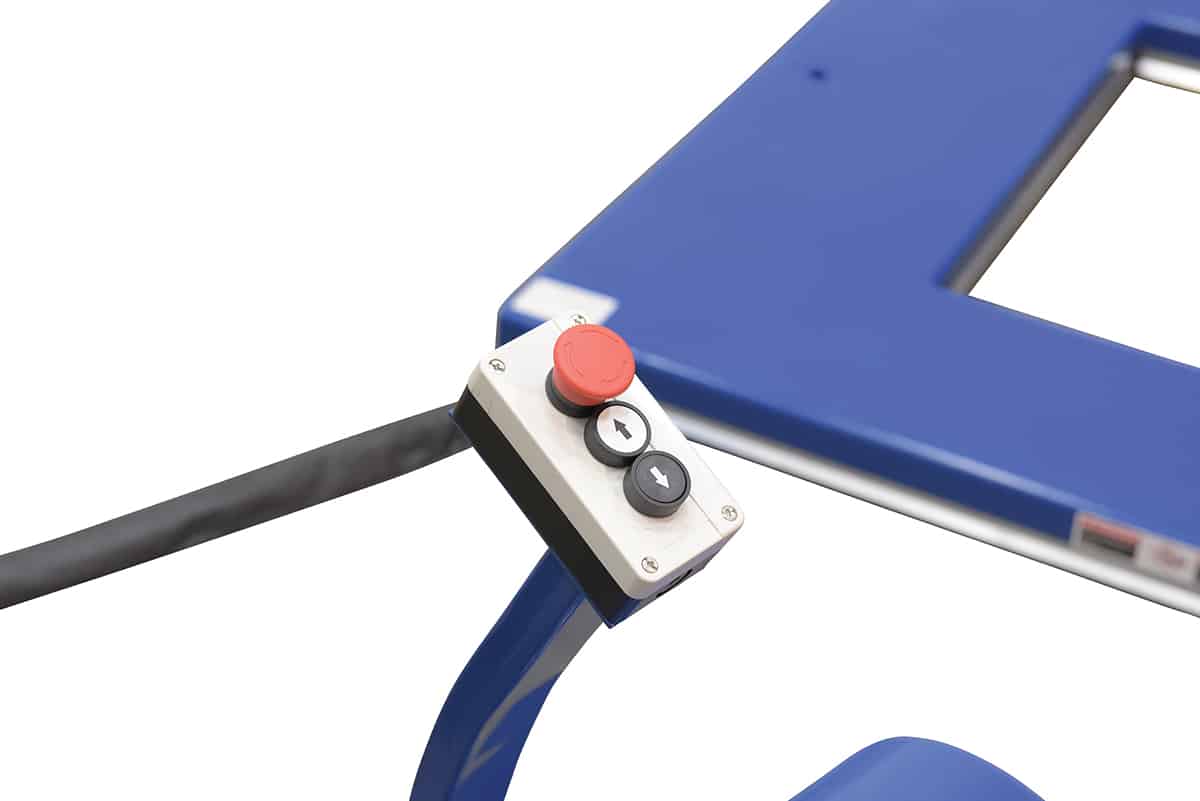

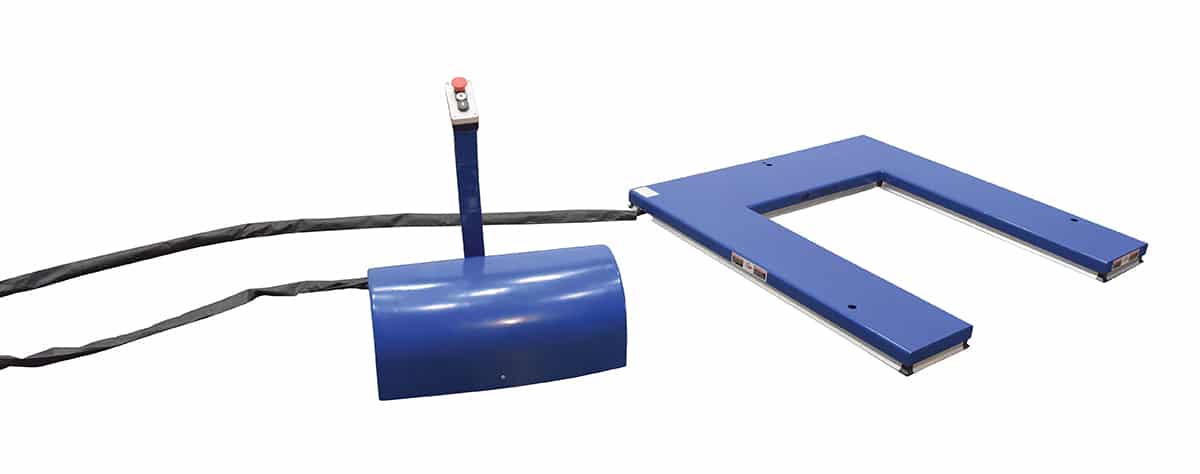

The Low Profile Electric Lift Tables with the unique, steel constructed, U design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The UP and DOWN push button raises and lowers the unit and is located on the control box. Safety features include: toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons. When using a pallet truck in conjunction with model, only open bottom pallets are to be used.
| Item Number | EHU-2 |
|---|---|
| Manufacturer Part # | EHU-2 |
| Brand | |
| Weight | 524 lb |
| Dimensions (LΓWΓH) | 55.75β³ Γ 52.5β³ Γ 3.5β³ |
| Lead Time | 3 days for 1β1 units Β· 12 days for 2β3 units Β· 20 days for 4+ units |
| Load Capacity (lbs.) | 2000 |
| Raised Height (in.) | 33-1/2 |
| Voltage/Phase | 115/single |
| Control Box Voltage | 24 |
| Deck Inside Width (in.) | 29-3/4 |
| Deck Inside Length (in.) | 41-1/4 |
| Remote Unit Size (in.) | 14-3/4 |
| Lift Speed (sec) | 16.8 |
| Horsepower | 1.5 |
| Power Type | Electric |
| Capacity (lbs) | 2000 |
| Material | Steel |
| Color | Blue |
| Freight Class | 92.5 |
| Country of Origin | CN |
| Warranty | 1 Year (Limited - Parts) |
No reviews yet β be the first to review this product.
Manufacturer-verified options and add-ons for this model. Factory installed options are built onto your unit at the factory β order together.

Vestil Factory Installed Double Acting Rotary Air/Oil Powered Handheld Push Button Control

Vestil Factory Installed Lift And Tilt Rotary Air/Oil Powered Wall Mounted Push Button Control

Vestil Factory Installed Lift-Hold-Lower Rotary Air/Oil Powered Handheld Push Button Control

Vestil Factory Installed Remotely Locatable Power Unit Assembly For 2 Horse Power Or Less

Vestil Factory Installed Steel Anti-Skid Tread Plate 4-Way Deck For Electric Hydraulic Scissor Lift Tables

Vestil Factory Installed Voltage Change AC Power 460 Volt Three Phase For Powered Units

Vestil Factory Installed/Mounted CA-Series Carousel Or Custom Conveyor For Scissor Lift Tables

Vestil ADDL-HH2PB Additional Handheld Two Button Control Assembly

Vestil EHU-3 U TYPE ELECTRIC LIFT TABLE 3K CAPACITY

Vestil EHE-2 Low Profile Electric Lift Table E

Vestil EHLTX-4853-2-39 LOW PROFILE ELECTRIC LIFT TABLE 53X48

Vestil EHLTX-3653-2-39 LOW PROFILE ELECTRIC LIFT TABLE 53X36

Vestil EHLTX-6060-2-39 LOW PROFILE ELECTRIC LIFT TABLE 60X60

Vestil EHLT-4860-2-43 ELECTRIC HYDRAULIC LIFT TABLE 2K 48X60

Vestil EHLT-3072-2-43 ELECTRIC HYDRAULIC LIFT TABLE 2K 30X72

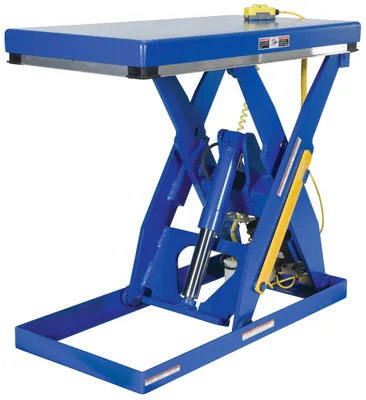

Vestil EHLT-2448-2-43 ELECTRIC HYDRAULIC LIFT TABLE 2K 24X48
