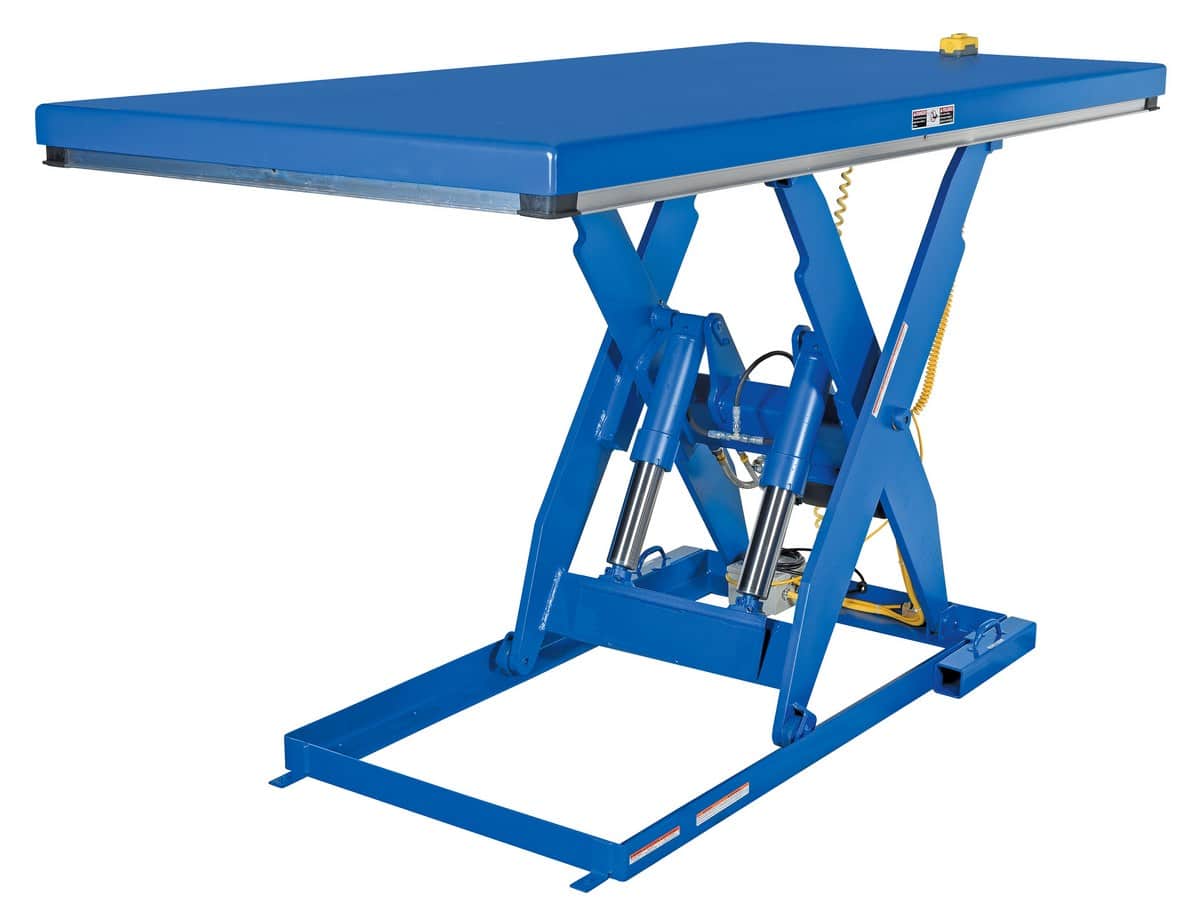

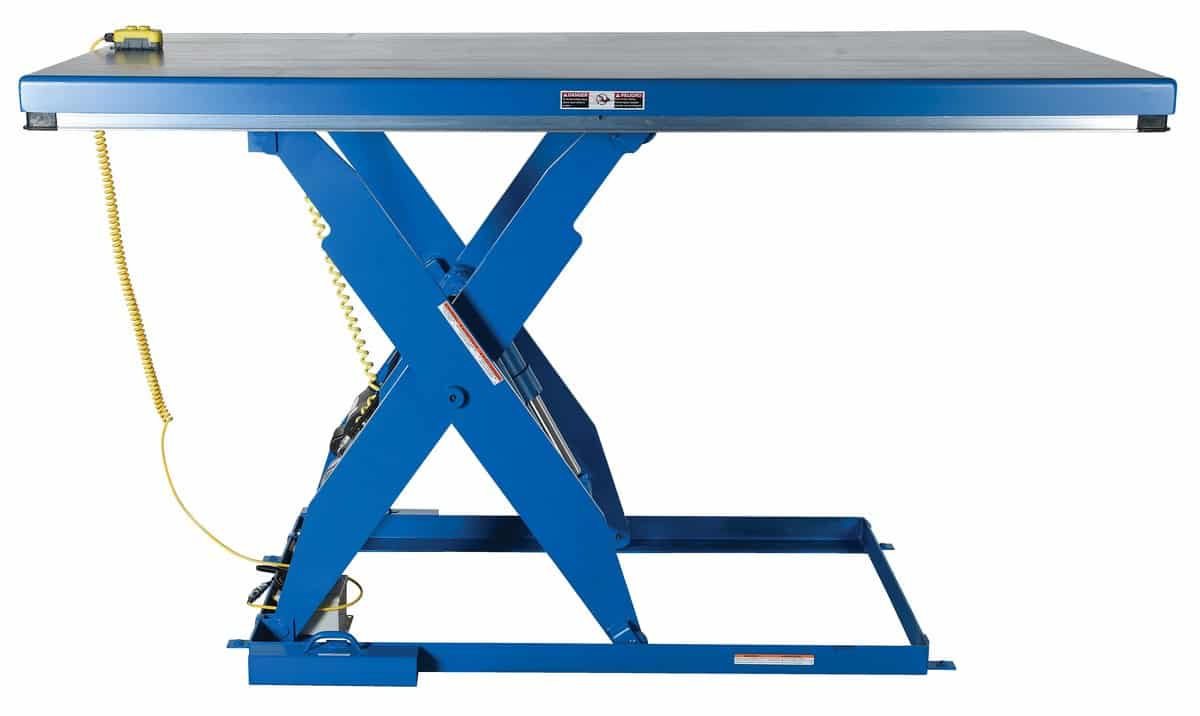

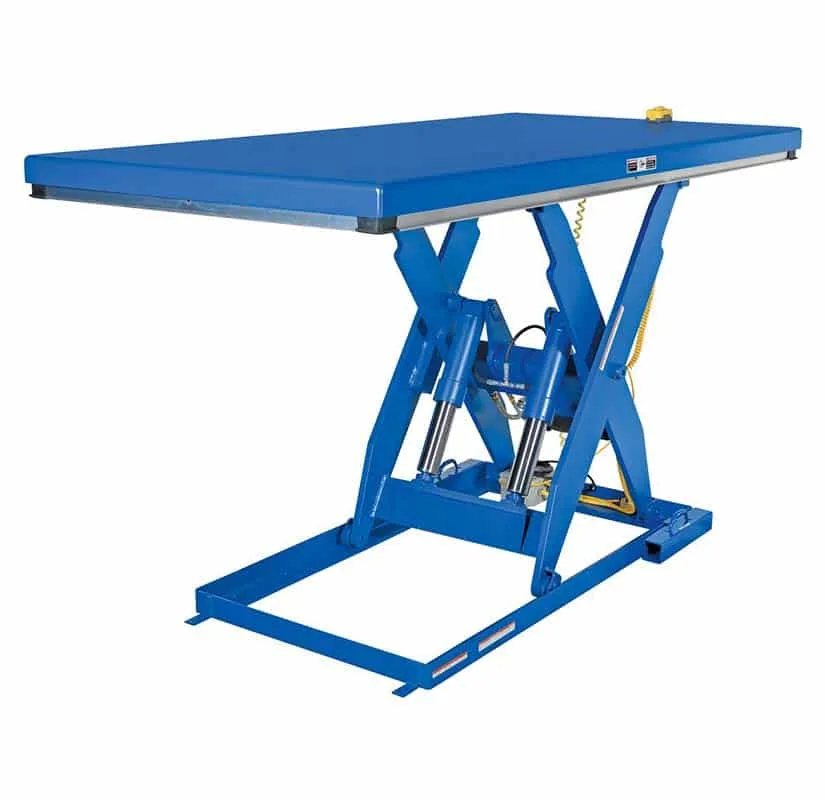

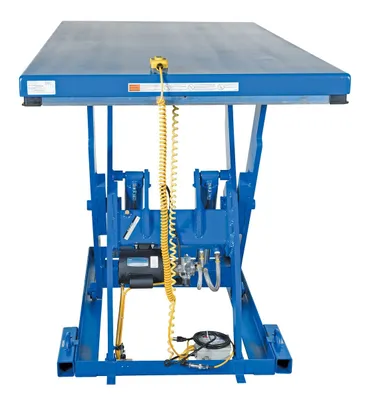

The Electric Hydraulic Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: patented pinch point perimeter toe guard to protect pinch points while lowering of the table, fused push button control, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is a fully enclosed with optional voltages available. Contact factory if platform dimensions are crucial.
- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
- Displacement-style hydraulic cylinders offer maximum strength
- Welded steel construction provides reliable heavy-duty use
