Vestil Manufacturing Corporation is an industry leader in the production and distribution of material handling equipment. Vestil features over 1,000 different product lines, many of which are in stock and ready for immediate shipment.

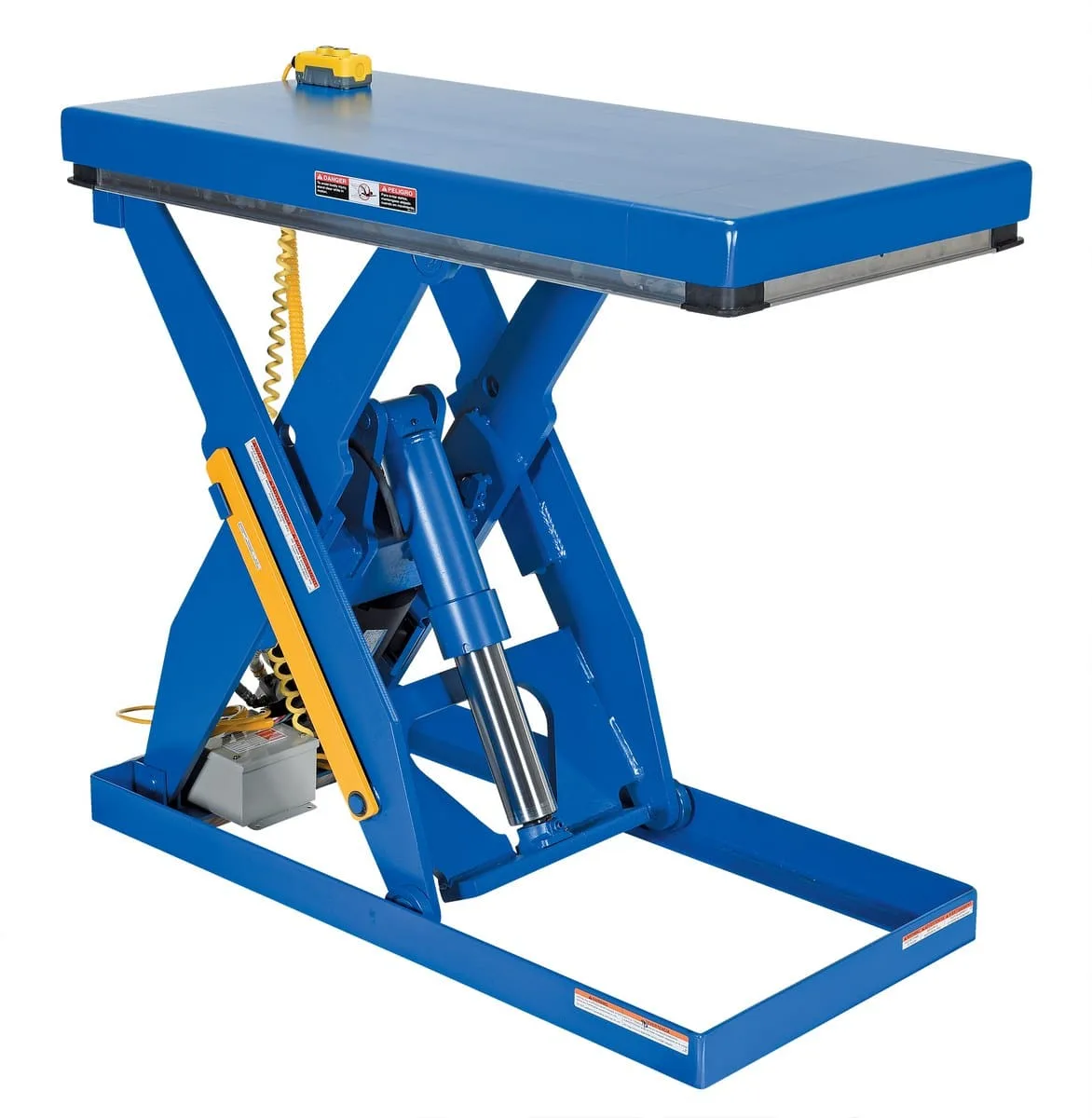

Vestil EHLT-2448-3-43-QS ELECTRIC HYDRAULIC LIFT TABLE 3K 24X48
$4,332.98
The Vestil EHLT-2448-3-43-QS is used by all types of manufacturing and warehouse facilities
| Weight | 694 lbs |
|---|---|
| Shipping Dimensions | 30 × 52 × 16 in |
| Uniform Capacity (lb.) |
3,000 |
| Travel Time (sec.) |
16 |
| Vertical Travel (in.) |
36 |
| Voltage/Phase |
460/3 |
| Hertz |
60 |
| Motor Horsepower |
2 |
| Hydraulic Component Rating (psi) |
3000 |
| Cord Length (in.) |
96 |
| Push Button Hand Control |
24V AC |
| Raised Height (in.) |
43 |
| Lowered Height (in.) |
7 |
| Platform Width/Length (in.) |
24-3/8 x 48-3/8 |
| Lead Time This is the estimated time required to process your order before it is shipped. Please allow for this time in addition to shipping duration. |
20 Days |
| Brand |
Vestil |
0
People watching this product now!
Description
The Electric Hydraulic Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: patented pinch point perimeter toe guard to protect pinch points while lowering of the table, fused push button control, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is a fully enclosed with optional voltages available. Contact factory if platform dimensions are crucial.
- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
- Displacement-style hydraulic cylinders offer maximum strength
- Welded steel construction provides reliable heavy-duty use
