Vestil Ats-10-56 Steel Alternate Tread Stair

Click to enlarge

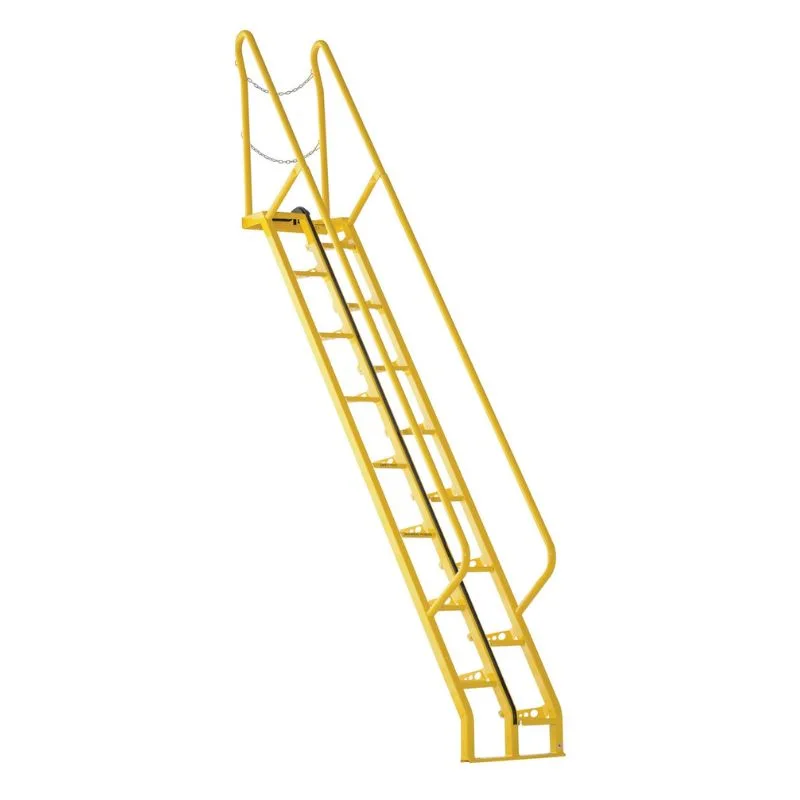

Vestil ATS-10-56 Steel Alternate Tread Stair

Name: Vestil ATS-10-56 Steel Alternate Tread Stair
Brand: Vestil
SKU: ATS-10-56
Price: 2192.73 USD
Availability: InStock

The ATS-10-56 by materialhandling.com offers a shorter span than traditional steps. Features handrail on each side of unit, dual safety chain at the top of the stair and formed steel steps with raised surfaces for better traction.

SKU: ATS-10-56 Categories: Ladders, Ship Ladder

$2,192.73

Add to wishlist

Compare

Product Specifications

Weight	312 lbs
Shipping Dimensions	89.75 × 23.5 × 162.375 in
Lead Time	30 Days
Lead Time Tier 1	30 Days
Lead Time Tier 2	CALL Days
Lead Time Tier 3	Days
Quantity Tier 1	1-2
Quantity Tier 2	3-
Load Capacity (lbs.)	350
Step Qty	16
Top Step Height (in.)	120
Step Angle (degrees)	56
Safety Chain (in.)	3/16
Top Step Depth (in.)	9-3/4
Top Step Width (in.)	23-5/8
Step Depth (in.)	10-1/2
Step Width (in.)	9-1/8
Step Height Spacing (in.)	7-1/2
Handrail Height (in.)	18-5/8
OSHA	29 Cfr 1910.25(e`)
Brand	Vestil

The Vestil ATS-10-56 Steel Alternate Tread Stair design offers a shorter span than traditional steps. Features handrail on each side of unit, dual safety chain at the top of the stair and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt-on handrails.
