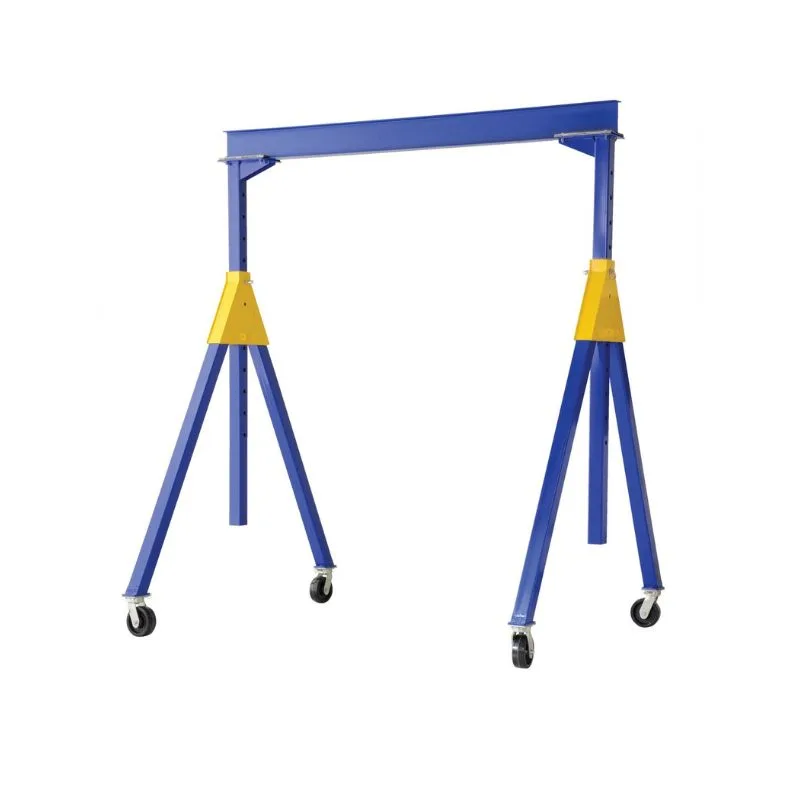

Vestil AHSN-4-15-10 Steel Knock-Down Adjustable Height Gantry Crane with Glass Filled Nylon Casters

Vestil Item #AHSN-4-15-10 · MFR #AHSN-4-15-10
Quick Answer: The Vestil AHSN-4-15-10 Steel Knock-Down Adjustable Height Gantry Crane with Glass Filled Nylon Casters is a gantry crane with 4000 load capacity and 8-1/8 i beam height. Priced at $3,047.57.
  • The Vestil AHSN-4-15-10 Steel Knock-Down Adjustable Height Gantry Crane with Glass Filled Nylon Casters is designed for transporting and positioning materials along the beams length.
  • The solid steel construction will provide years of service.
  • Unit comes standard four (4) position locking swivel casters with roller bearings.
  • Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right.
  • There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating.
Brand
Vestil
Condition
New
Weight
878 lb
Dimensions
179.75″L × 67.8125″W × 128.5″H
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (855) 719-1415 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Vestil AHSN-4-15-10 Steel Knock-Down Adjustable Height Gantry Crane with Glass Filled Nylon Casters is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Assembly is required.

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications

Specifications

Item NumberAHSN-4-15-10
Manufacturer Part #AHSN-4-15-10
Brand Vestil
Weight878 lb
Dimensions (L×W×H)179.75″ × 67.8125″ × 128.5″
Lead Time25 days for 1–6 units · call for 7+ units
Load Capacity (lbs.)4000
I Beam Length (ft.)15
I Beam Height (in.)8-1/8
I Beam Flange Width (in.)4
I Beam Usable Height (in.)78 to 120
Base Width (in.)67-13/16
Caster StyleSwivel (4) Position Locking Casters
Caster MaterialGlass Filled Nylon
Usable Travel Distance (in.)149-3/4
StyleKnock-Down
Capacity (lbs)4000
MaterialSteel
ColorBlue
Freight Class77.5
Country of OriginUS
Warranty1 Year (Limited - Parts)
